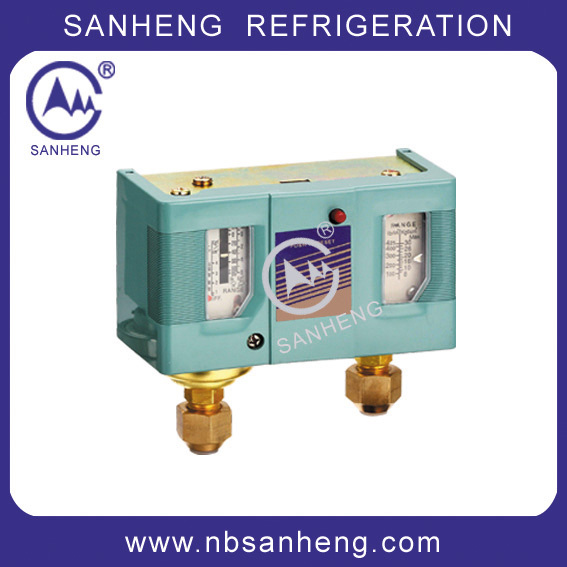

Best Price Dual Pressure Switch / Dual Pressure Control

Name: Best Price Dual Pressure Switch / Dual Pressure Control
Brand: all-electronics-online.com
SKU: 685754555
Availability: InStock
Rating: 4.3 (22 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SHP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Current:	0.75
Max. Voltage:	AC250V
Max. Working Pressure:	6 Bar

Product Description

For use with fluorinated refrigerants as well as with air, liquid, oil
Allowable fluid temp: -45º C~+120º C
Concentrate pressure control of low pressure side and over-pressure protection of high pressure side into one
Beside auto reset, high pressure manual reset and high & low pressure are also available
Flexible mounting plate suits various kind applications
Ambient temperature: -20º C~70º C

Packaging & Delivery
Packaging Details: Individual packing, 40PCS/CTN
Delivery Detail: 20-25days
Specifications

Good Quality Single Pressure Controls With Auto Reset P530D
1. Refrigeration pressure switch
2. Type: Pressure switch/controller

Rated Voltage (V) Rated Amps (A)		Power Factor (cosφ )	125V /250V AC
Non-Inductive Current		1	12
Inductive Current	Full Load	0.75	12
Inductive Current	Instantaneous	0.45	72

Specification

Model	Pressure	Adjustable Range (bar)		Switch differential (bar)		Factory Setting (bar)		Max. Working Pressure(bar)
Model	Pressure	Min	Max	Min	Max	OFF	ON	Max. Working Pressure(bar)
SHP-306	Low	-0.5	6	0.6	4	3	2	16
SHP-306	High	8	30	Fixed 3-5		20	15	33
SHP-306HM	Low	-0.5	6	0.6	4	3	2	16
SHP-306HM	High	8	30	≤ 4		20	Manual Reset	33
SHP-606	Low	-0.5	6	0.6	4	3	2	16
SHP-606	High	8	30	Fixed 3-5		20	15	33
SHP-606HM	Low	-0.5	6	0.6	4	3	2	16
SHP-606HM	High	8	30	≤ 4		2.0	Manual Reset	33
SHP-606HLM	Low	-0.5	6	≤ 2		3	Manual Reset	16
SHP-606HLM	High	8	30	≤ 4		2.0	Manual Reset	33

Ningbo Sanheng Refrigeration Control Co., Ltd. is located at Xikou Industrial Zone, Ningbo City, Zhejiang Province. It is specializes in developing and manufacturing of refrigeration unit, refrigerated air dryer, Refrigeration Parts, Air Conditioner Parts and Auto A/C Parts, like refrigeration solenoid valves, thermal expansion valves, manifold gauge set, filter drier, ball valve, many kinds of expansion valve for Auto A/C and so on.

After decades of development, we have a profeeional refrigeration technology team with wealth of practical experience, self-developed special-purpose welding lines and unique testing equipment and advanced injection technologies. Meanwhile, we focus on improving the quality and stability of product, keep on investing in the introduction of various high-tech equipment, now we have a complete set of production equipment, such as high-precision CNC lathes, Automated assembly lines and so on. They help us to strictly control product quality and stability. Our company has passed ISO9001-2000 certificate and CE certificate.

Sanheng Company relies on the "Sanheng"spirit, i. e. "Quality Eternal, Service Eternal, and Prestige Eternal". We believe that we will make great contribution to refrigeration industry.
