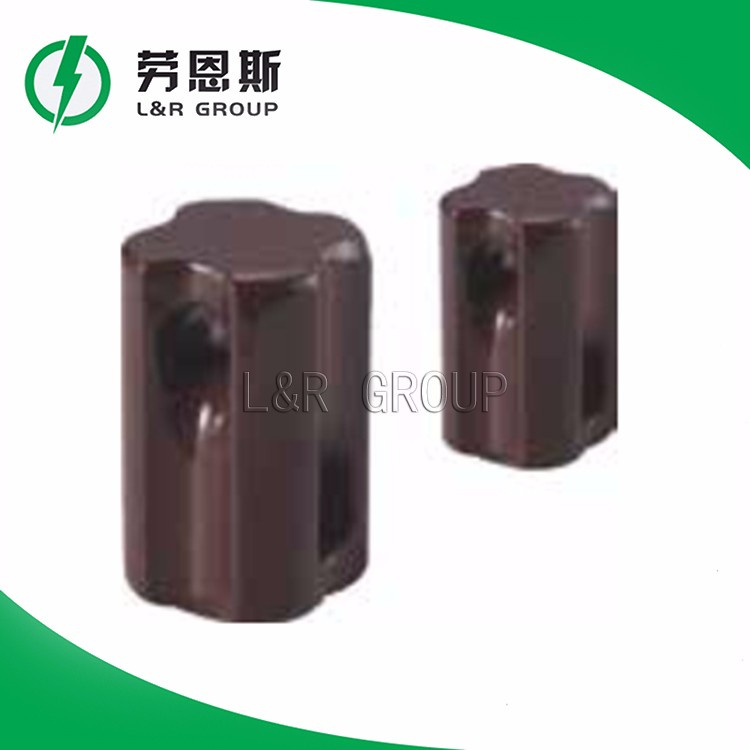

Best Price of Porcelain material Shackle Insulator

Name: Best Price of Porcelain material Shackle Insulator
Brand: all-electronics-online.com
SKU: 810010125
Availability: InStock
Rating: 4.6 (60 reviews)

Price:	US $ 1-100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	52-2
Application:	High-voltage
Material:	Porcelain
Structure:	Shackle Insulator
Type:	B Type Insulator

Product Description

Overview
Specifications

Place of Origin:Zhejiang, China (Mainland) Brand Name:L&R
Model Number:porcelain disc insulator   Type:COMPOSITE
Product Name:porcelain disc insulator   Color:brown
Certificate:ISO9001,CCT Application:Power distribution equipment
Material:Ceramics   Standard:IEC, BS, ANSI

Packaging & Delivery

Packaging Details:1 SET DROP OUT FUSE/WOODEN CARTON
Delivery Detail:3-5 days for small amount,10-20 days for large amount

Product Description

What can we do for you?

1) Good quality guarantee (2 years).

2) Competitive Price (Factory direct price).

3) Agent service in all the world.

4) On time delivery .

5) We offer sample for free.

6) Professional Technology .

7) Quality Control through the whole Manufacturing process.

a. Check the material before the production .

b. Have the random inspection during the production .

c. Make the 100% inspection before the shipment.

Basic data

Fig			1	2	3	4	3	4	5	4
Class ANSI			52-1	52-2	52-3	52-4	52-5	52-6	52-9	52-10
Main dimensions	D		165	190.5	254	254	254	254	114	2794
Main dimensions	H		139.7	146	146	146	146	146	160	165
Creepage distance(mm)			178	210	292	292	279	279	171	279
Power-frequency puncture voltage(KV)			80	90	110	110	110	110	80	110
Average flashover voltage	Power- frequency	Dry	60	65	80	80	80	80	60	80
	Power- frequency	Wet	30	35	50	50	50	50	30	50
	Critical-impulse 15x40μs wave	Positive	100	115	125	125	125	125	90	125
	Critical-impulse 15x40μs wave	Negative	100	115	130	130	130	130	100	130
Racfo influence voltage data	Test voltage to ground (KV)		7.5	7.5	10	10	10	10	7.5	10
Racfo influence voltage data	Macimum riv at 1000khz (μV)		50	50	50	50	50	50	50	50
Electromechanical failing load(kn)			44	67	67	67	111	111	44	160
Mechanical pressure strength(n.m)			5	5.5	5.5	6	7	7	5	10
Timeload test (kn)			27	44	44	44	67	67	27	107

Zhejiang Lawrence Electric Co., Ltd (referred as L&R) is located in Zhejiang China. It is composed by some branch companies, we also invested some domestic and foreign EPC projects.

L&R has possessed one of the major suppliers in the power and electrical fields for electrical

Projects in the world. Almost all products manufactured by the L&R members have been certified

By KEMA, CE, SGS and CNAS approved Lab.

L&R have been supplying Zinc Oxide Varistors, Surge Arresters, insulators, Fuse Cutouts, Air

Break switch, Load break switch, Vacuum Circuit Breaker, Isolators, Transformers, Switchgear,

Earth rods, Stay Rods, Pole Make Off, Guy grip, stay wire, Crossarm, clamp, bolts, Line hardware

And so on. Our member companies are required to have a long term proven track record of meeting contract

Obligations, superior quality, current technology and state-of-the-art manufacturing facilities.

Over a period of 10 years, our business has extended to South America, Middle East, Southeast

Asia, Africa, and other regions, and we had our sale agent and 4S maintenance company in some countries. To achieve the strategic objective of development, we are seeking for partners

For our sale agent and maintenance company in all the worldwide.
