| Prod Model: |
BZP-20KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Apply For: |
Electrical Equipment |
| Output Wave Form: |
Pure Sine Wave |
| Two Start Mode: |
Reduction Voltage Start and Variable Frequency Sta |
| RS232 Or 485: |
Optional |
| Display: |
LCD |
| Frequency: |
Can Adjustable |
| Power: |
20kw |
| Phase: |
Three Phase |
| Type: |
Standby |
| Protection: |
Overvoltage |
| Brand: |
Bangzhao or OEM |
Product Description

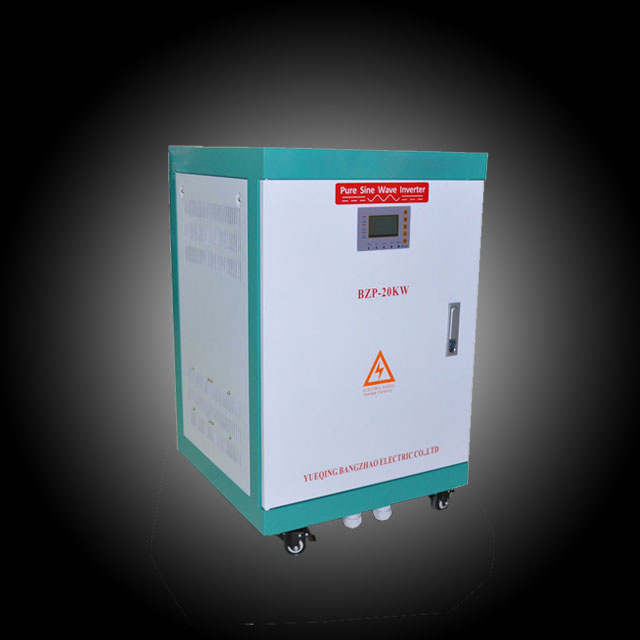

Best Price off Grid Home Voltage Input to 3-Phase Voltage Inverter
Off-Grid Pure Sine Wave InverterOur BZP series Off Grid Pure sine wave inverter is one of the most advanced DC to AC conversion products in the world, it is suitable use for areas without electricity, vehicles, ships, solar energy, wind turbine and other renewable energy systems and etc, can supply power and provide guarantee effectively for the areas with traffic inconveniences, in the mountains, pastoral, border, island and other areas without electricity. It has the main advantages of high quality sine wave AC output, microcomputer control, humanness design, and it is high efficiency and low no-load loss, and no pollution. The inverter can also supply AC power to all kinds of electric equipment, air conditioners, electric motors, refrigerators, fluorescent lights, televisions, electric fans and other industrial power supply.
- PV Off-grid Solar Power System
PV Off-grid solar power generation system including solar panel array, solar charge controller, storage battery, Off-grid inverter, etc. In the sunshine, the solar panel convert the solar energy to DC power and charge the battery group by the charge controller. Then the off grid inverter convert the DC power into AC power for power supply the AC load.

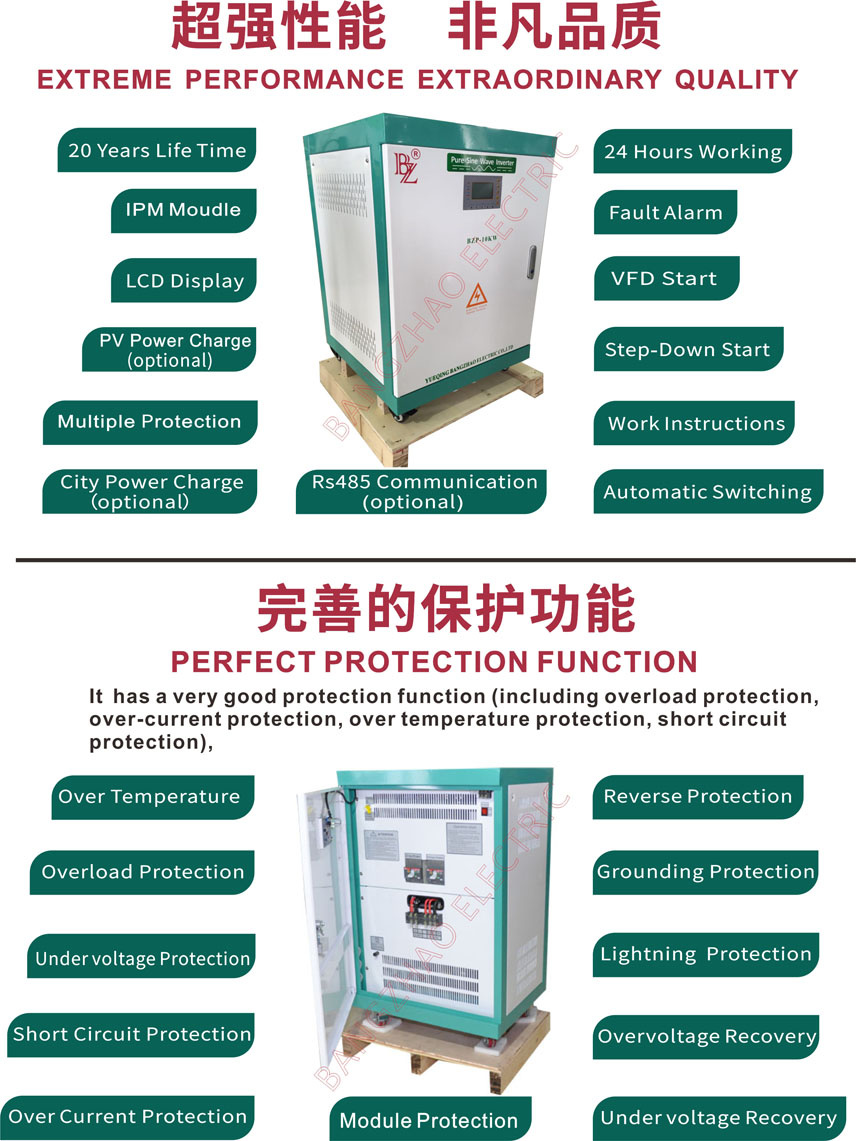

- Using the fifth generation efficient IPM intelligent module from Japanese Mitsubishi, high efficiency and stable performance. It with powerful protection function, the protection for short circuit, over load, over temperature is more safe and reliable. It's service life can up to 15 years or more.
- Intelligentized, modularized, simple structure design with powerful function.
- Two kinds of start mode: Step-down Voltage Start and Variable Frequency Start. Customers can set start mode according to the type of their load. This function is very convenient for users and also reduce frequency converter's usage, which reduced the cost of equipment investment, easy to connect wires and control.
- The output frequency can be setting via LCD panel, it's very convenient for customer.
- The output voltage can be set between -40 % to +20 % of rated voltage. And the output voltage is very accuracy ±1%.
- The DC input voltage range can be set. Over-voltage point, under-voltage point, over-voltage recovery point, under-voltage recovery point all can be setting via the LCD panel.
- Pure sine wave output. With good dynamic response less than 50MS, waveform distortion rate smaller, higher conversion efficiency and stable output voltage.
- Low Frequency Transformer, which ensures that inverter has high efficiency.
- High conversion efficiency, Max. Efficiency≥97%
- Adopts black pure aluminum radiator, which confirms the best radiating performance.
- Powerful data display function. LCD can display the DC input voltage, output frequency, phase voltage, phase current, AC bypass input voltage, output power KWH, time and date, temperature, fault code display.
- Wide input voltage can be set according to customer's requirement. Input voltage range can be selected from 100-400V or 300-800V.
- Wide input voltage can work without battery and solar charge controller,save more cost and With MPPT wide voltage input function, maximum use of solar power
- European CE (EMC, LVD) Certificate and accredited by Australian CEC, ERAC energy network.
- Optional function:RS485 remote monitoring,AC bypass input,built in solar charge controller or AC to DC battery charger.
| Model | BZP-20KW | BZP-25KW |
| Isolation mode | Low Frequency Transformer |
| DC Input | Rated voltage (Vdc) | 220V | 240V | 240V |
| Rated current(A) | 91A | 83A | 104A |
| AC Output | Rated output power | 20KW | 25KW |
| Output waveform | Pure Sine Wave |
| Rated Voltage | 220V±3% | 380VAC±3% | 220V±3% | 380VAC±3% |
| Phases | Single phase | 3 phase 4 wire | Single phase | 3 phase 4 wire |
| Rated current(A) | 91A | 31A (phase current) | 114A | 38A (phase current) |
| Frequency | 50Hz or 60Hz |
| Rated output voltage range (V) | 110/120/220/230/240/380/400/415VAC optional |
| Power Factor(PF) | 1 |
| Overload Ability | 150%, 5 seconds |
| Efficiency | >93% |
| Waveform distortion rate (THD) | <3%(Linear load) |
| Dynamic Response (0 to 100% load) | 5%,≤50ms |
| Display | LCD |
| Running mode | Working continuously |
| Electrical insulation properties | 2000Vac, 1 Minute |
| Communication interface (optional) | RS485 |
| Protection Function | Protection | Input reverse polarity, under voltage, overvoltage, output over-current, short circuit, overheating etc. |
| Cooling method | Fan-cooled |
| Short-circuit protection | No automatic recovery, need to restart the machine |
| Working environment | Noise ( 1 meter) | ≤50dB |
| Degree of protection | IP20(indoor) |
| Working Altitude(m) | ≤2000 |
| Working temperature | -25~+55ºC |
| relative humidity | 0~90%,non-condensing |
| Mechanical dimension | Depth* Width * Height | 550x700x1000mm |
| Weight (Kg) | 200Kg | 230Kg |
also you can optional "dry contact control "start the generator.
1, the first normal open dry contact control generator start, when the inverter shuts off from low DC voltage,
the dry contact into normal closed status to start your generator.
2, the second normal closed dry contact, when the battery voltage recover to normal,
the inverter start to work and the normal closed dry contact disconnected, can be used to stop the generator.
In a word,we can do according to your requirements.
100-400V or 300-600V or 400-800V wide input for without battery and controller system
Q 1. What's the payment term?
A. We accept TT,Western Union,Paypal,MoneyGram.
Q 2.How's the delivery time ?
A. Is due to order quantity, usually it will take about 3-7days for sample production,
Q 3.Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or wooden case for protection.
Q 4.Would you accept to use our logo ?
A.It's no problem to do OEM.
Q 5.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs and big capacity near 500pcs.
Q 6.Where is your market?
A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 7. What kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE, SAA, G83 G59 etc .
Q8. What is the warranty period ?
A. Normally 1 year .
Q 8.How about the lifetime?
A:The life time for inverterl is 15-20years.
