Best Quality 2s LiFePO4 Battery PCB

Name: Best Quality 2s LiFePO4 Battery PCB
Brand: all-electronics-online.com
SKU: 735914215
Availability: InStock
Rating: 4.9 (89 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCM-L02S10-133(2S)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Qw
Model:	PCM-L26s60-470(26s)
Balance Current For Single Cell:	0~300mA
Charge:	20A
Discharge:	60A
Size:	L154W120T30mm
Metal Coating:	Copper
Mode Of Production:	SMT
Base Material:	FR-1
Customized:	Customized
Condition:	New

Product Description

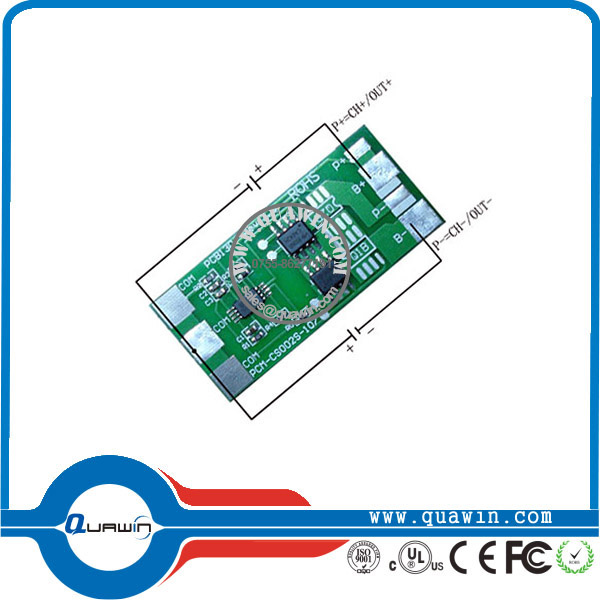

Li-ion/Li-polymer/LiFePO4 Battery Pack PCB For 2S

1	Voltage:	Charging voltage:	CC/CV: Li-ion/Li-polymer(4.2V/cell); LiFePO4(3.6V/cell)
1	Voltage:	Balance voltage for single cell	Li-ion:4.20 V±0.025V , LiFePO4:3.60V±0.025V
2	Current	Balance current for single cell	0 ~ 300mA
		Balance current for single cell	≤20μA
		Maximal continuous charging and discharging current	Charge:20A,Discharge:60A
3	Over-charge Protection	Over charge detection voltage	3.8 ~ 4.4V(can adjust)
		Over charge detection delay time	0.5~2.5S
		Over charge release voltage	3.8 ~ 4.4V(can adjust)
4	Over-discharge Protection	Over discharge detection voltage	1.9 ~ 3.1V(can adjust)
		Over discharge detection delay time	50~300mS
		Over discharge release voltage	1.9 ~ 3.1V(can adjust)
5	Over-Current Protection	Over current detection voltage	0.6V
		Over current detection current	100 ~ 500A
		Detection delay time	1~50ms
		Release condition	Cut load
6	Short Protection	Detection condition	Exterior short circuit
		Detection delay time	200-500us
		Release condition	Cut load
7	Resistance	Protection circuitry ( B- to P- )	≤2 0mΩ
8	Temperature	Operating temperature range	-40 ~ +85 degree Celsius
8	Temperature	Storage temperature range	-40 ~ +125 degree Celsius
9	Size		L154W120T30mm

Quality is our priority, win by quality" which is the origin of the our company name --Quawin.

We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.

As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.

We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.

We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.

To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
