| Prod Model: |
tk103A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Size: |
83mm*54mm*26mm |
| Frequency: |
850/900/1800/1900MHz |
| Weight: |
120g |
| Network: |
GSM/GPRS |
| Color: |
Black |
| Materials: |
Metal |
| GPS Sensitivity: |
-159dBm |
| GPS Accuracy: |
5m |
| Power: |
DC 12-24V |
| Hot Status: |
1s |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GSM/GPS/GPRS Network |
| Port Number: |
20 |
| Model: |
103 |
| Screen Size: |
No Screen |
| Chip: |
Ns1315 |
| Brand: |
Coban / Baanool |
| Certification: |
Ce FCC |
Product Description
Product Description

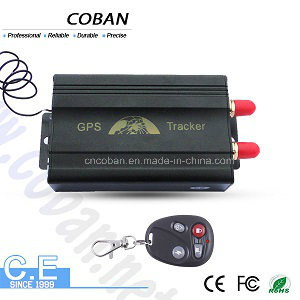

Model: TK 103A GPS Tracker
This tracker is based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.
Multiple Tracking Ways:
*Calling the gps tracker via your mobile phone,it will reply a SMS including longitude and latitude and a google map link,open this link,you can see the location on the google map.
*Real track by our own developing ios app and andriod app.
*Tracking on with CD software on PC.
*Web based online tracking system our server www.gpstrackerxy.com.
Function Description:
1.Positioning and Tracking: Through the on-line Positioning Platform or calling the gps tracker via your mobile phone,it will reply a SMS including longitude and latitude and a google map link,open this link,you can see the vehicle location on the google map.
*Get location in real street/address name, send "address+password" to the tracker,it will reply you the
SMS including phsical street/ address. For example: No.8, Guankou 2nd Rd., Nantou, Nanshan district, Shenzhen, Guangdong, china. You must set up the APN of your local GSM network for the SIM card in tracker first before using this function.
*Location Based Service.
*Remote Engine-stop and Resume in case of vehicle theft: you can control the oil and circuit via the unit by SMS in anywhere and anytime. so you can retrieve stolen vehicle,cars.
*Tracking function by timing and frequency.
*Authorized number added and deleted function.
*Support hidden alarm and monitor function.
*Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to all authorized numbers when it breaches the district.
*Door / ACC Alarm: When someone stole your car and start the ignition,you will get a SMS alert.
*Movement alert: Send SMS to the unit to start the movement alert function. When the vehicle is moving, the unit will send the movement alert to all authorized numbers.
*Over speed alarm.
*Power supply disconnection alarm.
*Low batttery alarm function
*Check the vehicle status
*Set up DOOR ALARM, ACC ALARM, SENSOR ALARM by remote control
*Alarm without GSM network service
*Less GPRS traffic
*Automatic update positions of vehicle turns
*GPS blind area alarm
Applying directions:
Vehicle fleet/logistics/Vehicle rental (12-24V)
Technology parameter:
*GPS chip: SIRF3chip
*GPS sensitivity: -159dBm
*GPS accuracy: 5m
*Time To First Fix Cold status 45s, Warm status 35s, Hot status 1s
| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | G S M/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V -24V |
| Backup battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
Item Includes:
1 * GPS tracker
1 * Microphone (1.5 meters)
1 * GSM antenna (3 meters)
1 * GPS antenna (3 meters)
1 * Relay (12V/40A to 24V/40A according to vehicles)
1 * Harness (10 Pin)
1 * User manual
1 * CD with software
optional accessories:
shock sensor/motion sensor,alarm siren
