| Prod Model: |
f24-8d |
| Product Name: |
Long Range Wireless Remote Control on off Switch |
| Protection Level: |
IP65 Long Range Remote Control on off Switch |
| Application: |
Industrial Machinery |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Voltage: |
3V |
| Battery Type: |
AA Battery |
| Material: |
Glass Fiber-Reinforced Nylon |
Product Description

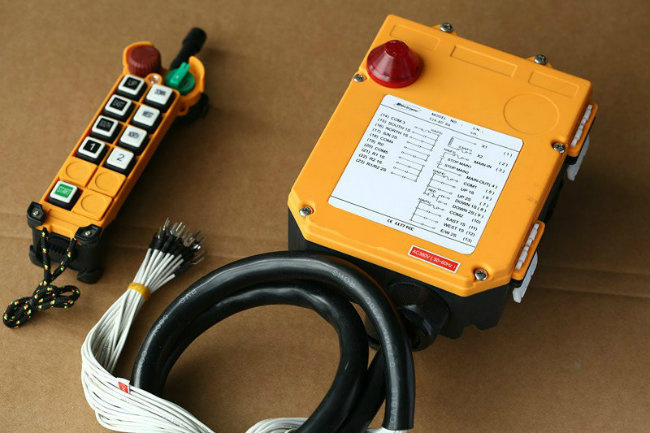

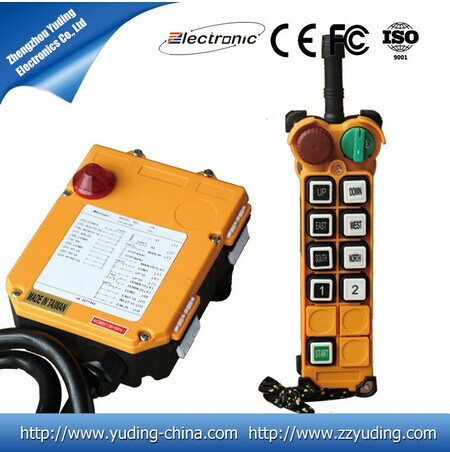

china best price industrial wireless remote control 8 button for winch f24-8d,best quality long range wireless remote control on off switch f24-8dThe industrial radio remote control operates exactly like the pendant but operates using a radio frequency instead of control cables attached to the crane ,the radio control system is comprised of two main components: the radio transmitter (handheld device) and the radio receiver( control box attached to crane or hoist) the radio control incorporates numerous safty features and allows the operator a greater range mobility than a pendant station| model no. | F24-8D |
| number of buttons | 8double speed buttons+1start button+1mushroom button |
| transmitter size | 18.8*6.4*4.8cm |
| receiver size | 21.2*16.4*7.8cm |
| protection degreen | IP65 |
| housing material | glass fiber-reinforced nylon |
| operating temperature | -35°C ~ +85°C(not take into battery into consideration) |
| security code | 43 billion |
| control distance | up to 100m (some of the products can reach to 200m) |
| frequency range | VHF:310.0325-331.165MHZ
UHF:425.5925-446.725MHZ |
| transmit power | <10dbm |
| receive sensitivity | >-110dbm |
| transmitter power | DC3V( need 2 pieces 1.5V battery , AA size) |
| receiver power | AC/DC18-65V , AC/DC65-440V |
| voltage warning | TX Red LED will flash slowly when the volts under
2.2V,unable to start TX under 1.8V. |
| fault detection | TX Red LED is flashing quickly: 1.Not in the correct way to start; 2.One of the pushbutton is jammed. TX RED LED will flash slowly: 1.Please change two new batteries. |
| security measures | if the receiver haven't receive the singal , transmitter will retransmit same singal in 1.5s , if receiver still haven receive it ,receiver power will turn off in 2s to
avoid unexpect things |
best quality long range wireless remote control on off switch f24-8d
best quality long range wireless remote control on off switch f24-8d

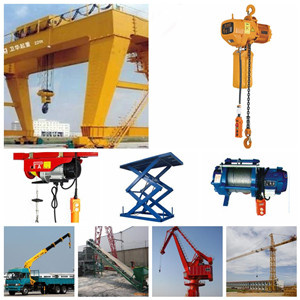

industrial raido remote control system widely used in hoist , overhead crane ,jib crane , gantry crane ,scissor lift , tower crane ,automobile machinery , paper-making and chemical industry , shipbuilding , railroad , bridge , tunnel construction etc
We have obtained CE , FCC certificate for our industrial wireless radio remote control ,ISO-9001:2008

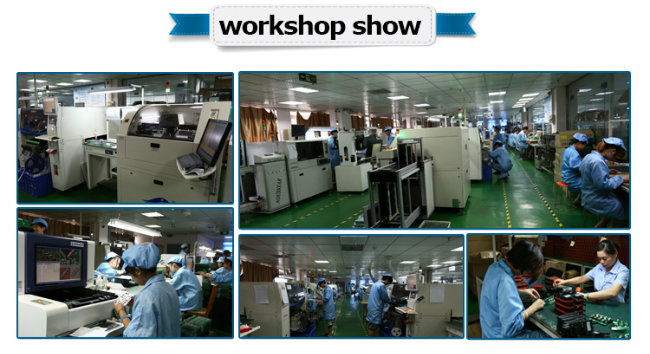

Henan Yuding electronics co.,ltd was founded in 2010 years, mainly for industrial radio remote control system such as F21 serises , F24 serises ,C-E1Q, 60 etc ,production line is more than 5000sq.m ,more than 400 employee , we has build multiple internationally leading SMT production lines , BGA production lines and DIP production lines , we have obtainer ISO9001-2008 ,CE certificate and Anti-explosion certification in 2011 , on the other side ,our company accept OEM,ODM for different mainboard ,LED ,EPC,FPC etc .
