| Prod Model: |
RG6 cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor: |
Bc/CCS |
| Conductor Od: |
1.02mm |
| Dielectric: |
4.57mm Fpe |
| 1st Shield: |
Ai Foil |
| 2ND Shield: |
Bc/Ai Braiding |
| Shielding Coverage: |
30%-95% |
| Jacket: |
6.91mm PVC/PE |
| Color: |
Any Color |
| Impendence: |
75 Ohm |
| Coaxial Cable RG6: |
Coaxial Cable |
| Certification: |
UL |
| Application: |
Submarine Cable |
| Conductor Material: |
Copper |
| Type: |
Coaxial |
| Wire Core Material: |
Bc/CCS |
| Cover Material: |
PVC/PE |
Product Description
Product Description

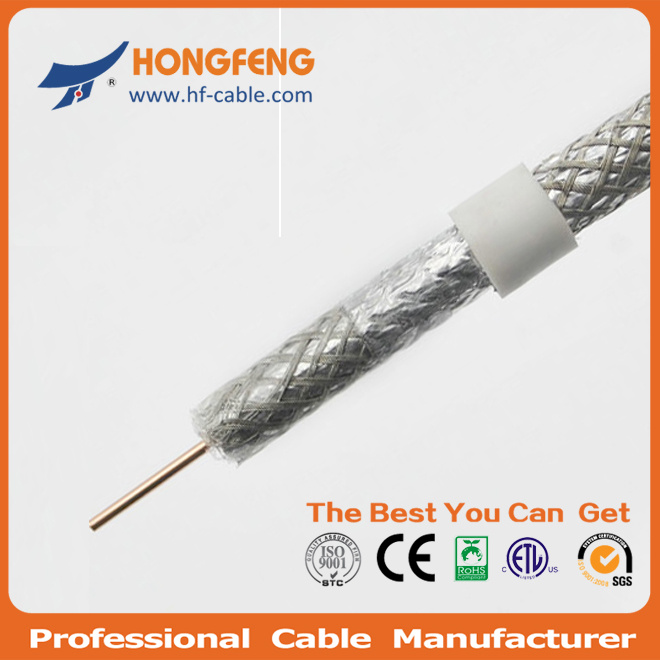

Catv coaxial cable rg6
Basic Info.
Model NO.: RF coaxial cable
Application: Local Communication Cable
Conductor Material: Copper
Type: Coaxial Cable
Cover Material: PE
Certification: CE
Jacket: PVC
Jacket Color: Black/White/Color
Impedance: 75 Ohm
Braid Shied Material: Bc, Tc, CCA, CCS, Al-Mg(60%-95%)
Inner Conductor: CCS, CCA, Cu
Inner Conductor Diameter: 0.8-1.3mm
Certificate: ISO9001, Cl2/CATV/Cm UL
Dielectric: 3.66-5.72mm
Insulation Material: Bonded/Non Bonded
Jacket Diameter: 6.1-8.08mm
Export Markets: Global
Additional Info.
Trademark: Hongfeng cable
Packing: 100m/Roll, 200m/Roll, 305m/Roll, 100yard/Roll,
Standard: Rg11 rg59 rg6
Origin: China
HS Code: 85442000
Production Capacity: 100, 000kms/Year
Product Description
1. RG11 RG59 RG6 Specifications:
1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70, 75
9) Jacket: PE or PVC
10) OEM and Customer's designation are welcome
Such as: 1.02mm B. C Conductor; Foamed PE Dielectric; Bonded Al Foil& 64/0.12mm Al braid; 6.91 PVC jacket white
2. Package:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request
DataRG59 RG59-TriRG59-Quad
Impedance(ohm)75± 375± 375± 3
Capacitance(pF/m)52± 252± 252± 2
Velocity Ratio85%85%85%
Insulation Resistance(MΩ /km)500050005000
Return Loss(dB)
1-1000MHz≥ 23dB≥ 23dB≥ 23dB
1000-3000MHz≥ 20dB≥ 20dB≥ 20dB
Attenuation[@20° C68° F]
Frequency(MHz) 5 50 200 400 800 1000 1350 1750 2150 3000
Nom Value(dB/100m) 1.7 5.2 10.2 14.8 22.5 25 30.5 33.5 37.5 46.5
Screening attenuation
1-1000MHz≥ 90dB≥ 100dB≥ 110dB

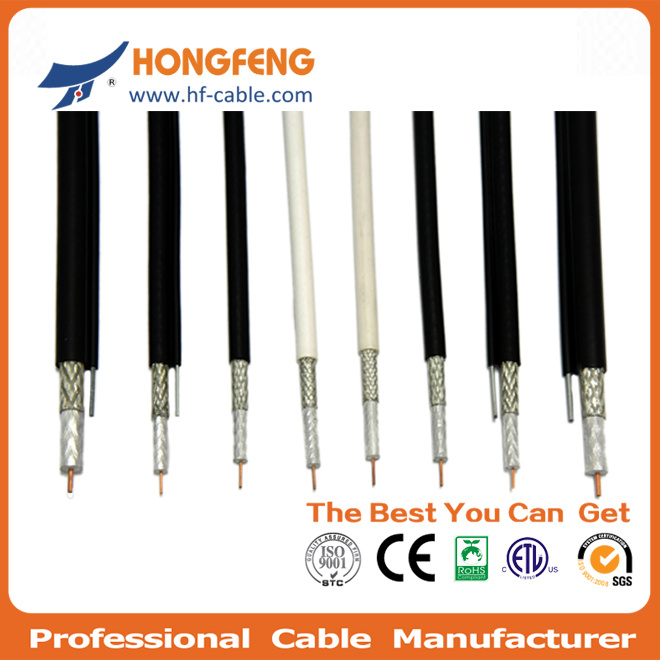

# Cables we offer:
1) 75Ohm Coaxial Cable:
RG59, RG6, RG7, RG11, etc.
2) 50Ohm Coaxial Cable:
RG58, RG142, RG174, RG178, RG213, RG214, RG316, etc.
3) MIL-C-17 Military Standard Cable:
RG59 A/U, RG59 B/U, RG6 A/U, RG11 A/U, RG58 A/U, RG58 B/U, RG58 C/U, RG213, RG214, etc.
4) Trunk Distribution Cable:
P3.412 JCA/JCAM, P3.500 JCA/JCAM, P3.565JCA/JCAM, QR320 JCA/JCAM, QR540 JCA/JCAM
5) RF Coaxial Cable:
LMR195, LMR200, LMR300, LMR400, LMR500, LMR600, 3D-FB, 5D-FB, 7D-FB, 8D-FB, 10D-FB, etc.
6) Network Cables & LAN Cable:
CAT3, UTP/FTP CAT5, UTP/FTP/SFTP CAT5e, UTP/FTP CAT6, UTP/FTP CAT6a, UTP/FTP CAT7, etc.
7) Composite Cable:
RG59+2C Siamese Cable, RG6+2C Siamese Cable, 2RG59+2RG6, 2RG6+2CAT5e, etc.
8) British Standard Coaxial Cable:
BT3002, CT100, CT125, CT165, URM57, URM67, URM70, etc.
9) Japanese Standard Coaxial Cable:
1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.
10) French Standard Coaxial Cable:
11VATC/PATC, 17VATC/PATC, 19VATC/PATC, 21VATC/PATC, 25VATC/PATC, KX6/A, KX8, etc.
11) Alarm Cable, Control Cable:
Unscreened PVC Jacketed Alarm Cable, Screened PVC Jacketed Alarm Cable
12) Optic Fiber Cable
GYXTW, GYXTC8S, GYTC8A, GYTA, GYFTY, GYTA53, GYXTC8S, GYXTS, Indoor Fiber Cable, etc.
