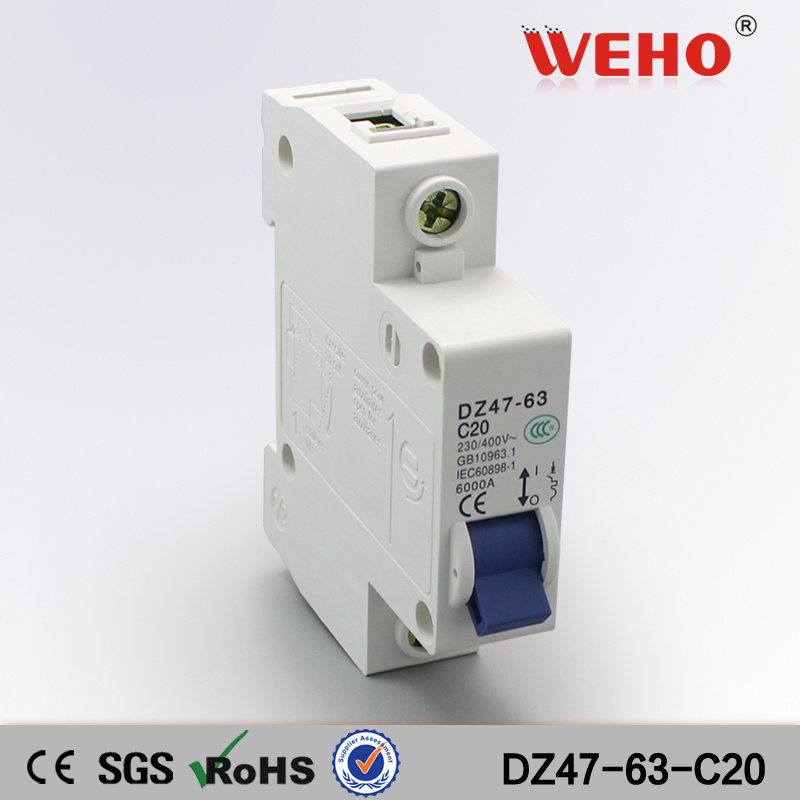

Best Sell Dz47 1p 20A MCB Mini Circuit Breaker

Name: Best Sell Dz47 1p 20A MCB Mini Circuit Breaker
Brand: all-electronics-online.com
SKU: 834333455
Availability: InStock
Rating: 4.5 (138 reviews)

Price:	US $ 0.6-0.8/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Dz47-63-20
Guarantee Period:	2 Years
DC Voltage Or AC:	Max DC1200V and Max AC 500V
Tripping Curve(B/C):	3-5in/5-10in
Easy Wiring:	Wiring in Series
Mounting:	35mm DIN Rail Breaker
Current:	1A, 3A, 5A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Polo:	1p 2p 3p
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Certification:	CE
Poles Number:	1p, 2p, 3p

Product Description

Miniature Circuit Breaker Feature:

C45N / DZ47 series circuit breaker is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system

The product is neoteric in structure, light in weight, reliable and excellent in performance

It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics

The product, with long life, is mainly used in AC 50Hz/60Hz single pole 230V or two, three, four pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case

The products comply with IEC 60898

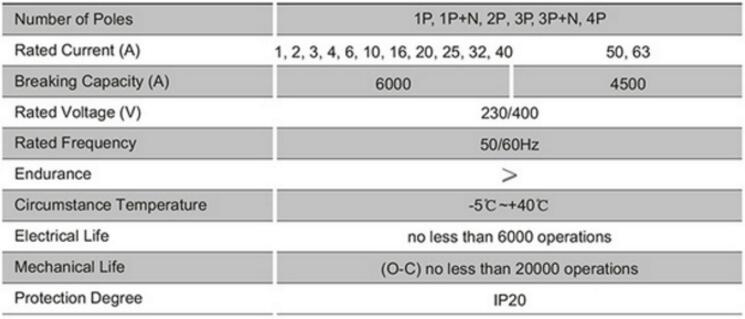

Miniature Circuit Breaker Specification:

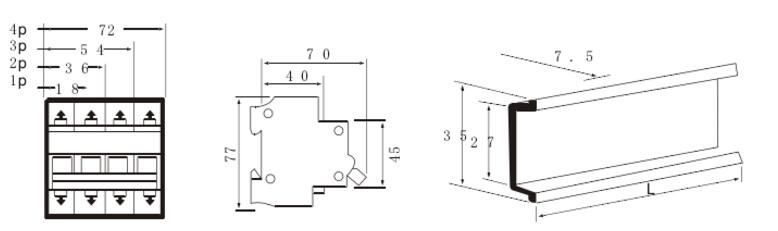

Miniature Circuit Breaker Dimensions:

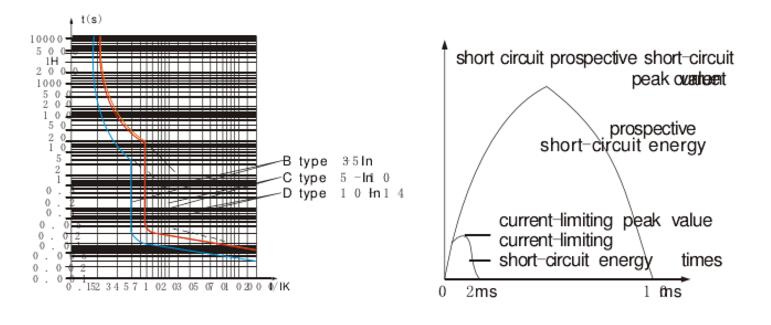

Miniature Circuit Breaker Characteristic Curve

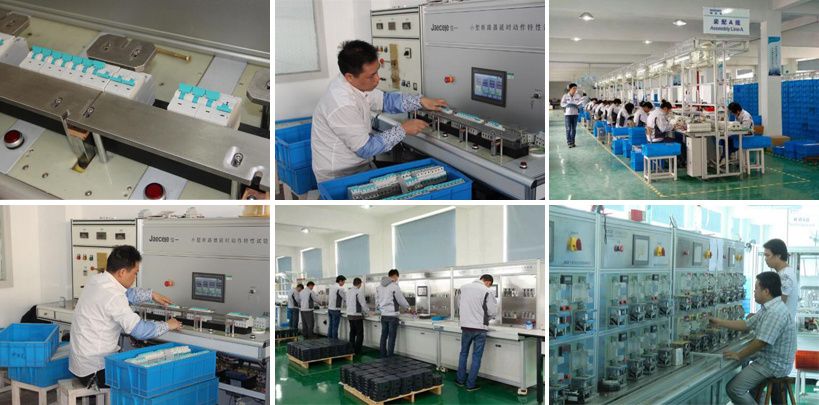

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.
