Best Seller Cjx1 Series AC Contactor

Name: Best Seller Cjx1 Series AC Contactor
Brand: all-electronics-online.com
SKU: 684101202
Availability: InStock
Rating: 4.4 (75 reviews)

Price:	US $ 2.8-3/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJX1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturers:	Yes
The Life Of The Machine:	1, 000, 000 Times
Brand Name:	Lovadon
Rated Voltage:	24V 36V 110V 117V 220V 380 V 415V
Size:	Miniature
Theory:	Electromagnetic Relay
Protective Characteristics:	Open Relay
Load:	Weak Power Relay
Action Principle:	Electronic Type

Product Description

CJX1 series AC contactors are suitable for frequency 50/60Hz, rated insulation voltage up to1000V, rated operation current 9~475A under AC-3 duty. It is mainly used for making/breakingelectric circuit at a long distance & for frequent starting/stopping & with thermal relay to COM-pose a magnetic motor starter. The product conforms to IEC60947-4-1 stardand.

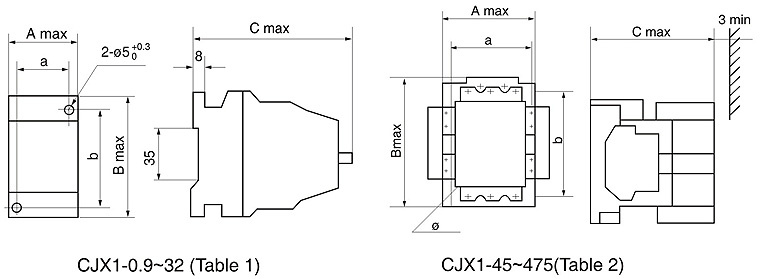

Dimension

Types of AC Magnetic Contactor 3 Phase AC Contactor (CJX1)

Types of AC Magnetic Contactor 3 Phase AC Contactor (CJX1)

1.Specifications
Type			CJX1-09	CJX1-12	CJX1-16	CJX1-22	CJX1-32	CJX1-38	CJX1-45	CJX1-63	CJX1-75
Main circuit characteristic
Rated operation voltage (Ue)		V	660
Rated insulation voltage (Ui)		V	660
Rated thermal current (Ith)		A	20	20	30	30	55	55	80	90	100
Rated operation current (Ie)	AC-3.380V	A	9	12	16	22	32	38	45	63	75
	AC-3,660V	A	6.6	8.8	12.2	12.2	18	27	27	45	63
	AC-4.380V	A	3.3	4.3	7.7	8.5	15.6	18.5	24	28	34
Max. power of 3 phase motor controlled	AC-3.220V	kW	2.2	3	4	5.5	8.5	11	15	18.5	22
Max. power of 3 phase motor controlled	AC-3.380V	kW	4	5.5	7.5	11	15	18.5	22	30	37
	AC-3.660V	kW	5.5	7.5	11	11	23	23	39	55	67
Electrical life	AC-3	10000 t	100				100	100	60	60	60
Electrical life	AC-4	10000 t	20				20	20	15	15	15
Machinical life		10000 t	1000				600	600	600	600	600
Operation frequency	AC-3	t/h	1200				600	600	600	600	300
Operation frequency	AC-4	t/h	300				300	300	300	300	200
Matching fuse type			NT00-16	NT00-20	NT00-25	NT00-32	NT00-50	NT00-63	NT00-63	NT00-80	NT00-100
Matching thermal relay type			3UA50	3UA50	3UA52	3UA52	3UA54	3UA55	3UA55	3UA58	3UA58
Wiring capacity	Section area of lead	mm2	1.5	2.5	2.5	4	6	10	10	16	25
Coil
Control power voltage (Us)	AC	V	12,24,36,48,110,127,220,380,660
Allowed control circuit voltage	Close	V	85%~110%Us
Allowed control circuit voltage	Open	V	20%~75%Us (AC),10%~75%Us (DC)
Auxiliary contact
Rated thermal current (Ith)	AC-15	V	120 240 380
Rated thermal current (Ith)	DC-13	V	125 250
Rated control capacity	AC-15	VA	360
Rated control capacity	DC-13	W	33

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
