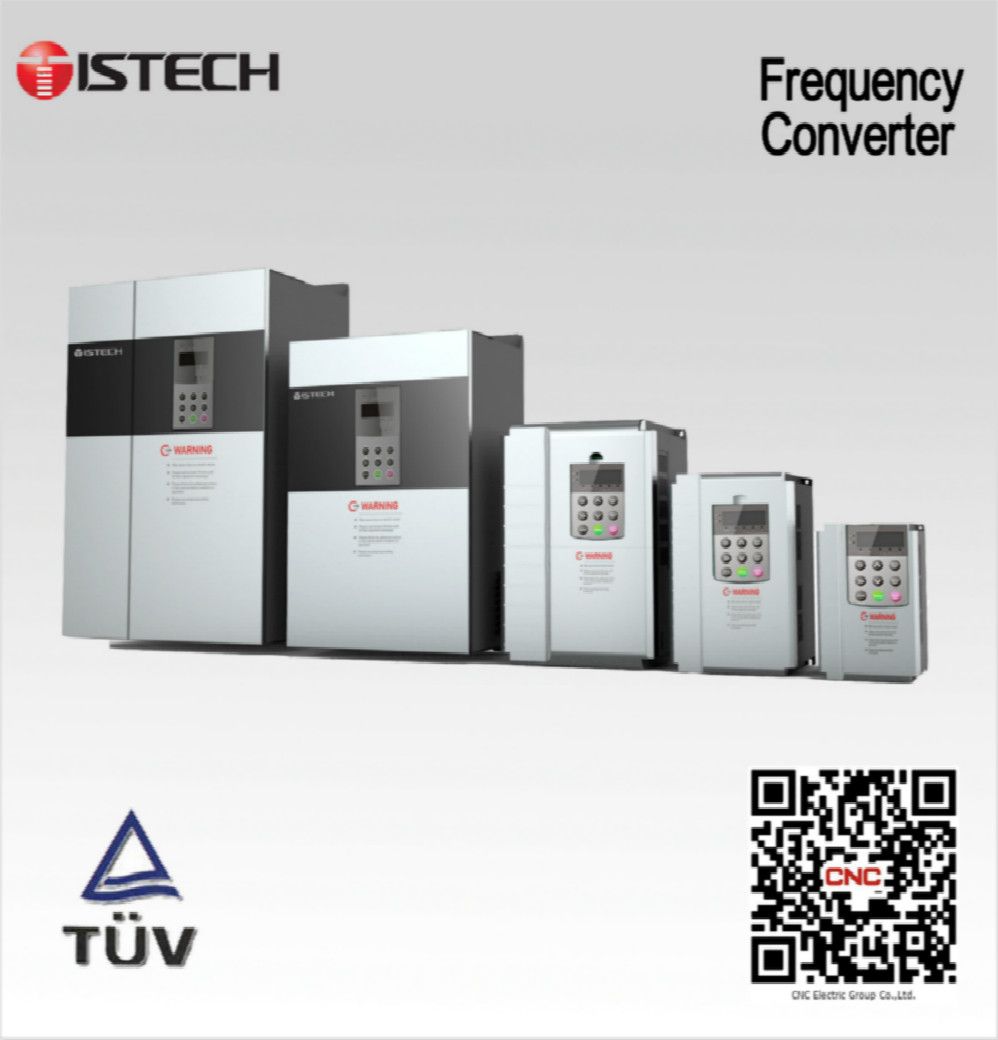

Best Seller Frequency Variable Drive

Name: Best Seller Frequency Variable Drive
Brand: all-electronics-online.com
SKU: 738596545
Availability: InStock
Rating: 4.9 (58 reviews)

Price:	US $ 150/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	IDrive 100 series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage (V):	220/380V
Rated Current (a):	4.5A-460A
Outline Dimension (Mm):	2300X595X800
Weight (Kg):	1400
Max Power (Kw):	400, 250, 110
Principle Of Work:	V/F Control Transducer
Main Circuit Type:	Voltage
Output Type:	Triple
Application:	High Frequency Converter Transducer
Switch Mode:	High Carrier Frequency PWM Control

Product Description

1. Function

BPJ-400(250, 110)/1140(660) mine flame-proof and intrinsically safe AC frequency converter
Is used in underground mines with explosive gas (methane) and coal dust. Main spare parts
Such as IGBT, filter capacitor, control core adopt imported brands to ensure reliable longtime
Operation. This series adopt vector control technique with perfect motor protection
And good speed adjusting to realize soft start and soft stop of the motor. According to the
Load circumstances, it can automatically adjust the motor speed and reduce the reactive
Impact of the motor starting on the grid. Meanwhile, through peripheral sensor, it can
Realize variable dynamic control to achieve the purpose of energy saving. Applicable to
Explosion-proof mine hoists, belt conveyor, scraper conveyor, pump station, fan etc. In the
Underground mines.

2. Characteristics

2.1 Adopt no-speed sensor vector. The output torque can reach 1.5 times rated torque at
0.5Hz. The largest torque is 2 times of the rated torque.
2.2 Heat pipe cooling ensures the cooling requirement of the equipment operation,
Reduces the system voice and realizes zero maintenance.
2.3 Wide frequency adjusting (2-16kHz) to meet demands of different occasions.
2.4 Different brake modes according to different loads: DC brake, dynamic brake, feedback
Brake
2.5 Human-Machine interface adopts intrinsically safe circuits for isolation purpose so that
It can ensure the equipment safety and convenient operation.
2.6 With protective functions of over-voltage, short-circuit, over-load, over-heating, phaseloss
Etc.
2.7 With standard RS-485 communication interface.
2.8 Good electromagnetic compatibility.
2.9 Remote diagnosis ability

Rated voltage (kV)	220V 380V
Rated power (kW)	990W	2000W	2280W
Rated Current (A)	4.5A	8.6A	60A
Rated overlead Current	150%le/mim
Rated control Current	0.1~400Hz
Starting frequency	0.5~50Hz
Acceleration time	0~3600s
Duty type	Continuous or short-term
