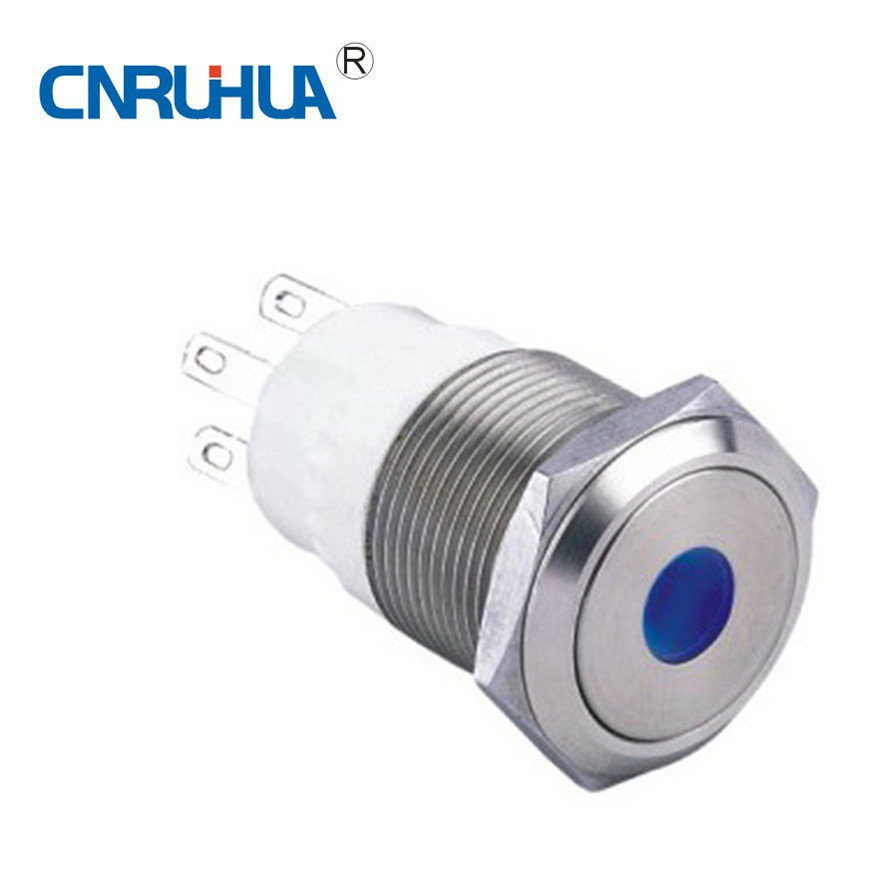

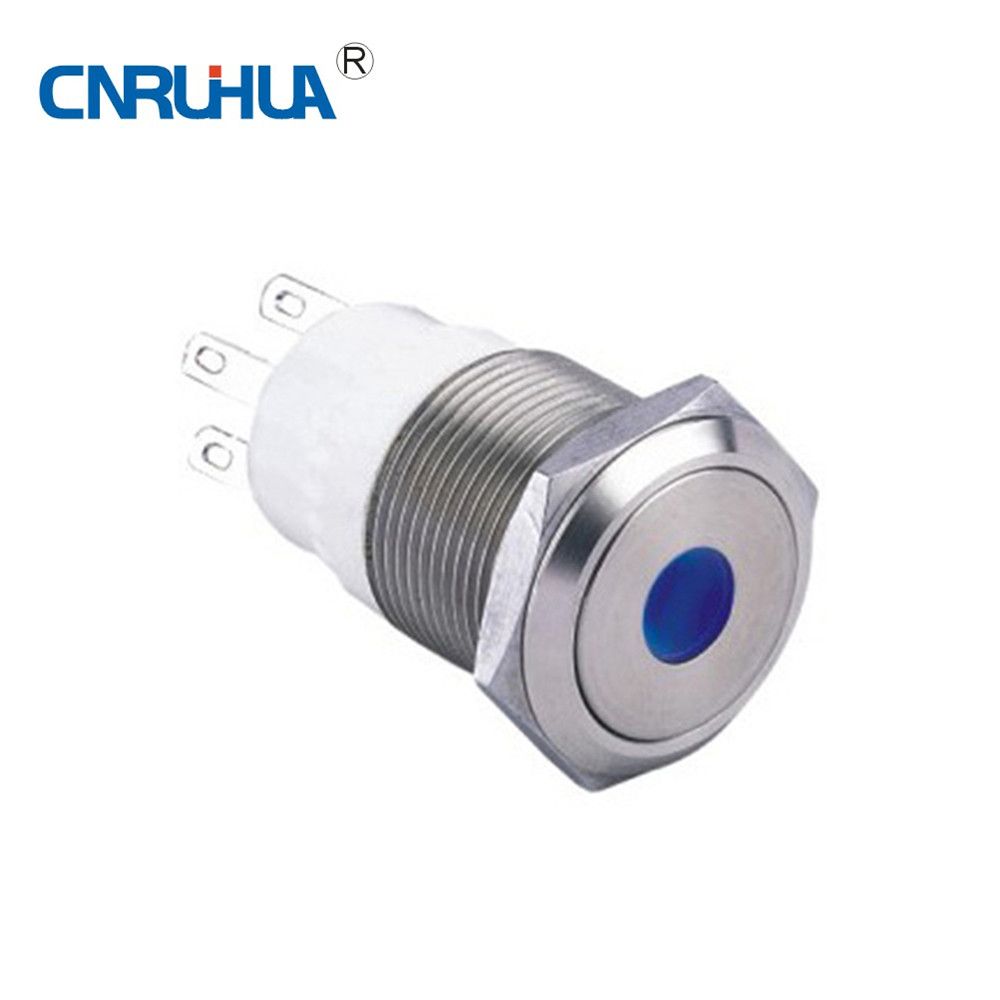

Best Seller Illuminated 19mm Waterproof Metal Push Button Switch
| Price: |
US $ 1.3-1.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
HJS19A-D1Q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Hjs19A-D1q |
| Type: |
Normal Open |
| Usage: |
Check Button |
| Kind: |
Single-pole on-off Switch |
| Brand: |
Cnruihua |
Product Description
Factory Metal Non Illuminated Waterproof Push Button
HJS19A-D1Q
Overview

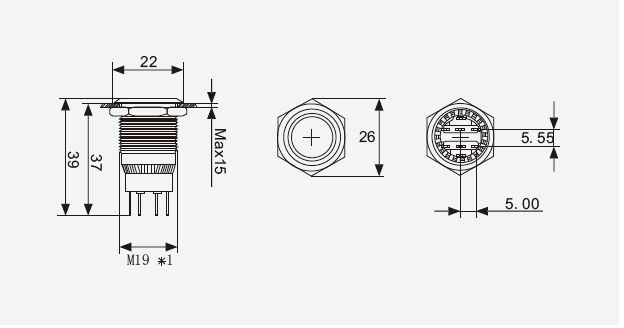

Mounting hole dimension: Φ 19mm
Switch rating: 3A/250V
Switch combination 1NO 1NC/2NO 2NC
Operating type: Self-settable /Self-locking
Head shape: Facet
Shell material: Stainless Steel/brass (Chrome Plated or Gold Plated)/ aluminium(oxidized)
Bead type: Single LED/ring LED
IP grade: IP65
Technical parameters | Specification | HJS19A-D1Q | Life time | >1,000,000 |
| head shape | facet | electric life time | >200,000 |
| The tail configuration | Wiring Insert(2.8*0.5mm) | Panel thickness | 1~10mm |
| Switch specification | Ith:5A Ui:250VAC | nut torque | 5~14Nm |
| contact resistance | ≤50mΩ | Operating force | 3N~5N |
| insulation resistance | ≥1000mΩ | operating distance | ≈3.1mm |
| insulating strength | 2000VAC | IP Grade | IP40/IP67 |
| Working temperature | -20~+50 °C |
| material | contact | Silver alloy | Bead specification | type LED | single LED
ring LED
|
| key | stainless steel/
brass(Chrome Plated) |
| shell | stainless steel/
brass(Chrome Plated ) | rated voltage | 6V/12V/24V/
110V/220V |
| Pedestal | PBT | Bead color | Red orange yellow
green blue white |
| RoHS | Customized | bead life time | 40,000 hours |
About USYUEQING CITY RUIHUA CABINET WHOLE SET EQUIPMENT is a professional manufacturer of low voltage electrical products in South China. Our company is committed to design, produce and sale a series of ozone generators air pumps, PLC, rotary encoders, HMI, sensors, switches , warning lights, meters and many other electrical components. We exports various types of electrical appliances to different countries.FAQQ: Are you a manufacturer or a trade dealer?A: We are manufacturer with our own factory and trading company.Q: When did your company start to manufacture the products?A: We started from the year of 2005.Q: How can I get some samples?A: You can send email, buy from our online shop or call us for sample order.Q:.Can I just buy 1pc sample first or small order?A:Yes,support sample order and small order, especially for new customers.Q:.How long to make a sample?A: We have plenty of stock to support sample order and small order.Q: Is the sample fee refundable or not?A:Due to the producing cost is high, we need charge sample fee.Q:What certification do you have?A:We have got CE, RoHS certification for our products.Q:Can I put my own logo?A:Yes, your logo can be engraved, embossed, transfer-printing or lasered etc.Q:Is the price including duty?A: This price does not include customs fee, local taxes, or brokerage fee.Q:How good is your service and after-sales service? A: We have excellent customer service & technical support &1-year warranty police to meet all your requirements.Q: How do your company regard on quality control?A:Quality is priority. We think highly of quality controlling.About Payment We provided Trade Assurance service We also accept payment by T/T; Western Union, ESCROW, Paypal, Money gram We Provide OEM ServicesWe can do OEM for your brand (print your logo ). And we can make product according to your design .The processing method ,the size ,the quality etc ,will all follow your requirement . We do OEM for a lot of the world's leading brands ,we have rich experience in production. We have molds in varieties ,and we have strict products quality control system. We have a strong R&D team, to develop new products according to the sample you provided.
Yueqing Ruihua Cabinet & Whole Set Equipment Co., Ltd. which is established in 2005. The company is located in Wenzhou, which sites on the coast line of Zhejiang province. Wenzhou is a modern and highly civilized city, famous for healthy industry environment. At the same time, the convenient transportation system will as well be a great advantage for any project involving international shipping and delivery.
Our company is a specialized manufacturer with over 20 series and more than 2, 000 specifications, and exports various type of electrical appliances to different countries, such as Ozone genertator & air purifier, distribution boxes, wall sockets, floor sockets, PLC, encoders, inverters, motors, HMI, sensors, switches, panel meters, and other electrical components.
Today, Ruihua's electrical products have already been distributed to Russia, Europe, South America, and the Middle East. We guarantee the high standard of our products, so as reliability of producing and supplying products. Our products have been approved by CCC, CE, UL and RoHS, certificates. The company has also been recognized by ISO9001. with the years successfully experiences, we believe, we can not only produce and supply the good products, but also with professional services and efficiency.
We value the businesses in real earnest. Building a highly trust worth "Zhejiang merchant culture" is our principle. We wish to build up a long-term business relationship both domestically and internationally, and expect to trade with the clients on the basis of good credit and mutual benefit.
