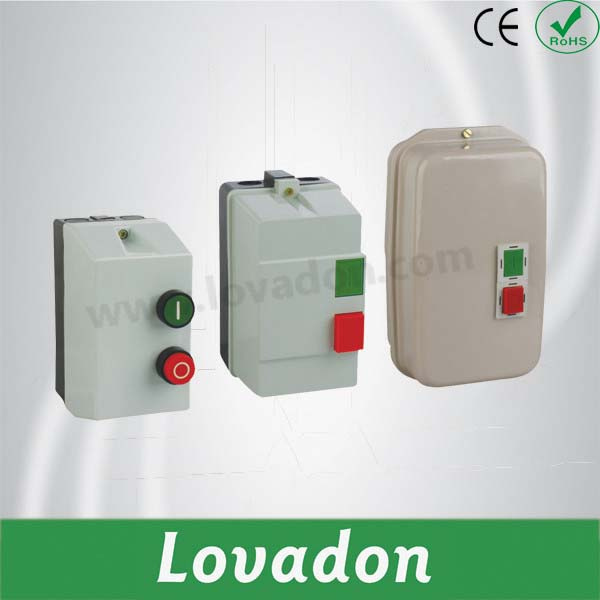

Best Seller Le1 Series D Model Magnetic Starter

Name: Best Seller Le1 Series D Model Magnetic Starter
Brand: all-electronics-online.com
SKU: 684106422
Availability: InStock
Rating: 4.4 (135 reviews)

Price:	US $ 3-5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LE1-D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Lovadon

Product Description

Magnetic starter is composed of steel, steel plate stamping shell, AC contactor, thermal relay and the corresponding wiring structure, should be used with start stop button switch, and the right hand control signal cable connection. When the start button is pressed, the coil of the AC contactor is arranged in the electric magnetic starter, armature drives the contact group closed, connected with electric appliances (usually a motor) power supply, also through the auxiliary contact self-locking. Press the stop button, the internal AC contactor coil power loss, off contact, cut off electric power and unlock.
According to different control need, magnetic starter can be flexible connection, realize its move, change equals function. The thermal relay overload protection provided by the built-in control of the motor current setting heat relay should be consistent with the motor power needs.
Magnetic starter is starting total pressure directly, using the direct starting the full pressure of the case are allowed in the power grid capacity and load two. Manipulation of advantage is easy to control, simple maintenance, and economic comparison. Mainly used for small power motor starting, the motor should not be greater than 11kw with this method.

Specifications
Maximum power AC3 duty(kW)						Rated current (A)		Protection grade		thermal relay
220V 230V	380V 400V	415V	440V	500V	660V 690V
2.2	4	4	4	5.5	5.5	9		IP42 IP65		LR2 D1312 LR2 D1314
3	5.5	5.5	5.5	7.5	7.5	12		IP42 IP55		LR2 D1316
4	7.5	9	9	10	10	18		IP42 IP55		LR2 D1321
5.5	11	11	11	15	15	25		IP42 IP55		LR2 D1322 LR2 D2353
7.5	15	15	15	18.5	18.5	32		IP55		LR2 D2355
11	18.5	22	22	22	30	40		IP55		LR2 D3353 LR2 D3353
15	22	25	30	30	33	50		IP55		LR2 D3357 LR2 D3359
18.5	30	37	37	37	37	65		IP55		LR2 D3361
22	37	45	45	55	45	80		IP55		LR2 D3363 LR2 D3365
25	45	45	45	55	45	95		IP55		LR2 D3365

Enclosure		LE1-D09 and D12		Double insulated,protected to IP54
		LE1-D18 and D25		Double insulated,protected to IP54
		LE1-D32...D95		Metal, IP54
Control(2 pushbuttons mounted on enclosure cover)		LE1-D09...D95		1 green Start button"I" 1 red Stop/Reset button"O"
Connections		LE1-D09...D95		Pre-wired power and control circuit connections
Standard control circuit voltage
Volts	24	42	48	110	220/230	230	240	380/400	400	415	440
50/60Hz	B7	D7	E7	F7	M7	P7	U7	Q7	V7	N7	R7

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
