Best Seller on Grid Solar Power Inverter 5kw for Lowest Price

Name: Best Seller on Grid Solar Power Inverter 5kw for Lowest Price
Brand: all-electronics-online.com
SKU: 820598835
Availability: InStock
Rating: 4.5 (94 reviews)

Price:	US $ 610-699/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GW5000-NS

Product Description

First-Class Brand
Goodwe Create Adopting German Technology

5KW NS series one MPPT tracking one phase 220V GW5000-NS On grid inverter

Product Features
More than 10 ten security tests	Integrated DC open circuit switch	IP65 dustproof and waterproof level
Full load output	Low to 80V on-grid PV voltage	New range MPPT voltage
Support multiple communication modes	Integrated cooling technology without fan	30% weight optimization ,easy installation
20% volum optimization, saving space	Making up system with 3 pcs solar panels	Popular for household use

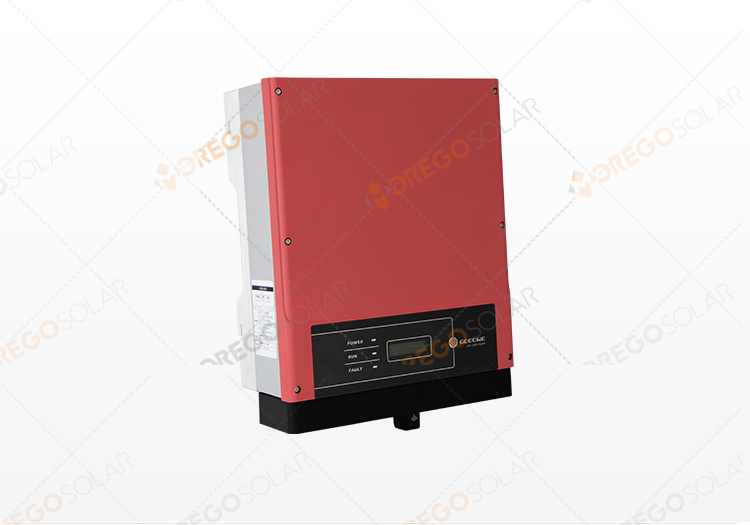

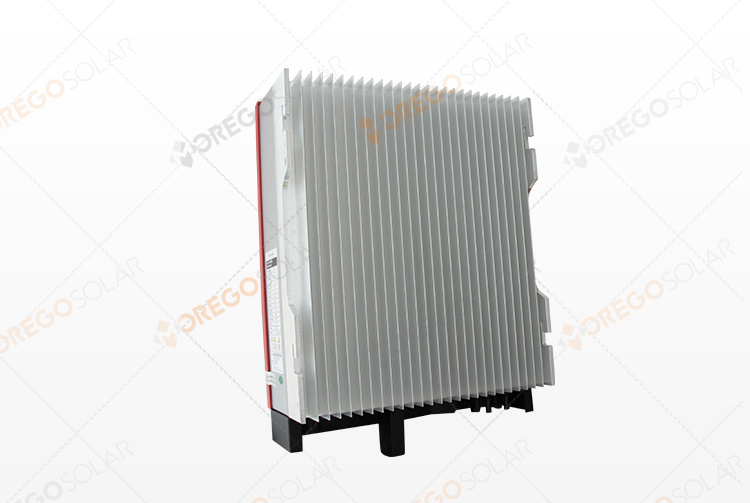

Real Shot

PARAMETER
Item	Model Parameter	GW5000D-NS
DC Input Data	Max.allowed PV Power (W)	6500
	Max. DC Power (W)	5500
	Max. DC Voltage (V)	580
	MPPT Voltage Range (V)	80~550
	Starting Voltage (V)	120
	Max. DC Current (A)	11/11
	No. of Input	2
	No. of MPPT	2
	DC port type	MC4/Phoenix/Amphenol
AC Output Data	Max. AC Power (W)	5000
	Max. AC Current (A)	22.8
	Rated AC Output	50/60Hz; 230Vac
	AC Output Range	45-55Hz/55-65Hz;180-270Vac
	THDi	<3%
	Power Factor	0.8 leading~0.8 lagging
	Grid Type	One Phase
Efficiency	Max. Efficiency	97.8%
	Euro Efficiency	>97.5%
	MPPT Efficiency	99.90%
Protection	Residual Current Monitoring Protection	Integrated
	Anti-Islanding Protection	Integrated (Optional)
	DC Switch	Integrated
	AC over Current Protection	Integrated
	Insulation Resistance Monitoring	Integrated
Certification & Standards	Grid Regulation	NB/T 32004
	Safety Regulation	NB/T 32004
	EMC	NB/T 32004
Normal Parameter	Dimension (WxHxD)	347432145mm
	Weight (kg)	14
	Mounting	Wall Bracket
	Ambient Temperature Range	-25~60°C(>45ºC deloading)
	Relative Humidity	0~95%
	Max.Operating Altitude	4000m(>3000m derating)
	Protection Degree	IP65
	Topology	Transformerless
	Night Power Consumption (W)	<1
	Cooling Method	Natural Convection
	Noise Emision (dB)	<25
	Display	LCD
	Communication	RUSB2.0; WiFi/RS485 (Optional)
	Warranty(Year)	5

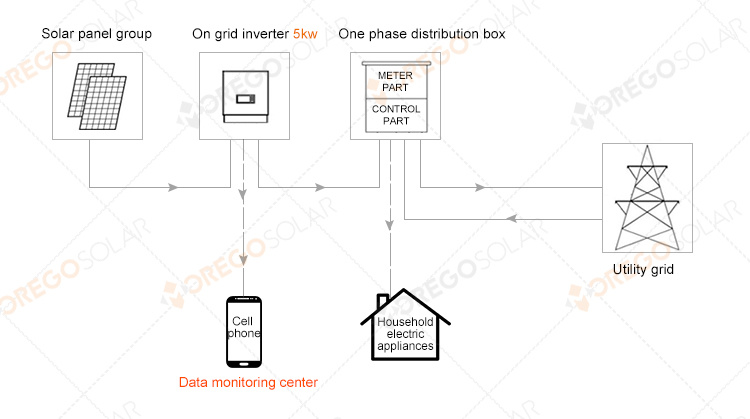

Installation Diagram

Goodwe

Adopt German design/Household type ranks second in the world and Business model is fifth of the global.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

The highest conversion efficiency of the full range of photovoltaic inverter products reached 98.8%, MPPT tracking efficiency is up to 99.9%,which has reached the world first-class level.

GoodWe inverters have been sold a great amount to Australia, Germany, Britain, France, Holland, Belgium, Denmark, Greece, Turkey, India, Malaysia, South Africa, Mexico, Brazil and other more than and 30 countries
