Best Selling 24VDC 800va/480W Inverter Charger

Name: Best Selling 24VDC 800va/480W Inverter Charger
Brand: all-electronics-online.com
SKU: 747029595
Availability: InStock
Rating: 4.9 (98 reviews)

Price:	US $ 6/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PV1500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	PV1500
Battery Type:	Lead Acid Battery
Operating Temperature:	0°c to 40°c
Transfer Time:	10ms
Capacity:	350va 800va
Waveform:	Pure Sine Wave
Phase:	Single
Power Source:	Electric Power
Output Power:	50 - 100W

Product Description

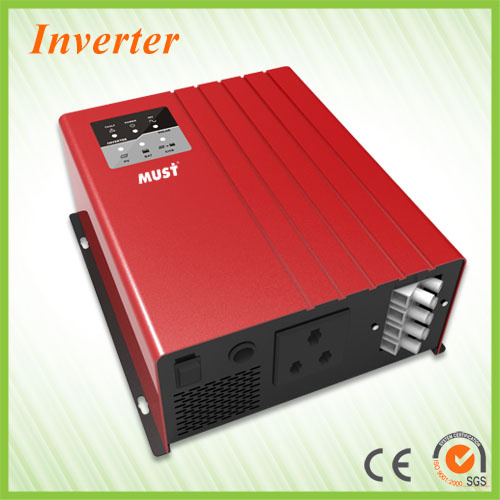

Best Selling 24VDC 800VA/480W inverter charger

What is 480W inverter charger?
Solar pv inverters is an electronic system that operates the photovoltaic(PV) modules in a manner that allows the modules to produce all the power they are capable of. The solar mate charge controller is a microprocessor-based system designed to implement the MPPT. It can increase charge current up to 30% or more compared to traditional charge controllers.
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features of 480W inverter charger

Pure sine wave AC output, wide application range
High frequency design, low power consumption, high transfer efficiency and long backup time
Perfect protection(overload, short circuit, over voltage, under-voltage, over temperature protection)
Low noise(<30db @ 1 m), aluminum alloys shell, strong anti-interference ability, low radiation

MODEL	PV15-350		PV15-800
Default Battery System Voltage	12VDC	24VDC	12VDC	24VDC
INVERTER OUTPUT
Rated Power	350VA/200W	350VA/200W	800VA/480W	800VA/480W
Max.peak load	400VA	400VA	800VA	800VA
Waveform	Pure sine wave
Nominal Output Voltage RMS	230VAC
Output Voltage Regulation	+/-5% RMS
Output Frequency	5OHz+/-0.1 Hz
Efficiency(Peak)	>90%	>91%	>90%	>91%
THD	<6%,linear load; <9%,non-linear load at nominal input voltage; <20% at minimum cut-off level; Note: non-linear load condition: P.F.>0.7
BATTERY
Nominal Input Voltage	12VDC	24VDC	12VDC	24VDC
Minimum Start Voltage	11.OVDC+/-3% for12VDC mode (*2 for 24VDC)
Low Battery Cutoff	10.0VDC+/-3% for12VDC mode (*2 for 24VDC)
High Voltage Alarm	16.0VDC+/-3% for12VDC mode (*2 for 24VDC)
High Battery Voltage Recover	14.5VDC+/-3% for12VDC mode (*2 for 24VDC)
Maximum allowed ripple on DC	10%RMS
Input current @ nominal load	22.5A	11A	37.5A	19A
DC fuse required(slow blow)	40A	40A	40A*2	40A
No load power consumption:
On mode@save mode	0.33A/4W	0.16A/4W	0.33A/4W	0.16A/4W
On mode@high mode	0.54A/7W	0.27A/7W	0.54A/7W	0.27A/7W
Power saving	<25W when power saver on
Solar Charger
Output Voltage	12VDC		24VDC
Charging Current	30AMAX
PV Input Voltage	55VMAX
Overcharge Protection	15.5VDC+/-0.5V MAX		31VDC+/-1V MAX
Fast charging Voltage	14VDC+/-0.2V		28VDC+/-0.2V
Float charging Voltage	13.7VDC+/-0.2V		27.4VDC+/-0.2V
Protections	Overload protection, Short circuit protection
Environmental
Noise	<40dB
Cooling	natural/forced
Operating temperature	Operation temperature: 0 to +50°C 0 to +40 °C full rating +40 to +50 °C de-rating.
Storage temperature
Mechanical Specifications
Mounting	Wall mount
Dimensions (WHD)	21418283.5mm
Net Weight (Solar CHG) kg	1.9	1.9	1.95	1.95
Other
Display	LED
Standard Warranty	1 year

Shenzhen Must Energy Technology Co., Ltd. Established in Shenzhen in 1998, Which is leading manufacturer of power protection produtcs & service solutions including UPS, power inverters, Solar inverters, charge controllers, Batteries, AVR for more than ten years, with a strong R&D team, internal automation equipment design and manufacturing capability, as well as continuous quality improvement, Santakups Electronic Company has become the leading supplier for long backup time power solution in the new world of information technology.

We' Ve kept our defect rate well under 0.5 percent. Logo printing service is available on request.
