Best Selling Air Conditioner/Fan Relay with UL Certification

Name: Best Selling Air Conditioner/Fan Relay with UL Certification
Brand: all-electronics-online.com
SKU: 824006585
Availability: InStock
Rating: 4.8 (105 reviews)

Price:	US $ 2-3/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JPR293
Color:	Black
Other Services:	ODM OEM
Delivery Time:	30 Days After Deposit
Application:	Refrigeration, Air Conditioning and Heating
Life Time(Mechanical):	1 Million Times

Product Description

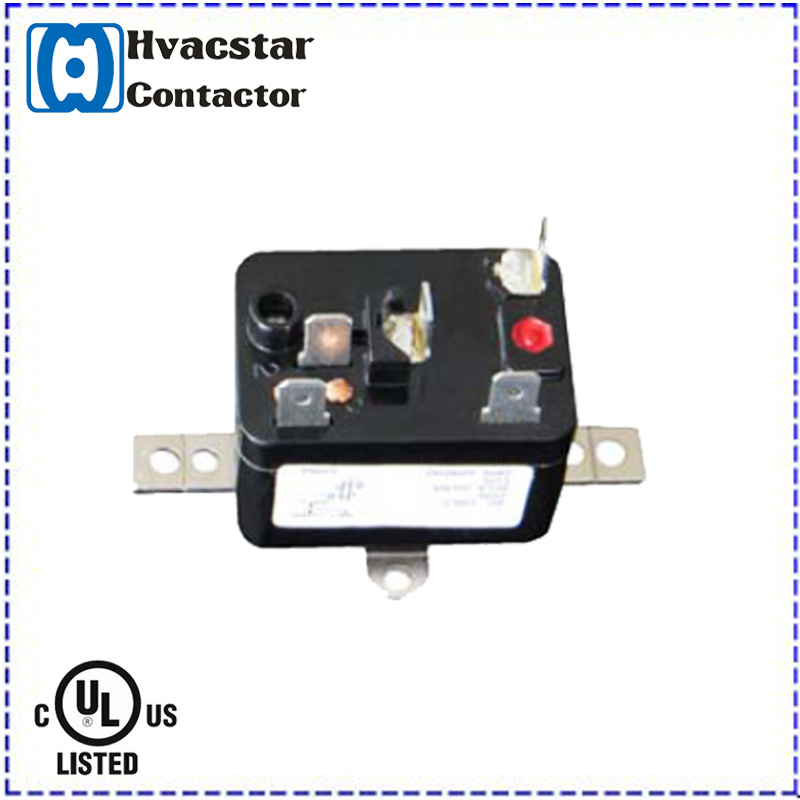

High Power Fan Relay:
Fan Relays, mainly Is Suitable For 50Hz Or 60Hz, The Nominal Current Up To The 14A at 120v and 8A at 277V.
It is used on heating and air conditioning equipment to provide switching of heavier loads with a compact size relay.

Feature:
1. 16A switching capability
2. 2.5kV dielectric strength(between coil and contacts)
3. Panel mount types available
4. Environmental friendly product(RoHS COMPLIANT)
5. Outline Dimensions: 47.0×32.0×28.5mm

Applications:

Air conditioners
Heat pumps
Water heaters
Other locations where a local disconnect is required

Specifications:

Amps Resistive	16
Coil Voltage	24
FLA/LRA at 250 Volts	8/25
Switch Type	SPST-NO

Replaces:

White-Rodgers	90-290
RBM	90-290Q
Mars	90290

CONTACT DATA

Contact arrangement:					1A, 1B, 1C
Contact resistance:					50m max.(at 1A 24VDC)
Contact Material					Silver alloy
Contact rating: (Res. Load)					Form A: 16A 250VAC, resistive load
					Form B: 8A 250VAC, general load
					Form C: 16A 250VAC, resistive load
Max. Switching Voltage:					250VAC
Max. Switching Current:					16A
Max. Switching Power:					4000VAC
Mechanical endurance:					1×106OPS

COIL DATA at 23ºC

Nominal Voltage VDC	Pick-up Voltage VDC max.	Drop-out Voltage VDC min.	Max. Voltage VDC	Coil Resistance
Nominal Voltage VDC	Pick-up Voltage VDC max.	Drop-out Voltage VDC min.	Max. Voltage VDC
6	4.50	0.6	6.6	17.5×(1±10%)
9	6.75	0.9	9.9	40×(1±10%)
12	9.00	1.2	13.2	70×(1±10%)
24	18.00	2.4	26.4	280×(1±10%)
48	36.00	4.8	52.8	1120×(1±10%)
120	90.00	12	132	7000×(1±10%)

Nominal Voltage VAC	Pick-up Voltage VDC max.	Drop-out Voltage VDC min.	Max. Voltage VDC	Coil Resistance
Nominal Voltage VAC	Pick-up Voltage VDC max.	Drop-out Voltage VDC min.	Max. Voltage VDC
6	5.1	1.2	6.6	4.8×(1±10%)
12	10.2	2.4	13.2	19×(1±10%)
24	20.4	4.8	26.4	90×(1±10%)
48	40.6	9.6	52.8	300×(1±10%)
120	102.0	24	132	2000×(1±10%)
240	204.0	48	264	7200×(1±10%)
277	235.0	55.4	304.7	11000×(1±10%)

Note: Maximum voltage refers to the maximum voltage which relay coil could endure in a short preiod of time
