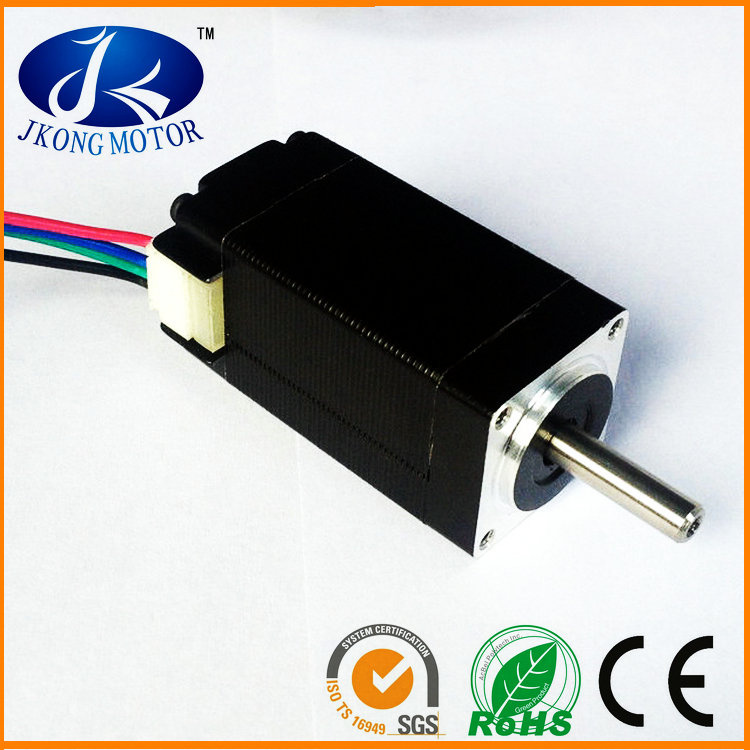

Best-Selling Micro NEMA8 Stepper Motor/20mm 2 Phase Mini Stepping Motor/Low Torque Step Motor

Name: Best-Selling Micro NEMA8 Stepper Motor/20mm 2 Phase Mini Stepping Motor/Low Torque Step Motor
Brand: all-electronics-online.com
SKU: 766910295
Availability: InStock
Rating: 4.4 (43 reviews)

Price:	US $ 4.5-6/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK20HS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Stepper Motor Angle:	1.8 Degree
Stepper Motor Weight:	0.05-0.08kg
Holding Torque:	160-400g.Cm
Stepper Motor Leads:	4/6
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Type:	Electromechanical
Certification:	CE and RoHS
Brand:	Jkong Motor

Product Description

Best-selling Micro NEMA8 Stepper Motor/20mm 2 Phase Mini Stepping Motor/Low Torque Step Motor

Genaral Specification:
Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 20N
Max. axial force ---------------------------- 2N

Electrical Specification:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	Lead wires	Motor Weight
Model No.	( °)	(L)mm	A	ohm	mH	g.cm	No.	Kg
JK20HS30-0604	1.8	30	0.6	6.5	1.7	180	4	0.05
JK20HS33-0604	1.8	33	0.6	6.5	1.7	180	4	0.06
JK20HS38-0604	1.8	38	0.6	10	5.5	400	4	0.07
JK20HS42-0604	1.8	42	0.8	5.4	1.5	300	4	0.08

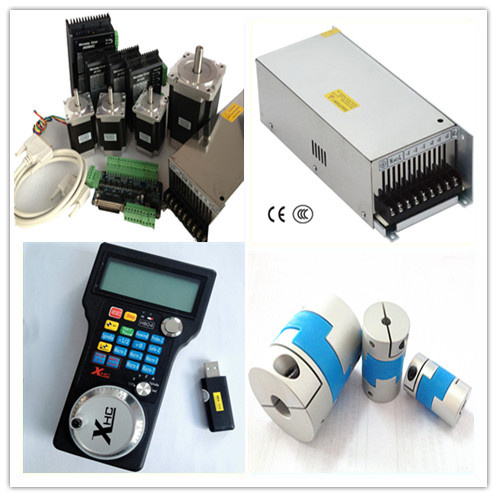

We aslo supply Stepper motor Kits, linear stepper motor, Dc motor, Brake stepper motor, Stepper motor with Encoder, Flexible Coupling, Pully, Power supply, Breakout Board and so on..

If you need more information. please contact with us, our contact information:

Changzhou Jingkong Motor&Electric Appliance Co., Ltd

Contact Person: Miss Alice

Tel: 0086 15189798401
Fax: 0086 519 88713769

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
