| Prod Model: |
S900GS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Vector Control 330-440V Variable Frequency Inverte |
| Voltage: |
170-240V/330-440V |
| Power: |
220V 0.4-1.5kw;380V 0.75-22kw |
| Phase: |
1/3 Phases |
| Frequency: |
0.1-400Hz |
| Apply: |
General Use |
| V/F Control: |
Setting V/F Curve to Satisfy Various Load Requirem |
| Pid Control: |
Built-in Pid Control |
| Certificate: |
Ce:ISO9001 |
| Protective: |
IP20 |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Function: |
General Used |
| Brand: |
Machtric |
Product Description

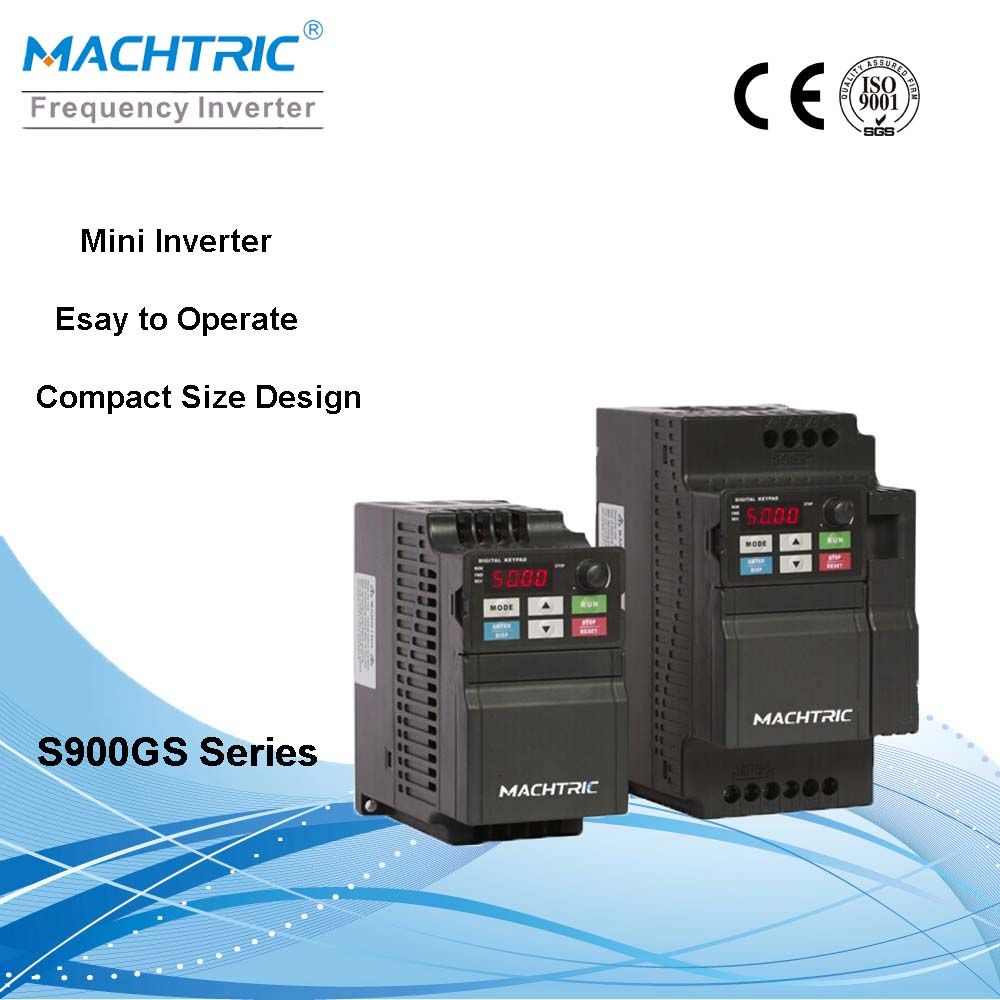

Best Selling Vector Control 330-440V Variable Frequency Inverter With CE
General used Compact size variable speed drive vfd
Input voltage: 220V single phase input/ Three phase input
Power range: 0.4kw-37kw
| | Items |
S900GS |
Power
Supply | Rated voltage, Frequency | Single phase/Three phase 220V 50/60Hz |
| Voltage Range | 220V:170V~240V 380V:330~440V |
| Output | Voltage Range | 220V:0~220V 380V:0~380V |
| Frequency Range | 0.10~400.00Hz |
| Control method | V/F control, Space vector control. |
| Indication | Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/current, DC bus voltage, the temperature and so on. |
| Control Specifications | Output Frequency Range | 0.10Hz~400.00Hz |
| Frequency Setting Resolution | Digital input:0.01Hz, analog input:0.1% of maximum output frequency |
| Output Frequency Accuracy | 0.01Hz |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase: auto raise torque by loading condition; manual increase; enable to set0.0~20.0% of raising torque |
Multifunctional lnput
Terminal | Six multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional Output
Terminal | 2 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings |
| Acceleration/deceleration Time Setting | 0~-999.9s acceleration/deceleration time can be set individually |
| | PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input:0 to 10V,,0 to 20mA can be selected;
Dig ital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN |
| Multi-speed | Six multifunction input terminals, 15section speed can be set |
| Automatic voltage regulation | Automatic voltage regulation function can be selected |
| Counter | Built -in 2group of counters |
| Protection/ Warning Function | Overload | 150%,60 second(Constant torque) |
| Over Voltage | Over voltage protection can be set |
| Under Voltage | Under voltage protection can be set |
| Other Protections | Overheat, short circuit, over current, and parameter lock and so on |
| Environment | Ambient Temperature | -10ºC to 40ºC(non-freezing) |
| Ambient Humidity | Max.95%(non-condensing) |
| Altitude | Lower than 1000m |
| Vibration | Max. 0.5G |
| Structure | Cooling Mode | Forced air cooling |
| Protective Structure | IP20 |
| Installation | Mode | Wall Mounted |
Place of Origin: Fujian, China (Mainland)
Brand Name: Machtric
Model Number: S900GS
Output Power: 07.5kw-22kw
Output Type: Triple
Size: different
Weight: different
Input Voltage: 220V, 380V
Output Voltage: 220V, 380V
Type: AC-DC-AC
Output Frequency: 0-400Hz
Output Current: different
vsd: variable speed drive
input: single phase
supply power: AC 220V
inverter: frequency inverter
IP rate: IP20 VSD
color: black vfd
Application: fan and pump vfd
size: compact size
control mode: V/F control
Application
| paper machinery | screw output device |
| drawing equipment | dyeing plant |
| injection plastic equipment | air conditioning system |
| machine tool equipment | boiler system |
| chemical fiber equipment | water supply |
| oil transportation installation | textile equipment Etc |
