| Prod Model: |

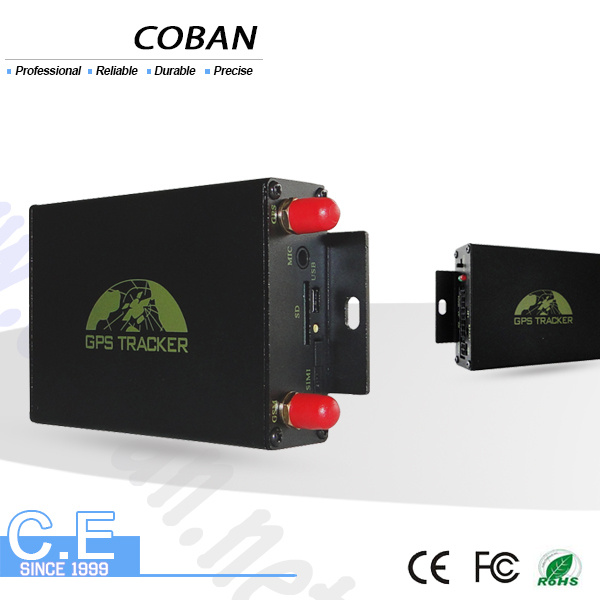

TK105 |
| Certificate: |
Ce |
| Warranty Time: |
1 Year |
| Network: |
GSM/GPRS |
| Weight: |
120g |
| Size: |
92*71*26mm |
| GPS Accuracy: |
5m |
| Band: |
850/900/1800/1900MHz |
| Power: |
12-24V DC |
| OEM/ODM: |
Support Customized |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Model: |
Tk105 |
| Screen Size: |
No Screen |
| Brand: |
Coban |
| Certification: |
ISO 9001 Ce FCC CCC |
Product Description
Best vehicle fuel sensor relay fleet management GPS tracker dual sim card for poor signal area
China factory price GSM/GPRS/GPS Vehicle tracker with RFID and camera
GPS-105 tracking unit is a device that uses the Global Positioning System (GPS) to determine the precise location of a vehicle to which it is attached and to record the position of the vehicle at regular intervals.
The recorded location data can be stored within the tracking unit, or it can be transmitted to a central location database, or internet-connected computer, using a cellular (GPRS or SMS) or satellite modem embedded in the unit.This allows the vehicles location to be displayed against a map backdrop either in real time or when analyzing the track.
GPS105 Basic functions:
For vehicle (12V-24V)
LBS/Cell ID tracking+ GPS satelites tracking, monitor
Dual Sim card switch if one lost signal
ARM (Lock) / DISARM (unlock) by SMS
remote shutdown vehicle engine and resume
Support camera,snatshot image automatically when alarm
triggered,get image from cell phone or Web platform.
Support RFID, Kilometrage, speed governor
GPS blind spot alert
Power save mode, GPRS data save mode
Real time tracking, turning points update automatically
SOS,Geo fence, movement, over speed, low battery and
power off alert | Fuel, shock sensor, ACC, door alarm
Configure parameters by USB cable
SMS tracking on cellphone with google maps link
Exact street address by SMS
Web server and mobile APP(Android and IOS), free PC based tracking software
Electric / Air compressor lock switch
Production details
Package content :
1 x GPS unit
1 X GPS Antenna
1 X GSM Antenna
1 X MIC
1 x Harness
1 X Relay(12V)
1 X CD
1 X Manual
1 X Package Box
1 XRemote controller for Model B
1 XShock sensor(Option)
1 Xsiren(Option)
1 XCamera&RFID (Option, choose one only from these 2 accessories for each tracker )
1 XCentral locking relay(Option)
1 XFuel sensor(Option)
1 XTemperature sensor(Option)
Specifications
| Content | Specifications |
| Size | 92*71*26mm |
| Weight | 120g |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V/24V |
| Backup battery | Chargeable changeable 3.7V 500mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation temp | -20°C to +65°C |
| humidity | 5%--95% non-condensing |
GPS tracker installation remmendation
Applications:
Used widely for vehicle and other moving objects tracking and management.
1)Live fleet tracking systems: Engineered and tested to meet the most stringent fleet management applications, our GPS locators allow businesses to view company vehicles in real-time while also giving fleet managers lifetime access to historical GPS tracking data! Providing comprehensive reports that break down mileage driven, speeds driven, travel direction, start/stop data and more, users can easily manage a small or large number of company vehicles all through our user-friendly, online mapping system.
2)Boost employee & vehicle efficiency: By utilizing a fleet management plan that calls upon GPS tracking devices, businesses large or small with company vehicles can evaluate employee driving activity, accurately document mileage and eliminate driving behaviors such as excessive vehicle idling that can hurt automotive maintenance, customer service and company profit.
3)Auto theft security: Vehicle locator systems can protect all of your companies mobile assets. Easy to set geo-fences will allow businesses to create safe zones that will send text message notifications if a vehicle moves outside the programmed safety zones. Don't let your business operations be slowed down by theft! With GPS trackers securing your company vehicles, automobile theft will be a thing of the past!
Warranty:
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models.
4.We will bear maintenance cost during warranty.
