Bh Mini Circuit Breaker, MCB, Low Voltage Circuit Breaker

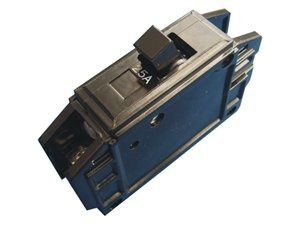

Name: Bh Mini Circuit Breaker, MCB, Low Voltage Circuit Breaker
Brand: all-electronics-online.com
SKU: 812586295
Availability: InStock
Rating: 4.7 (78 reviews)

Price:	US $ 0.45/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BH
Pole Number:	1,2,3,4 P
Warranty Time:	3 Years
Certificate:	Ce ,CQC
Service:	OEM and ODM
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Installation:	Fixed
Structure:	MCB
Poles Number:	4
Certification:	CCC
Arc-extinguishing Medium:	MCB

Product Description

Application

BH series is applicable to branching circuit breakers,They are for power distribution boards,and products compatible for affixation to DIN rails are also available. Widely used in guesthouses, block of flats, high buildings, squares, airports, railway stations, plants and enterprises etc, in AC circuits 240V (single pole)up to 415V (3 pole) 50Hz for protection ofoverload short circuit and for circuit change-over in lighting system. Breaking capacity is 3KA. The items comply with IEC60898 standard.

Specification

Number of Poles: 1P, 2P, 3P
Rated current(A): 6, 10, 15, 20, 25, 30, 40, 50, 60, 70, 80, 90, 100
Rated Voltage(V): 110/220 (1P), 240/415 (2P), 415 (3P)
Breaking Capacity(A): 3000
Electrical Life(Times): 6000
Mechanical Life (Times): 16000

Packaging & Delivery

Packaging Detail: export standard package or designed by yourself
Delivery Detail: within15~30days
Delivery Detail: According to the quantity of order

Standard	IEC60898
Number of Poles	1P, 2P, 3P
Rated Current (A)	6, 10, 15, 20, 25, 30, 40, 50, 60, 70, 80, 90, 100
Breaking Capacity (A)	3000
Rated Voltage (V)	110/220 (1P), 240/415 (2P), 415 (3P)
Rated Frequency	50/60Hz
Electrical Life (Times)	no less than 6000 operations
Mechanical Life (Times)	(O-C) no less than 16000 operations

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
