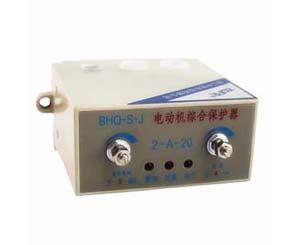

Bhq-S-J Motor Protection Relay

Bhq-S-J Motor Protection Relay
Price: US $ 1/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: BHQ-S-J

Product Description

Features :
Size (mm):20.5×27×33.4
Terminal layout:4Z
Contact capacity:3A 220VAC/3A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC
Feature:
1. Extremely low costs,5PIN/10A/12VDC.
2. SPST-NO & SPDT configuration.
3. Subminiature,standard PCB layout.
4. Sealed IP67 & flux free types available.
Specification:

Current specification

0.5-5A,2-20A,20-80A

Conductor hole diameter

Φ12

Protect time

Open phase ≤ 0.3s; Overload:

3-12s (adjustable)

Contact amount

1Z (normal close)

Contact Capacity

3A

Operation Voltage

AC220V,380V

Ambient temperature

-5ºC ~ +40ºC

Contact electrical life

105

Outline size

62*127*120mm









ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
