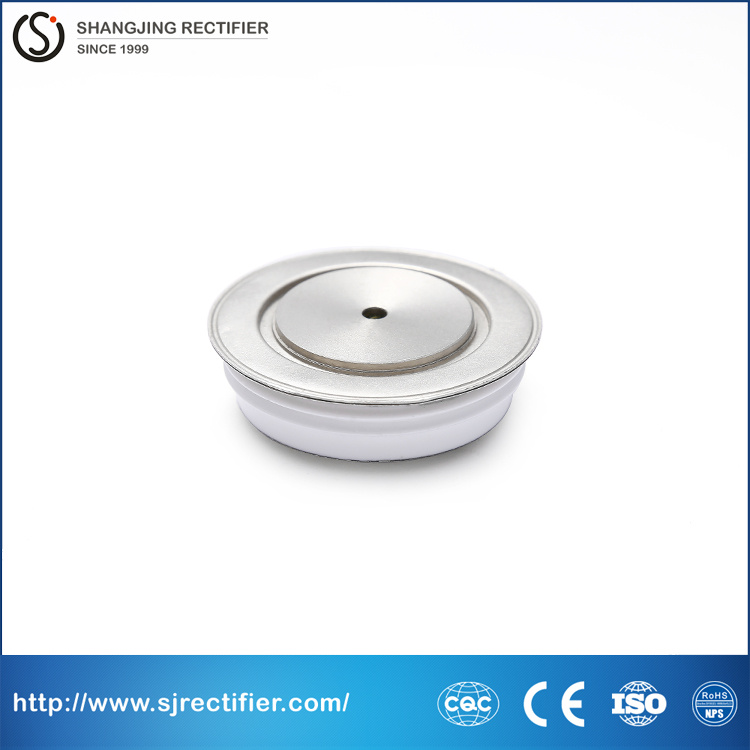

Bifacial Cooled Thyristor SCR for Induction Furnace

Name: Bifacial Cooled Thyristor SCR for Induction Furnace
Brand: all-electronics-online.com
SKU: 663458141
Availability: InStock
Rating: 4.6 (130 reviews)

Price:	US $ 5-58/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GTO200A1600V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Vrrm/Vdrm:	800-1600V
Vtm:	3.1V
Irrm/Idrm:	30am
It(AV):	200A
DV/Dt:	200V/Us
Di/Dt:	200A/Us
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	Ceramic Disc Type Seal
Application:	Inductor, Current Converter
Model:	Gto200A1600V
Batch Number:	2016+
Brand:	Shangjing

Product Description

Features
Total diffusion process
Distributed amplifying gate structure
Low switch loss
Distributed amplifying gate structure
Double-sided cooling
Excellent dynamic characteristic
Fine high frequency performance, applying 2.5kHz~10kHz
Ceramic disc type seal
Double-sided cooling

Typical Applications
Inverter
Welder
Chopper
Inductor
Various forced communicator

Explanation
IGT, VGT, IH are TA=25° C test data, others are all TA=Tjm test data.
I2t=I2TSM× TW/2: TW=Half sine wave current when at 50Hz 2t=0.00500I2FSM(A2S)
When at 60Hz ITSM(8.3ms)=ITSM(10ms)× 1.066
I2t(8.3ms)=I2t(10ms)× 0.943, Tj=Tjm

Type

Type	VDRMVRRM	IT(AV)	ITf/fm	tq	ITSM	dv/dt	di/dt	IDRMIRRM	IGT	VGT	IH	VTM/ITM	Rth(j-hs)	Tjm	M 2	Outline
		THS55° C		100° C	10ms				25° C
	V	A	A/KHZ	μ s	KA	V/μ s	A/μ s	mA	mA	V	mA	V/A	° C/W	° C	kN
GTO200C	800-1600	200	200/6	10-16	2.4	200	200	30	30-200	0.8-2.5	20-250	3.1/600	0.055	115	5.3-10	E1/E2
GTO300C	800-1600	300	300/6	10-16	3.6	200	200	40	30-250	0.8-3.0	20-400	3.1/900	0.035	115	10-20	E2
GTO400C	800-1600	400	300/10	8-10	4.8	200		40	30-250	0.8-3.0	20-400	3.1/1200	0.035	115	10-20	E2/E3
GTO500C	800-1600	500	500/6	10-16	6	200	200	50	30-250	0.8-3.0	20-400	3.1/1500	0.032	115	15-20	E3/E5
GTO600C	800-1000	600	600/6	12-18	7.2	200	250	60	30-250	0.8-3.0	20-400	3.1/1800	0.030	115	18-25	E5/E6
GTO800C	800-1600	800	800/6	12-18	9.6	200	250	80	30-250	0.8-3.0	20-400	3.1/2400	0.024	115	19-25	E6/E8
GTO1000C	800-1600	1000	1000/6	12-18	12	200	250	100	30-300	0.8-3.0	20-400	3.1/3000	0.022	115	21-30	E8
GTO1200C	800-1600	1200	800/8	8-15	14	200	250	100	30-300	0.8-3.0	20-400	3.1/3000	0.022	115	21-30	E8/E9
