| Prod Model: |
Contain Cargo Train GPS Tracking |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tk104 Weight: |
300g |
| Brand Name: |
Coban Real Time Tracking GPS104 |
| Features: |
Waterproof Magnetic, External Internal Antenna |
| Warranty Time: |
1 Year |
| Certificate: |
Ce FCC RoHS |
| Big Battery: |
3.7V 6000mA/H Polymer Battery |
| Size: |
94mm*60mm*38mm |
| GPS Accuracy: |
5m |
| Car Security: |
Shut Car Engine Remotely |
| External Power: |
DC 12 V -24V |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
Real Time Tracking GPS104 |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description

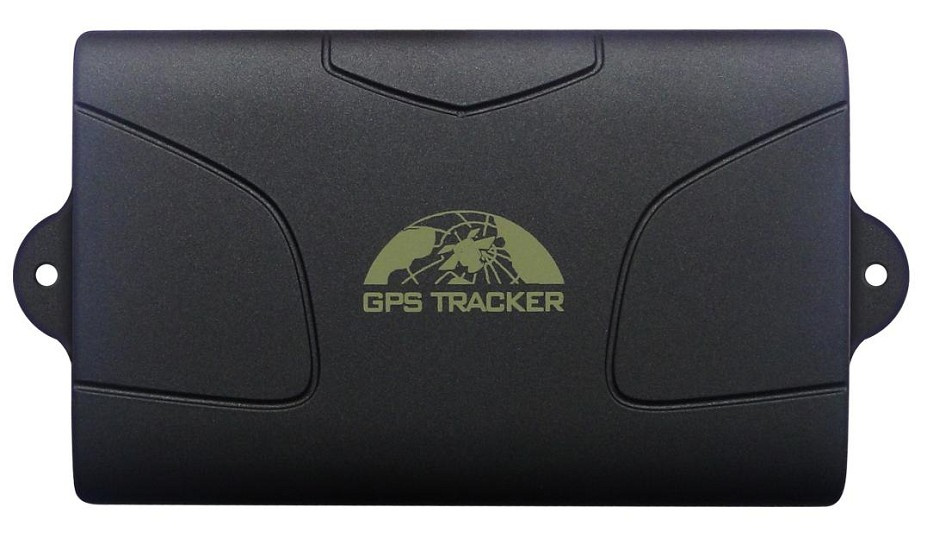

Big Battery GPS Tracker For Contain Cargo Train Tracking with Real Time Tracking
1. Main Features
1.1 Waterproof shell
1.2 Built-in large capacity 6000MA battery, standby about 4 months in sleep mode and 12 months in deep sleep mode.
1.3 Powerful magnets to absorb to vehicle firmly.
1.4 Real-time tracking, retrieve of lost vehicles, cargo.
1.5 Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
1.6 Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time tracking on web based server.
1.7 Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation, convenient and quick.
1.8 Support for external GSM antenna, GPS antenna, and external power supply for the tracker to be installed on the device which can provide power for long-term using.
2. Applications
Application: Locating and tracking service for cars, trucks, container trucks, special vehicles, cargo and criminal investigation officer.

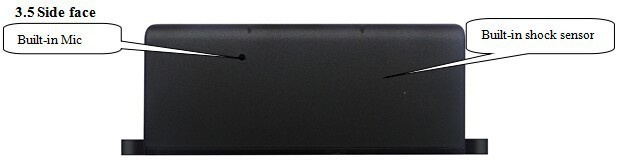

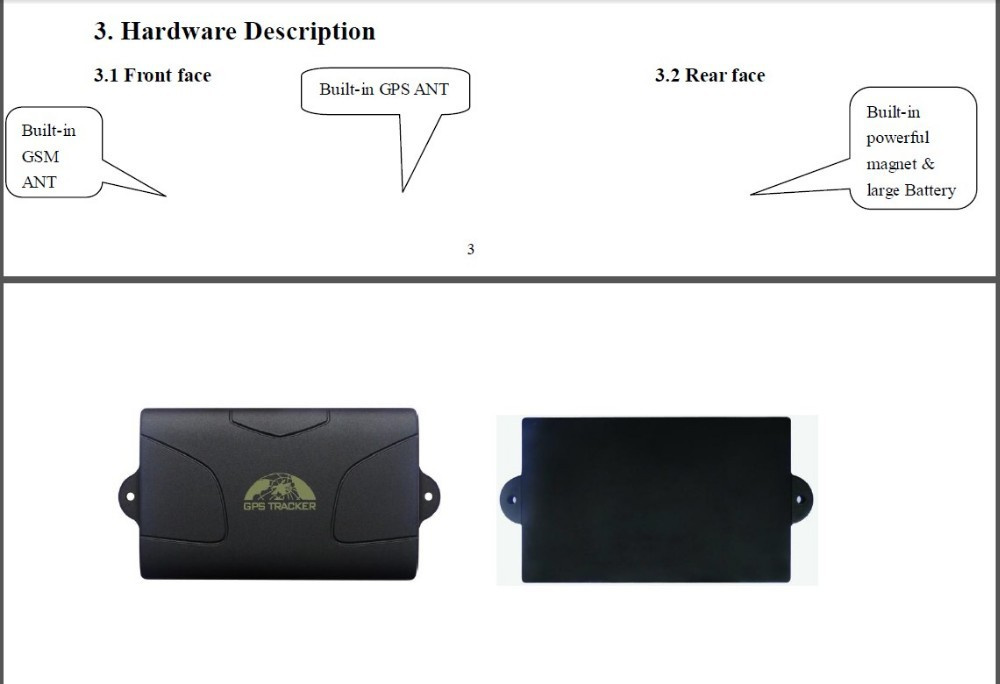

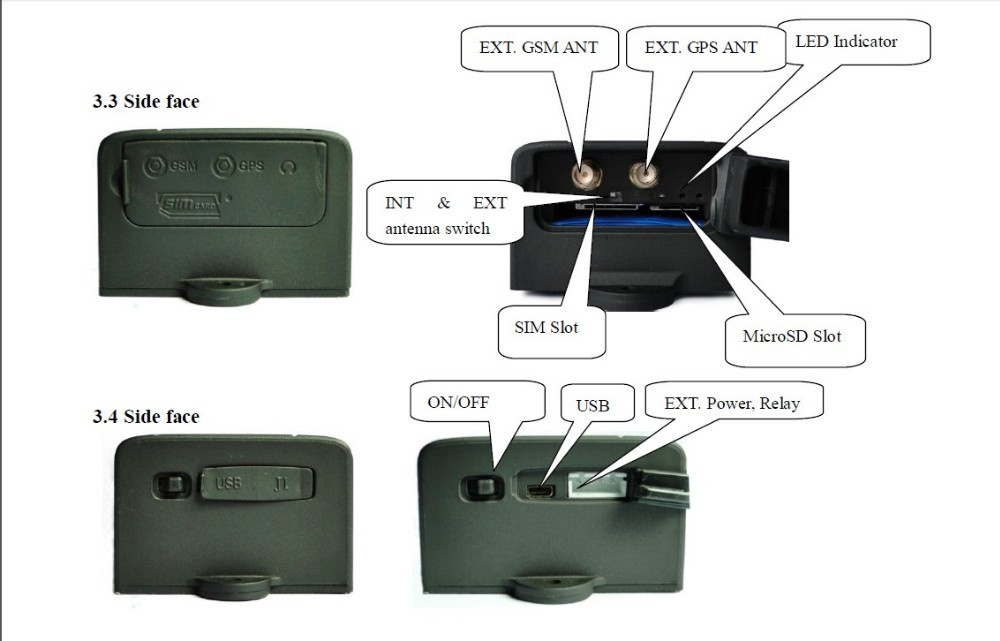

3. Hardware Description

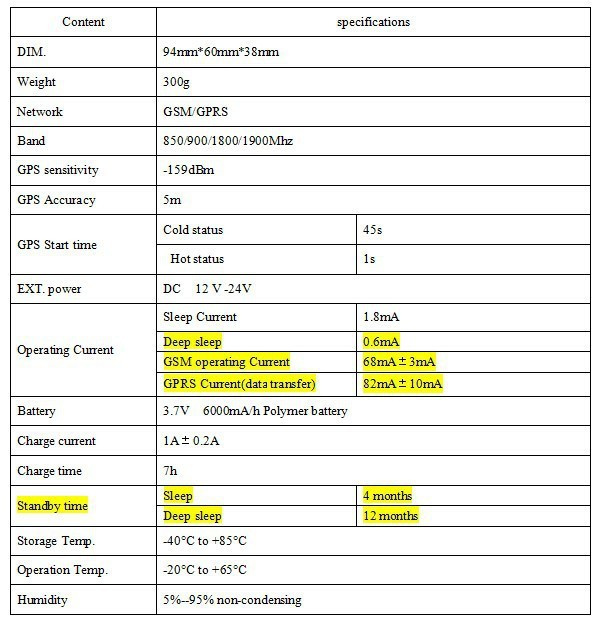

4.Specifictions
Installation and operating
1. Production installation
1.1 The product is easy to install. The built-in powerful magnet can make it to be directly adsorbed on the iron objects.
1.2 Built-in GPS and GSM antenna, external antenna can be optional.
1.3 The tracker is waterproof, but please still avoids the long-term placement in the places of water infiltration.

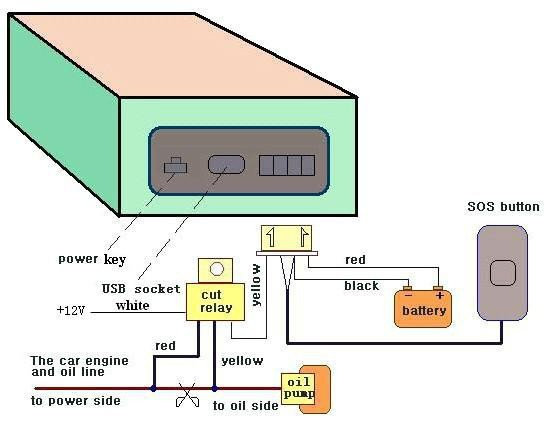

1.4 If you need an external power supply, cut oil & power system and SOS feature, please find 4PIN main wire,
wiring diagram as follows:
2. INT & EXT switch
Switch to INT to change to use internal antenna; switch to EXT to change to use external antenna
3. SIM card installation

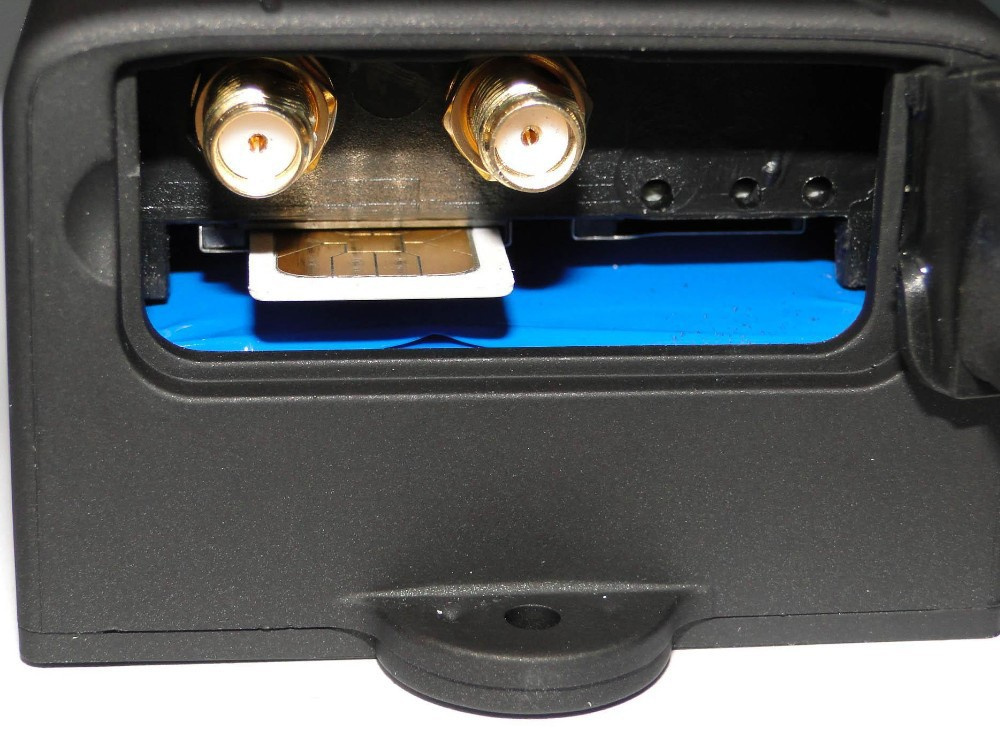

3.1 Open the waterproof sealant and insert SIM card as following picture shows, push it to the end to install SIM card correctly. The SIM card will pop up if press it after installed.
3.2 Please make sure that the SIM card is GSM network and able to execute the function of incoming calls display, no calls can be diverted and the PIN code is locked. The SMS format must be TXT format, and can't recognize the PDU format.
4. Battery Charging
III. Basic functions
1. ON/OFF Function
2. Initialization
3. Change Password
4. Add and Delete Authorization
5. Single Locating
6 Auto track continuously
6.1 Track with limited times upon time interval
6.2 Track with unlimited times upon time interval
6.3 Smart track upon time and distance interval
7. Automatic update positions of vehicle turns
8. GPS drift suppression
9. Get location in absolute street address
10. Location Based Service (LBS)
11 Check the Vehicle State.
12. Check IMEI
13. Terminal (local) Time Setting
14. Monitor (Voice Surveillance)
15 Data logging
16 Data Load
17 Forward the third parties' message
18 Charges Inquiry
19. Cut off the Oil and Power System
19.1 Execute immediately Mode
19.2. Execute depends on speed(Default mode)
20. Resume the Oil and Power System
21. Tracker's Hardware Resetting
22. Sleep Mode
22.1. Sleep by time
22.2. Sleep by shock sensor
22.3 Deep Sleep by Shock Sensor
22.4 Start Work on specific time
22.5 No sleep mode
IV. Alarm Function and settings
1. Geo-fence
2 Multi-area management
3 Movement alarm
4. Over Speed Alarm
5. Accident alarm (Option)
6. Shock Sensor Alarm
7. SOS
8. Low battery alarm
9. Power off alarm
10. GPS blind Spot alert
V. TCP/UDP switch
VI. Configure parameters by USB
VII. GPRS Setting
1. Setting up APN
2. GPRS User Name and password Setup
3. IP and Port Setup
4. Modes Switch between "SMS" and "GPRS"
5. Less GPRS traffic
6. GPRS tracking & monitoring platform
VIII. Set up monitor center number
Setup: send command "centernum+password+space+number" to tracker, it will reply"centernum ok". After setup monitor center number, the messages of auto track by sms will be set to this center number, if all alarms need to send to this number too, then please set up this center number as authorized number. E.G send centernum123456 13800138000.
Cancel: Send "nocenternum+password" to tracker, it will reply "no center num ok"
Package Include:
GPS Unit
AC adapter
Harness
Relay for stopping engine
External GSM antenna
External GPS antenna
Waterproof bag
Cigarette lighter car charger
package box
manual
