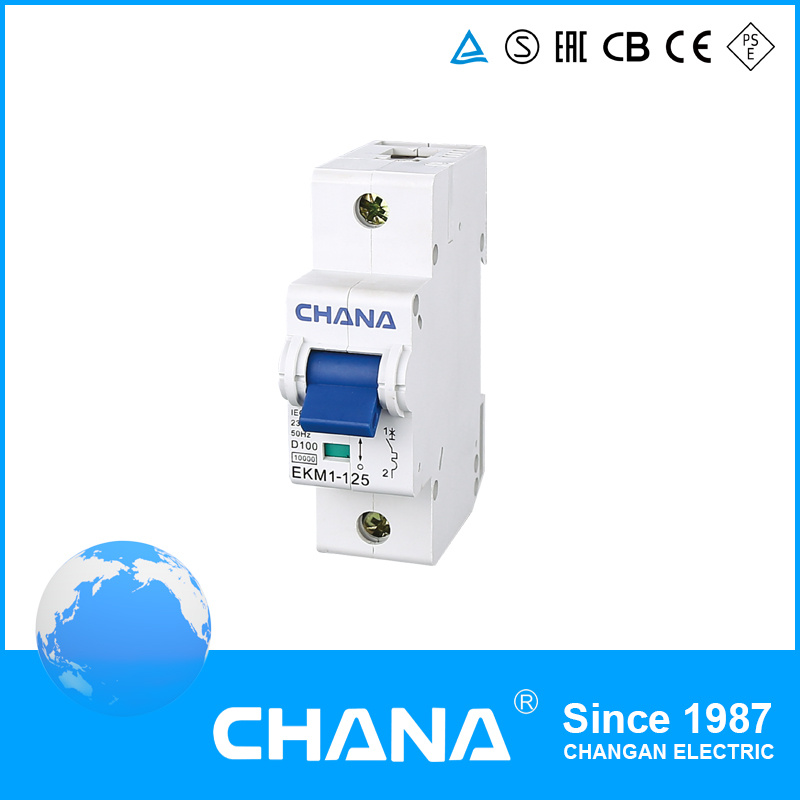

Big Current Ekm1-125 Ce and CB Approval MCB

Prod Model:	EKM1-125
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Electrical Life:	4000
Mechanical Life:	10000
Protection Degree:	IP20
Pollution Degree:	2
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	2
Certification:	TUV

Product Description

Product Description
Free samples can be provided!!!
Product Description

Electrical Features
Rated current In: 63, 80, 100, 125A
Poles: 1P, 2P, 3P, 4P
Rated voltage Ue: 240/415V
Insulation voltage Ui: 500V
Rated frequency: 50/60Hz
Rated breaking capacity: 6000A
Energy limiting class: 3
Rated impulse withstand voltage(1.2/50) Uimp: 4, 000V
Dielectric test voltage at ind. Freq. For 1 min: 2kV
Pollution degree: 2
Thermo-magnetic release characteristic: C, D

Mechanical Features
Electrical life: 4, 000
Mechanical life: 10, 000
Contact position indicator: Yes
Protection degree: IP20
Reference temperature for setting of thermal element: 30º C
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C

Installation
Terminal connection type: Pin-type busbar
Terminal size top/bottom for cable: 35mm2
Terminal size top/bottom for busbar: 35mm2
Tightening torque 2.5 N*m
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom
Combination with accessories
Auxiliary contact: Yes
Shunt release: Yes
Under voltage release: Yes
Alarm contact: Yes
Circuit Breaker's Dimensions(mm)

About US:
Changan Group Co.,Ltd was established at years of 1987,which is leading of industrial electric appliances,integrating the research&development,manufacture,trade,information service functions together. At present,group have passed ISO9001,ISO14001,OHASA18001 and acquired 3C certification for all products,all of our export product are strictly production according to ISO9001 and IEC standard,some product had got CE,CB,SMEKO,KEMA certification.The company has owned 10 son companies,50 sales branch,3000 employees ,areas of 0.4 million square meters,registered capital reached 26 million,yearly out put value reached 346 million.The company has the honor to be titled as "China star enterprise","China top 500 private enterprise","China top 500 in machinery industry","China top 10 of LV electric appliance"
Shipping:
1,Shipping can delivery by sea,air,or express according to customer requirement
Payment:
1. Small order under 3000USD T/T100% in advance
2. 30% deposit and 70% before shipping or after received copy of B/L
3. L/C also acceptable
Warranty:
1.We provide 1.5 year warranty.
2. Compensation will be paid if product had badly quality problem.
