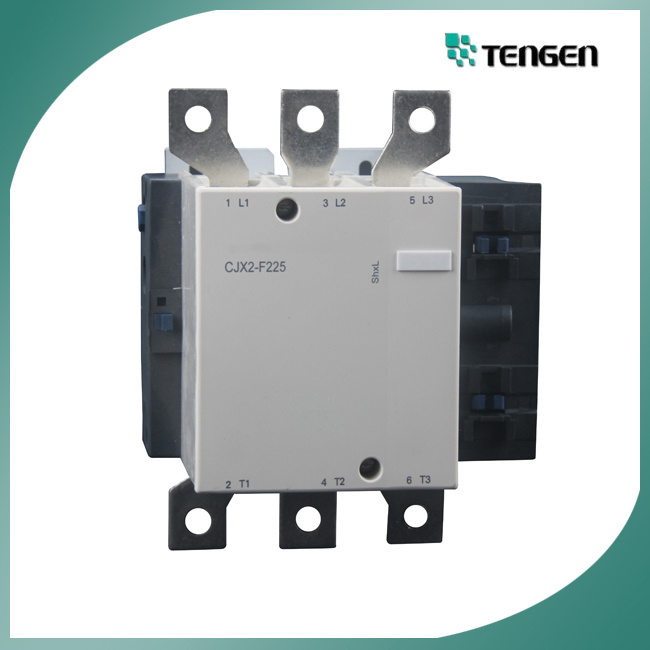

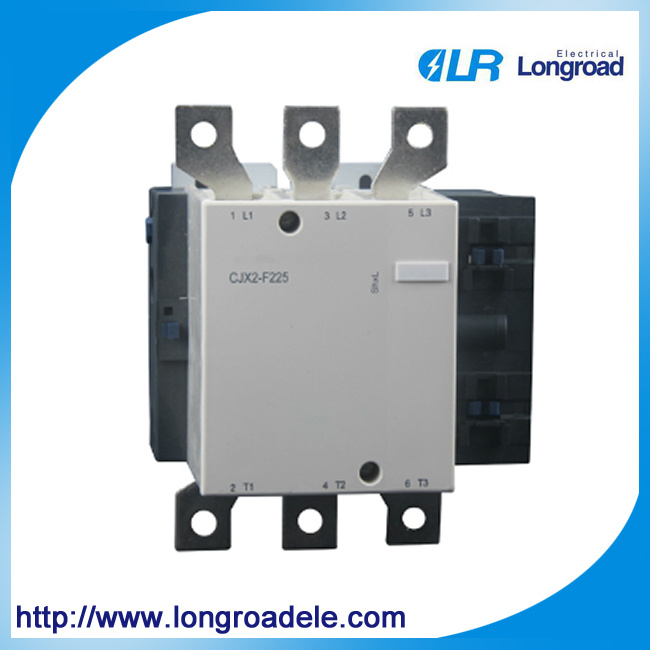

Big Current High Quality AC Contactor

Name: Big Current High Quality AC Contactor
Brand: all-electronics-online.com
SKU: 777926735
Availability: InStock
Rating: 4.7 (74 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC1-F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Theory:	Electromagnetic Relay
Rated Voltage:	380V AC 50/ 60Hz
Rated Current (a):	800A
Model:	Cjx2-F265

Product Description

Application
CJX2-F AC contactor is suitable for using in the circuits u to the rated voltage 380V AC 50/ 60Hz, current 800A, for long distance breaking circuit and frequently starting or controlling the motor. It also can be sed for the conntrol of distribution circuits of rated current from 115A to 800A. It conforms to IEC60947-4-1.
Specification

Type		LC1-F115	LC1-F150	LC1-F185	LC1-F225	LC1-F265	LC1-F330
Rated working current (A)	AC-3	115	150	185	225	265	330
Rated working current (A)	AC-1	200	250	275	315	350	400
Standard power ratings of 3-phase motors AC-3 (KW)	220/230V	30	40	55	63	75	100
	380/400V	55	75	90	110	132	160
	415V	59	80	100	110	140	180
	440V	59	80	400	110	140	200
	500V	75	90	110	129	160	200
	660/690V	80	100	110	129	160	200
	1000V	65	65	100	100	147	160

Type		LC1-F400	LC1-F500	LC1-F630	LC1-F780	LC1-F800
Rated working current (A)	AC-3	400	500	630	780	800
Rated working current (A)	AC-1	500	700	1000	1500	1500
Standard power ratings of 3-phase motors AC-3 (KW)	220/230V	110	147	200	220	220
	380/400V	200	250	335	400	400
	415V	200	280	375	125	420
	440	250	295	400	425	420
	500V	257	355	400	450	430
	660/690V	280	335	450	475	470
	1000V	185	335	450	450	450
