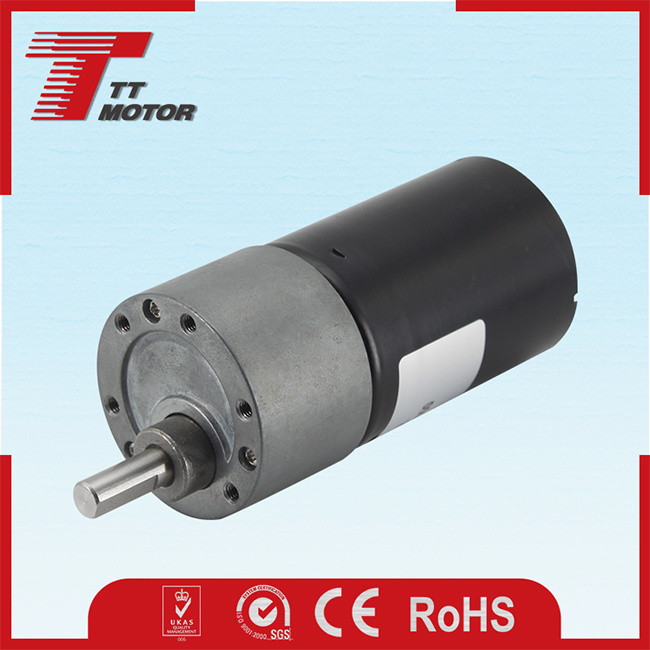

Big torque application power tools brushless DC gear motor

Prod Model:	DC Brushless Gear motor GM37-TEC3650
Product Name:	DC Brushless Gear motor GM37-TEC3650
Rated Voltage:	24V
No-Load Speed:	6500r/min
No-Load Current:	200mA
Rated Speed:	5400r/min
Rated Torque:	200g.cm
Rated Current:	1000mA
Output Power:	11.5W
Stall Torque:	1150g.cm
Stall Current:	2.0A
Application:	Power Tools
Operating Speed:	Low Speed
Structure And Working Principle:	Brushless
Excitation Mode:	Permanent Magnet
Casing Protection:	Drip-proof
Type:	DC Brushless Gear Motor
Certification:	RoHS CE
Brand:	TT Motor

Product Description

Big torque application power tools brushless dc gear motor

Main Features
1.OEM/ODM 37mm spur gearbox plus TEC3650&3640 brushless motor
2.Small size dc gear motor with low speed and big torque
3.37mm gear motor provide 1.0Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.Reduction ratio:6,10,19,30,44,56,90,131,169,270,506,810

Motor model no.	Rated voltage	No-load speed	No-load current	Rated speed	Rated torque	Rated current	Output power	Stall torque	Stall current
	VDC	r/min	mA	r/min	g.cm	mA	W	g.cm	A
TEC3650-2465	24	6500	200	5400	200	1000	11.5	1150	2.0
TEC3650-2440	24	4000	120	3200	200	600	6.6	1000	2.0
TEC3650-1245	12	4500	150	3500	230	880	8.3	820	2.5

Gear motor technical data : GM37-TEC3650-2465-xxx

Reduction ratio	6	10	30	44	56	90	169	270	506	810
Length mm	19	19	21.5	24	24	24	26.5	26.5	29	29
No-load speed rpm	1000	650	215	145	110	70	38	24	12.5	8
Rated speed rpm	830	540	180	122	95	65	34	22	11	7
Rated torque kg.cm	0.7	1.2	3.6	5.2	6.5	10	10	10	10	10
Max.momentary tolerance torque kg.cm	2	5	15	15	15	15	15	15	15	15

Gear motor technical data : GM37-TEC3650-2440-xxx

Reduction ratio	6	10	30	44	56	90	169	270	506	810
Length mm	19	19	21.5	24	24	24	26.5	26.5	29	29
No-load speed rpm	620	380	130	90	70	43	23	14.5	7.5	4.5
Rated speed rpm	500	320	100	72	55	36	19	12.5	6.5	4
Rated torque kg.cm	0.7	1.2	3.6	5.2	6.5	10	10	10	10	10
Max.momentary tolerance torque kg.cm	2	5	15	15	15	15	15	15	15	15

Gear motor technical data : GM37-TEC3650-1245-xxx

Reduction ratio	6	10	30	44	56	90	169	270	506	810
Length mm	19	19	21.5	24	24	24	26.5	26.5	29	29
No-load speed rpm	710	430	150	100	80	50	27	17	9	6
Rated speed rpm	580	350	115	80	62	39	21	13	7	5
Rated torque kg.cm	0.9	1.6	4.1	6.1	7.7	10	10	10	10	10
Max.momentary tolerance torque kg.cm	3.5	5.7	15	15	15	15	15	15	15	15

Product Application

Other Applications:
Business Machines:	ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:	Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment and Gaming:	Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies:	Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines.
Lawn and Garden:	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care:	Hair Cutting, Hair Care, Massagers.
Power Tools:	Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Camera and Optical:	Video, Cameras, Projectors.
