| Prod Model: |
BMP series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
BMP Series |
| Types: |
Winding Types |
| Rated Voltage: |
5.5V 7.5V |
| Rated Capacitance: |
0.22fto 30f |
| Temperature Range: |
-40c to +65c |
| Delivery Detail: |
7 to 15 Days |
| Mounting Type: |
Wire Lead |
| Type: |
Supercapacitor |
| Application: |
Automobile |
| Package Type: |
Through Hole |
| Capacitance: |
0.1f to 30f |
| Usage: |
Backup Power ,Energy Storage |
| Tuning: |
Supercapacitor |
Product Description
LIAONING BROTHER ELECTRONICS TECHNOLOGY CO., LTDFeaturesInternal tandem structure , low internal resistance, High power density;
Comply with ROHS standards, no Cd, Pb and other pollutants;
Long charge-discharge cycle life up to one million times;
Ultra-low leakage current, suitable for use with battery
Whole sealing products suitable for use in damp environment.
Various specifications,can meet customer's different requirements;
High quality, reasonable price, help you to lowest your production cost;
SpecificationsGreat price, new and original!
Part Number | Nominal
Voltage
V dc |
Capacitance
F |
MAX ESR
1kHz,mΩ | L×W×H
±1.0(mm) | Lead space
F±0.5
(mm) |
| BMP005R5L473FA | 5.5 | 0.047 | 900 | 11×6×13 | 7 |
| BMP005R5L104FA | 5.5 | 0.1 | 1000 | 11×6×13 | 7 |
| BMP005R5L224FA | 5.5 | 0.22 | 800 | 13×7×14 | 9 |
| BMP005R5L474FA | 5.5 | 0.47 | 600 | 17×9×15 | 12 |
| BMP005R5L105FA | 5.5 | 1.0 | 280 | 17×9×21 | 12 |
| BMP005R5L155FA | 5.5 | 1.5 | 200 | 17×9×21 | 12 |
| BMP005R5L155FH | 5.5 | 1.5 | 160 | 21×10×21 | 15 |
| BMP005R5L205FA | 5.5 | 2.0 | 140 | 26×13×22 | 18 |
| BMP005R5L255FA | 5.5 | 2.5 | 140 | 21×10×21 | 15 |
| BMP005R5L305FA | 5.5 | 3.0 | 140 | 21×10×21 | 15 |
| BMP005R5L405FA | 5.5 | 4.0 | 100 | 26×13×22 | 18 |
| BMP005R5L505FA | 5.5 | 5 | 100 | 26×13×27 | 18 |
| BMP005R5L805FA | 5.5 | 8.0 | 90 | 26×13×27 | 18 |
| BMP005R5L106FA | 5.5 | 10 | 50 | 33×17×27 | 24 |
| BMP005R5L156FA | 5.5 | 15 | 50 | 33×17×35 | 24 |
| BMP007R5L104FA | 7.5 | 0.1 | 1200 | 19.5×7×14 | 10 |
| BMP007R5L334FA | 7.5 | 0.33 | 600 | 25×9×15 | 14 |
| BMP007R5L105FA | 7.5 | 1.0 | 300 | 25×9×21 | 14 |
| BMP007R5L155FA | 7.5 | 1.5 | 210 | 39×13×22 | 21 |
| BMP007R5L205FA | 7.5 | 2.0 | 210 | 31×10×21 | 16 |
| BMP007R5L255FA | 7.5 | 2.5 | 150 | 39×13×22 | 21 |
Applications1.Intelligent electrical appliance,electronic toy
2.Intelligent door lock,MP3,PDA,DVD,VTR,GPS,PLC
3.UPS,electric cooker, self-powered super flashlight,laptop
4.Electronic energy meters,water meter ,electricity mete
Packiaging & DeliveryPlastic tube, standard export carton
Delivery Detail:5~20 days after order
100% On-time shiping.
1. All goods can be ship out by Air, Sea, Express(DHL, FeDex, TNT, UPS, EMS, SF)
2. Super capacitors got products certification from authority.
Our Service1. Various other dimensions of BIGCAP super capacitor to meet any requirments.
2.We can supply our customer high quality products with a reasonable price, by using our products, customers can cut off their production cost and assure their products' stability.
3.We can design and produce products according to customer's requirments.
4.With our professional technical team,we can provide our customer with professional technical support.
5.More importantly,we will be five-star service,high quality and low price!
Our advantagesStrict production process control:
Always follow 6S standard and ISO90001 requirement to keep product in quality.
Advanced technology:
Our single capacitors rate voltage is up to 3.0V,high temperature is up to 85C.
BIGCAP technique upgrade rapidly and surprise our customers every year.
Professional team:
Our R&D staff have more than 12 years experience in super capacitors filed and have a lot of experience in developing, designing and producing super capacitors.
100% full inspection
Every single capacitors are fully inspected by its unique processand the percent of pass is 100%.
Liaoning Brother Electronics Technology Co., Ltd is a manufacturer of the Bigcap® Super capacitors which is located at High-TechTechnologyIndustrial Park, Chaoyang, Liaoning. Favorable location endows our company with easy access to transportation and communication.
Our company specializes in the design, research, development, production and sale of various super capacitors which exhibit complete specifications and reliable quality. The capacity of single super capacitor ranges from 0.01F to 3000F and our products extend to cover more than 100 types in around ten series, such as BRE, BRP and BME. So far our products have come into extensive use in such areas as intelligent instruments (gas meter, water meter, ammeter, etc. ), electrical equipment, medical equipment, solar and wind energy products, toys, and electric cars. Serving as back-up source, our products supplies high power in short term.
Our research team is highly experienced in the manufacturing of super capacitors. Our management has been engaging in the management of production and R&D of super capacitor for 12 years, our main technical personnel have 8 to 10 years' experience in the design and manufacturing of this field and our workers have more than 5 years' experience in the processing of super capacitors. Our work team that is made up of the technical elites of the industry commits to turning out first-rate super capacitors of China and to enabling our products to play a leading role in international brands.
By carrying forward the valuable experience in the super capacitor industry and combining the advanced electrode activation technology, now our products exhibit advanced technical level in China and stable quality. Our BIGCAP® Super capacitor series is characterized by reissuance to high voltage (Single super capacitor can operate in 2.8V. ), great stability in long-term operation, wide temperature range (maximum temp.: 85º C), ultralow internal resistance that applies to electric discharge of medium and large power.

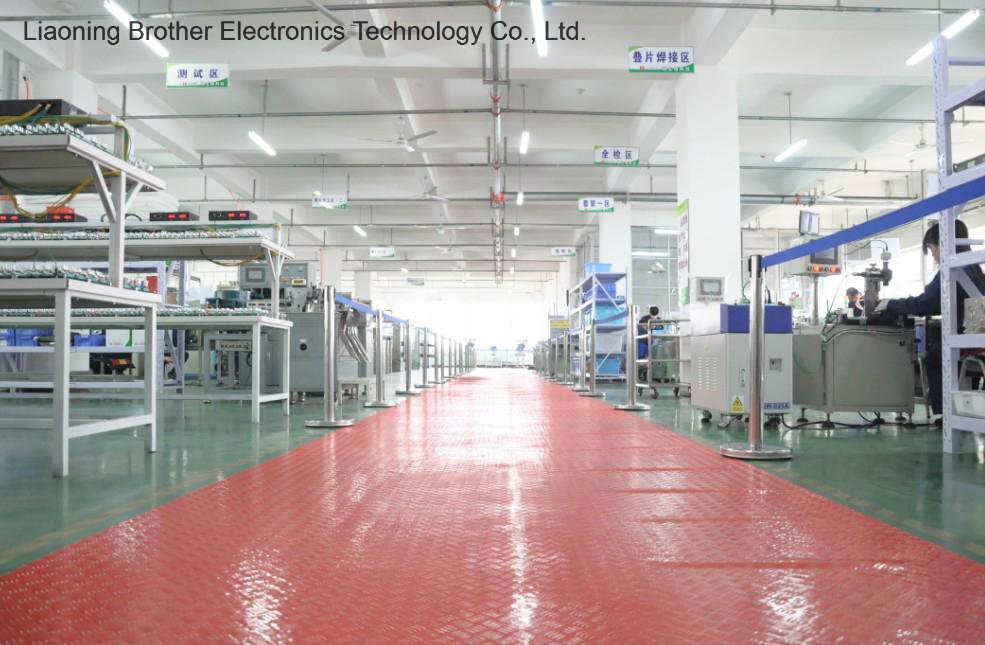

Our production facilities are characterized by high automation degree and high precision. Our company carries out the Six Sigma management system and has obtained the ISO9001: 2008 quality management system and the ISO14001: 2004 environmental management system. Our products are environmental-friendly and comply with the RoHS of the EU.
Our quality policy is win good market reputation through scientific quality management, elaborate production process, powerful technical support and excellent after-sales service.
Bigcap Technology relies on product quality to survive and progress. Each one of our product is our cell, the quality of which is closely related to the life of Bigcap. To offer satisfactory products to customers is the bounden duty of all our employees.
