Bis Approval Waterproof IP 67 300W Slim LED Switching Transformer for LED Signage

Name: Bis Approval Waterproof IP 67 300W Slim LED Switching Transformer for LED Signage
Brand: all-electronics-online.com
SKU: 723538912
Availability: InStock
Rating: 4.5 (116 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12E300C
Output:	300W
Input Voltage:	180-250VAC
Output Voltage:	12V
Efficiency:	up to 90%
IP Rating:	IP 67
Certificates/Standards:	Ce, Bis
Weight(Kg):	1.6 Kg
Packing Information:	10 PCS/ Carton, G.W 17 Kg
Power Factor:	0.65
Dimensions(LWH):	3078536mm
Usage:	Construction
Output Type:	Triple
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Certification:	Bis
Power Supply Voltage:	180-250VAC
Brand:	Neonpro

Product Description

Bis Approval Waterproof IP 67 300W Slim LED Switching Transformer for LED Signage

Features
*Fully sealed & waterproof, IP67
*Constant voltage output
*High efficiency 90%
*Short circuit and overload protection
*100% burn-in test
*2 years warrenty

Applications
*LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc...
*Slim body, specially for application with narrow space, such as cove light, light box, channel letter...

Specification

Input voltage	180-250 VAC 50/60 Hz
Max. power	300W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	up to 90%
AC inrush current(max.)	Cold start, 46A@230VAC
Output voltage	12VDC ± 5%
Output current	25A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25ºC~+40ºC
Installation	Outdoor waterproof
IP rating	IP 67
Cooling	Free air convection
Certificates/standards	CE, BIS

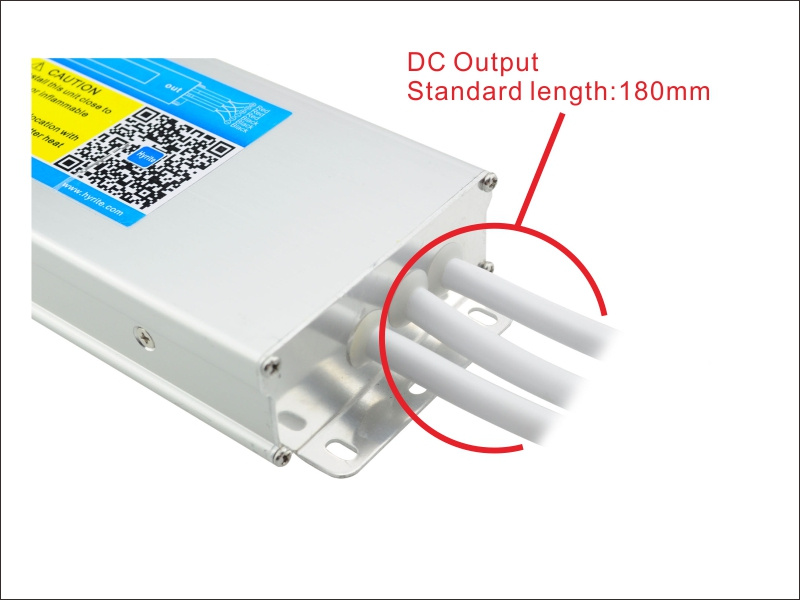

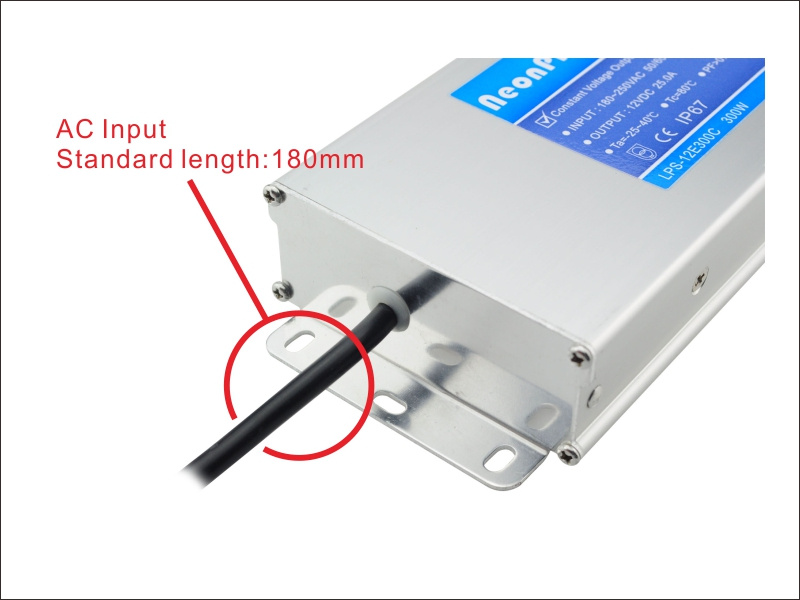

Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm)

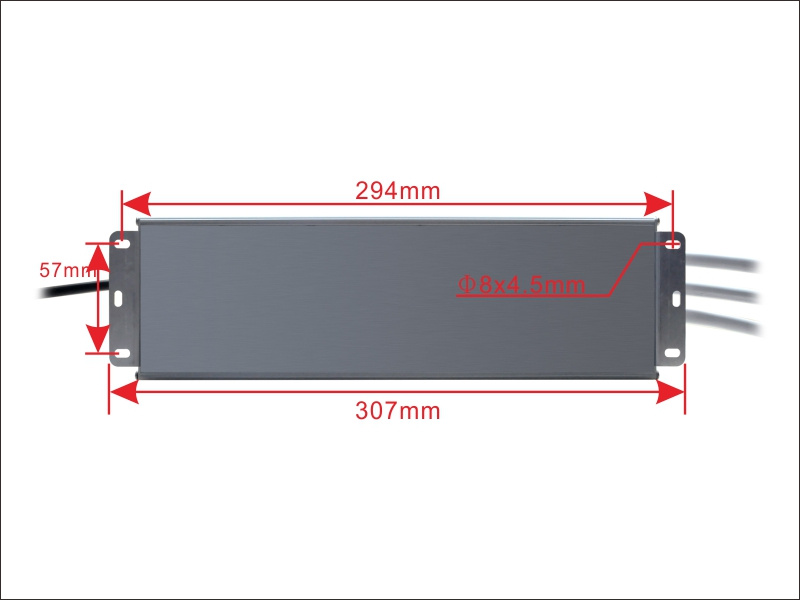

*Dimensions(LWH)*	3078536mm
Weight(kg)	1.6 KG
Packing information	10 PCS/Carton, G.W 17 KG
*Packing Dimensions(LWH)*	455x360x155mm

Our Strengths
*More than 20 years' experience in indoor & outdoor Lighting application
*Professional sales team and strong R&D forces
*Good quality with strict production control
*Customization and OEM service available

Successful Applications & Workshops & Exhibitions

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
