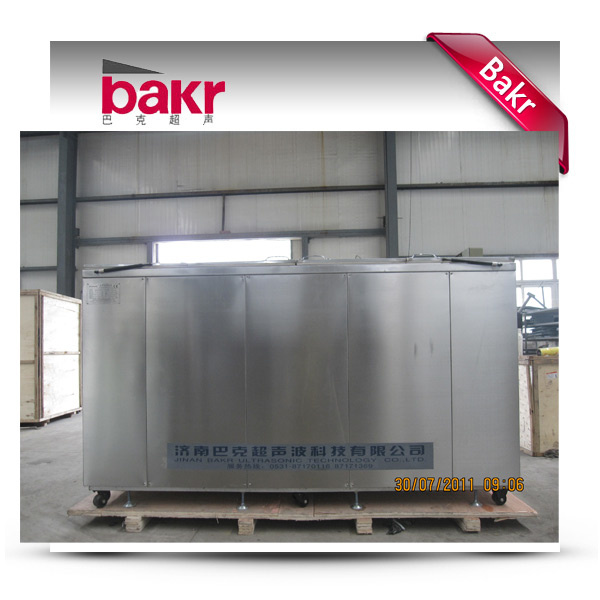

Bk-12000 Engine Cylinder Ultrasonic Cleaning
| Price: |
US $ 30000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
Bk-12000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tank Size: |
2200X1200X1000mm |
| Style: |
Integrated Style |
| Machine Type: |
Industrial Washer |
| Fuel: |
Electric |
| Clean Type: |
Industrial Ultrasonic Cleaner |
| Cleaning Process: |
Solvent Cleaning |
| Application: |
Industry Parts Cleaning |
| Automation: |
Manual |
| Certification: |
["Ce, Ce, ISO, ISO", "Ce, ISO"] |
| Cleaning Media: |
Solvent Cleaning |
Product Description
ULTRASONIC CLEANING USES high frequency sound waves to agitate in an aqueous or organic compound. Cavitation bubbles induced by the agitation act on contaminants adhering to substrates like metals, plastics, glass, rubber, and ceramics. This action also penetrates blind holes, cracks, and recesses. The intention is to thoroughly remove all traces of contamination tightly adhering or embedded onto solid surfaces. Water or other solvents can be used, depending on the type of contamination and the workpiece. Contaminants can include dust, dirt, oil, pigments, grease, polishing compounds, flux agents, fingerprints, soot wax and mold release agents, biological soil like blood, and so on. Ultrasonic cleaning can be used for a wide range of workpiece shapes, sizes and materials, and may not require the part to be disassembled prior to cleaningCleaning of silica chip ,electronic and electrical ,medical machinery,oil pump and oil nozzle ,parts of compressor,spinneret plate,filter element ,anilox roll and all kinds of metallic part.On the more industrial side, ultrasonic cleaning equipment may be used for:Motor and engine (Truck engine,car motor,locomotive motor,et Machine parts or components Tools Metal parts (aluminum, brass, silver, etc.) Medical instruments and devices Dental instrument and tools Automotive parts (a carb, fuel, injector, etc) PCB (printed circuit board or micro chips)Ultrasonic cleaning can also be used for more personal or small business related items such as: Jewelry cleaning Weapon cleaning (firearm, handgun, shot gun parts) Dentures, teeth or tooth cleaning Window blind cleaning Cleaning of watch or clock parts Glass and lens cleaning Cleaning of hobby items (coin collection, small figurines, etc.) Golf club cleaning Cleaning of a cd or vinyl record
| Model | BK-1800 | BK-2400 | BK-3600 | BK-4800 | BK-6000 | BK-7200 |
BK-10000
| BK-12000 |
| Ultrasonic Power(KW) | 1.8KW | 2.8KW | 3.6KW | 5.2KW | 7.2KW | 8.0KW | 10.8KW | 21.6KW |
| Heating Power(KW) | 4KW | 6KW | 9KW | 12KW | 15KW | 18KW | 20 KW | 32KW |
| Voltage | 380V | 380V | 380V | 380V | 380V | 380V | 380V | 380V |
Tank Size
(LxWxHmm) | 600*480*450 | 750*550*480 | 1000*550*560 | 1200*650*650 | 1450*720*730 | 1500*800*800 | 1700*900*800 | 2200*1200*1000 |
Outline Size
(LxWxHmm) | 760*770*680 | 910*850*770 | 1160*850*870 | 1400*1030*980 | 1650*1190*1100 | 1700*1280*1150 | 1960*1450*1150 | 2200*1800*1350 |
| Ultrasonic direction | 3 sides | 3 sides | 3 sides | 3 sides | 3 sides | 3 sides | 3 sides | 3 sides |
| Dregs tank | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Overflow | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Jinan Bakr Ultrasonic Technology Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of ultrasonic cleaning equipment. We are located in Jinan city, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.
Covering an area of 400, 000 square meters, we now have over 200 employees and an annual sales figure that exceeds USD8, 000, 000. We are currently exporting 60% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001 & CE certifications.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Japan, Korea, Taiwan area, Thailand, Malaysia, Indonesia, Turkey, Syria, India, Pakistan, Brazil, Mexico, the USA, Europe, Canada, etc.
If you are interested in any of our products or would like to discuss a customized order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
