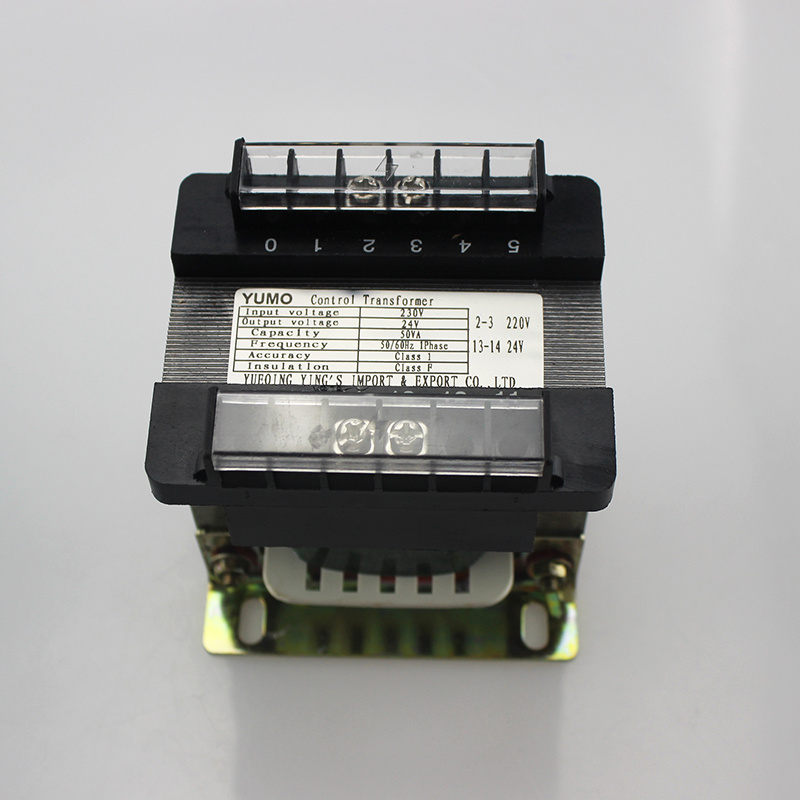

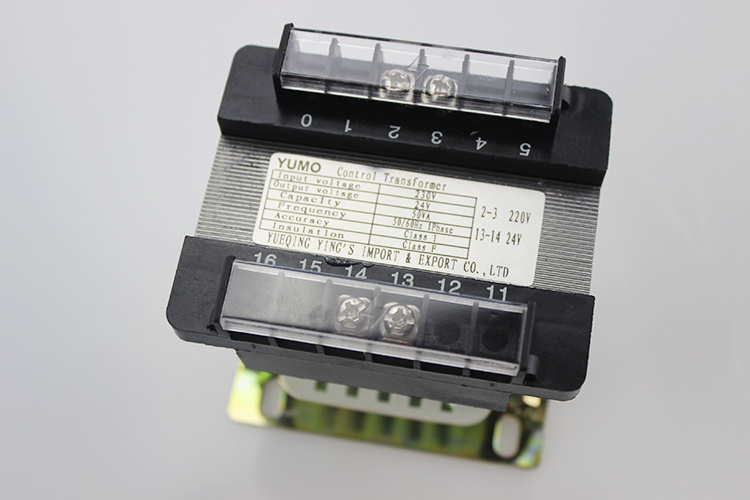

Bk 50va Control Transformer

Name: Bk 50va Control Transformer
Brand: all-electronics-online.com
SKU: 728112042
Availability: InStock
Rating: 4.4 (90 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BK 50va
Model Number:	Bk 50va
Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer
Brand:	Yumo

Product Description

Specifications:
BK Control transformer
Full load temperature rise no more 85 degree
Warranty:1year
10 years experience
CE FCC ISO9001:2008
Application:
BK(DK) Series control transformer(Hereafter call transformer) is suitable for circuit of 50~60Hz, voltage up to 500V, usually applied as power supply for machine tool electrical appliances, locallightings and indicator lamps power supply.
Structure Character:
According to different structures, BK transformer belongs to shell type, and according to the installation mode, it belongs to vertical type.
Specification of BK Control Transformer

Rated capacity (VA)	Primary voltage(V)	Secondary voltage(V)	Outline size(mm)
Rated capacity (VA)	Primary voltage(V)	Secondary voltage(V)	B Max	D Max	H Max	A	C
25/50			80/85	70/71	89/94	56	51
100			103	83	110	76	51
150			103	91	110	76	64
200			103	103	110	76	74
250		6.3, 12, 24	121	108	126	90	78
300	220	36, 110	121	113	126	90	83
400	380	127, 220	151	100	152	110	76
500	or customizable	380	151	110	152	110	82
700		or customizable	151	144	152	110	107
1000			151	170	152	110	107
1500			240	190	240	130	110
2000			240	210	240	130	120
2500			240	250	245	130	150
3000			240	250	245	130	150
4000			320	240	360	200	125
5000			320	240	360	200	125

Ying's Electric is situated in the largest Chinese low-voltage electrical industry base--Liushi town, where the company's manufacturing partners produce over two billion US dollar low-voltage electrical products every year and keep more than 50% of Chinese market.

As the leading exporter of Chinese electrical products, Ying's Electric organizes production according to international standards and trades with honesty and efficiency. At present, the top ten Chinese electrical manufacturer groups are working under the agreement with Ying's Electric. These manufacturer groups have all gained ISO9002 certificate which ensures the quality of their products. Ying's Electric also helps its manufacturing partners with better raw material, equipments and new technology. Now, about 50 million US dollar low-voltage electrical products are sold to Asia, MID-east, West Africa, West Europe, South America and South Africa yearly. The prices of the Chinese low-voltage electrical products are so competitive that they are attracting more and more international clients.

In recent years, Ying's Electric has been setting up the agencies worldwide. And we are looking forward to establish a long-term business relation with you.

Our Products

Ying's Electric products cover full ranges of switchgears and control relays, circuit breakers, fuses, voltage regulators, voltage stabilizers, meter, distribution box, wall switch, floor switch and more. Nowadays we also bring in the automation components, such as PLC, inverter, soft starter, counter, sensor and more. They are all made according to IEC standards, which are recognized worldwide. As required, some of our products have been tested and approved by CE, UL, VDE, etc.

Our Prices

Because of the great economics of scale of our manufacturers and the low labor cost in China, we are able to offer the best prices on the market without sacrifice the quality of Ying's products.

Our Services

With fully computerized system of technical support, stock control and administration, we provide our customers efficient and reliable services. And we provide guarantees to cover you.

Our approach to the future

As the third wave pushes everybody into a new age of human history, everything is changing. So is the way to do business. Currently, an interactive website is being constructed for Ying's Electric. That will give you another way to obtain our service and it will be more convenient and quicker. Certainly, all the staff of Ying's Electric and its agencies are always on standby to provide you the service you deserve.
