Black Marking, Color Marking, Depth Engraving, Thin Metals Cutting

Name: Black Marking, Color Marking, Depth Engraving, Thin Metals Cutting
Brand: all-electronics-online.com
SKU: 681177671
Availability: InStock
Rating: 4.7 (121 reviews)

Price:	US $ 3500/Set
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YLP-20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.:	Ylp-20 Series
Certification:	SGS, Ce
Control:	Automatic
Condition:	New
Power:	10watt, 20watt, 30watt,50watt
Export Markets:	Global
Engraving Machine Type:	Laser Engraving Machine
Laser Type:	Fiber Laser
Current:	AC
Usage:	Metel, Plastic

Product Description

Black Marking,Color Marking,Depth Engraving,Thin Metals Cutting

YLP-20

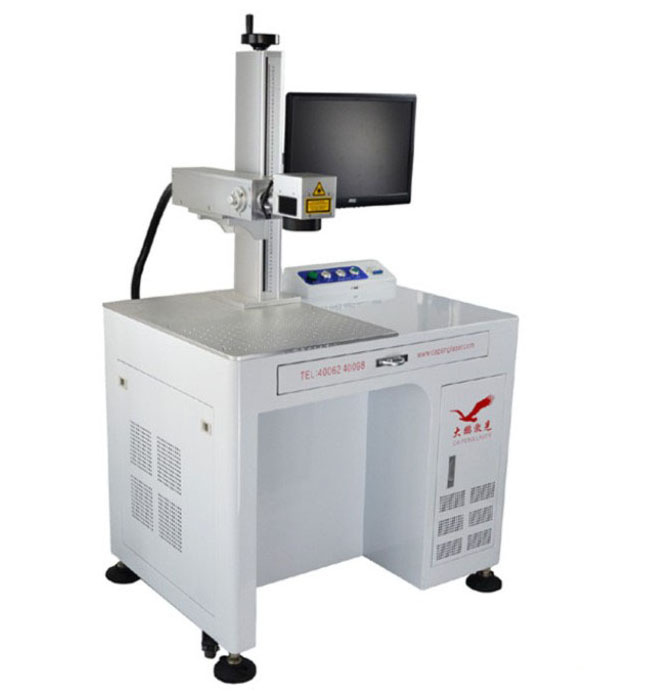

YLP-20 SERIES is our most compact Fiber laser engraving machine and ideal for manufacturers and mid-large business.

Model	YLP-15/20/30/50
Laser Power:	10W,20W,30W,50w
Wavelenth:	1064nm
Standard Marking Area:	110mm*110mm
Optional Marking Area:	160mm160mm,200mm200mm, 300mm*300mm
Minimum Line Width	0.02mm
Minimum letter	English: 0.2 x 0.2mm
Marking Depth	0 ~0.5mm
Location precision	≤0.01mm
Resetting positioning accuracy	0.002
Beam Quality	M2:1.2~1.8
Electrical Requirements:	Ac220V±10%.50HZ.5Amp
Cooling mode	Air cooled
Scan Head	High Precision Digital Scan Head
Unit Power	<0.6kw
Operational Temp Range	10-40C
Operational Humidity Range	5%-75%, Non-condensing
Warranty:	2 years on laser source
Dimensions:	79010501660mm
Net Weight	130KG

Features:

Easy to Use Automation Features	Sharp, High Contrast, Impact Free	High Speed Galvo Steering
Compact & Fast Set-Up	100,000 Hrs Laser Lifetime	2 Year Warranty
Turnkey System	Permanant Marking	Air Cooled/No Chiller needed
Tunable Pulse Rate	No routine maintenance/No Consumable	Digital I/O for Easy Operation
Red Aiming Pointer/No more mistakes	Solid Aluminum Top Work Surface & Swing Arm Laptop Stand	Portable Tabletop Units to Automated Production Systems Available

Software:

True Type Fonts	Single Stroke Fonts	Elliptical Text
Sequential Serial Numbers	Customizable Auto Dating	Barcodes
QR Codes and Data Matrix	UID Wizard	Logos
Photo Quality Images - JPG, TIF, GIF	Corel Draw, Adobe Illustrator	Raster Graphics
Vector Graphics	CAD Files

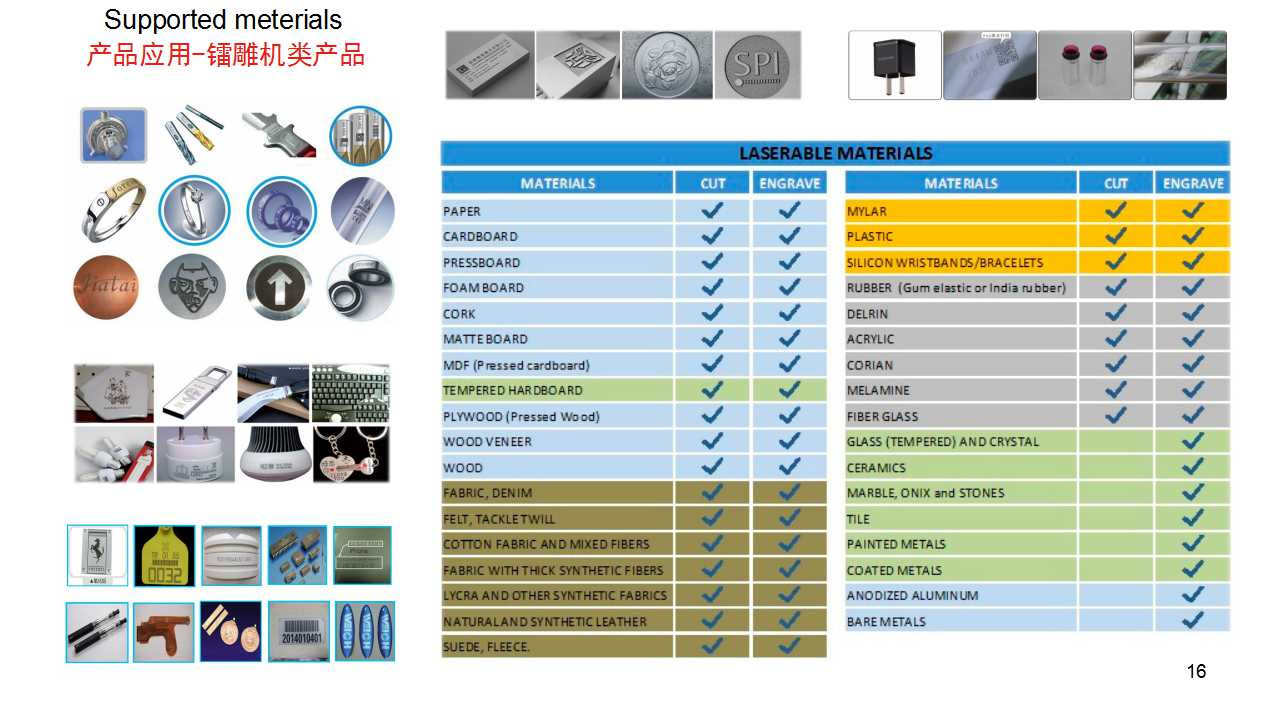

Materials:

Stainless Steel	Steel	Aluminum, Carbide
Nickel	Titanium	Cast Iron
Chrome	Painted Metal Alloys	Multi-Coated Metals
Plastics/Rubber	Backlit Buttons	Polycarbonate
PVC	Composites	Many more materials

Parts available:

Laser sources and spare parts FOR the laser machine manufacturers.

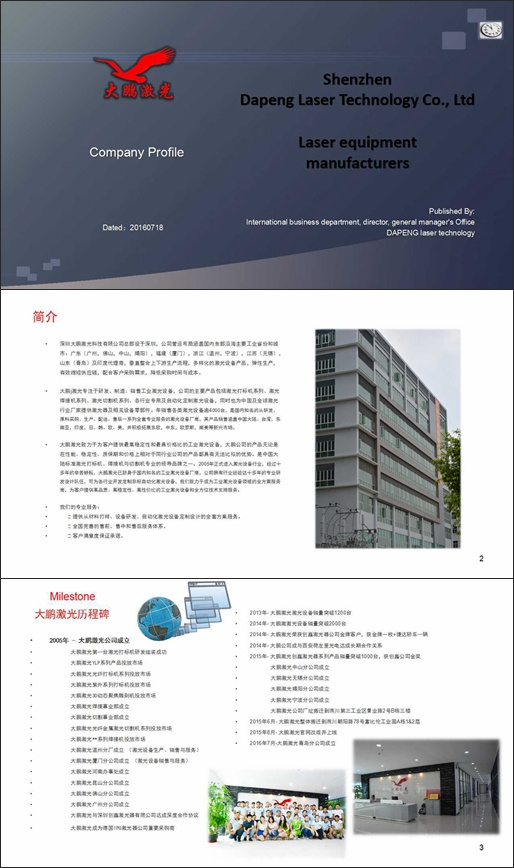

DAPENGLaser® Laser Marking Equipment Department

Founded in 2005, Shenzhen Dapeng Laser Technology Limited is the market leader in developing, manufacturing and servicing products and systems for laser marking, laser welding, laser cutting and engraving. The company provides equipment to a wide range of markets including medical industries, jewelry, automotive, aerospace, military, semiconductor and solar industries as well as the battery, electric vehicle, electronics and general industrial markets. With a decade of cumulative laser equipment design and manufacturing expertise, Dapeng Laser is able to offer standard and custom designs that solve challenging OEM applications. Dapeng Laser is CE and FDA certified. Our laser marker systems are highly precise, most reliable, and cost-effective. We have sold over thousands of systems worldwide for last 10 years. Our products can be found in Europe, America, Russia, India, Vietnam, Thailand, Indonesia, Egypt, Brazil, Colombia, and South Africa, among others.

Since our inception, customer support has been a top priority and that standard still remains today. We hope that we will have a chance to give you a great laser solution with Dapeng Laser products.

Our mission is to be a full service provider of industrial laser equipment that emphasize the quality, reliability, safety, cost effectiveness, and technical support.
