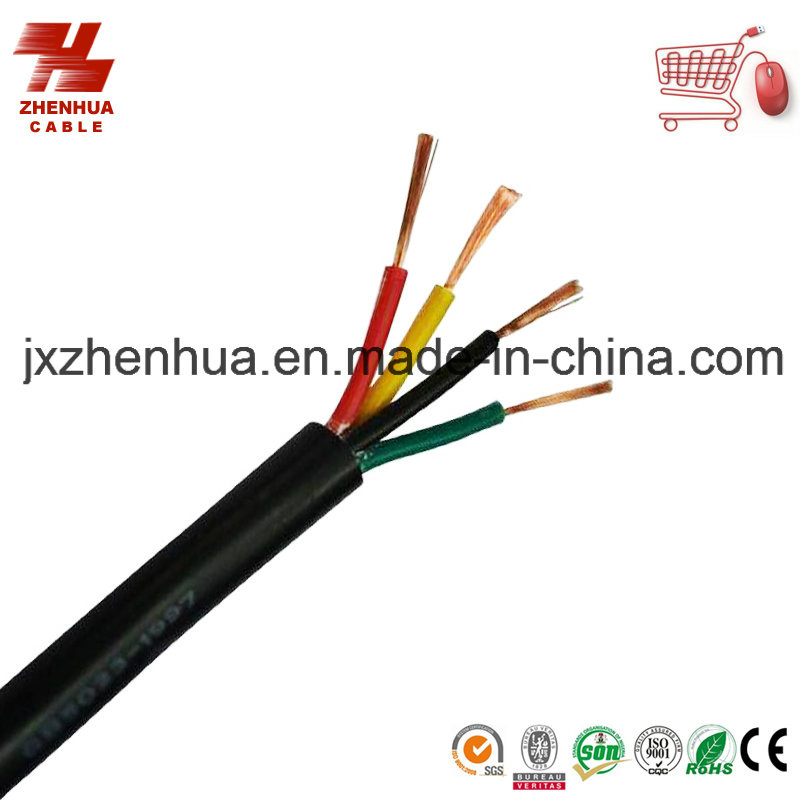

Black PVC 4 Core Power Cable 4X1.5mm2 4X 2.5mm2 4X4mm2
| Price: |
US $ 0.1/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10000/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
H05VV-F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Insulated |
| Application: |
Underground |
| Certification: |
SGS,Son |
| Conductor Material: |
Copper |
| Conductor Type: |
Solid |
| Insulation Material: |
PVC |
| Brand: |
Zhenhua |
Product Description
Product Description: Intruduction of the Electric Wire PVC Insulated Single Core H05V-U / H07V-U/ H07V-R wire: 1, The national certification of qualified manufacturers 2, Standard: GB 5023.1, IEC 60227/228, VDE 3, CE, RoHS, ISO ,SGS Certificate 4, Meet European standards and can be customized according to customer requirements 5, OEM, ODM cooperation Applications: H05V-U / H07V-U are harmonized PVC European single-conductor hook-up wires with a solid bare copper core. Ideal for the internal wiring of appliances, apparatus, switchboards and distributor boards or where a solid core is required. Suitable in dry rooms for fixed and flexible laying. May be used for exposed and embedded conduits. Found in electronic and electrical equipment and switchgear cabinets designed for export to a European country for MRO replacement of European made equipment wire. The products is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances, Like lighting, electronic equipment, instrument and communication equipment with rated voltage 300/500V, 450/750V, The Operating temperature: Allowing the wire of work for long time should not exceed +70 centigrade.
Contact Info.:
JIAXING ZHENHUA WIRE&CABLE CO., LTD
Add:Zhangqiao Village ,Shiquan Town,Haiyan County,ZhejiangProvince,P.R.China Attn: Thomas Cell:0086-13656625820 Web:www.zhenhuacable.com.cn | No. of cores x cross-section(mm²) | Construction of individual conductornominal(n x mm) | External diametermin-max.mm | Insulation thickness nominal mm | Sheath thickness nominal mm | Conductor resistance at 20 ° C max. Ω /km |
| 2 x 0, 75 | 24 x 0, 20 | 5, 7 - 7, 2 | 0, 6 | 0, 8 | 26, 0 |
| 2 x 1 | 32 x 0, 20 | 5, 9 - 7, 5 | 0, 6 | 0, 8 | 19, 5 |
| 2 x 1, 5 | 30 x 0, 25 | 6, 8 - 8, 6 | 0, 7 | 0, 8 | 13, 3 |
| 2 x 2, 5 | 50 x 0, 25 | 8, 4 - 10, 6 | 0, 8 | 1, 0 | 7, 98 |
| 3G0, 75 | 24 x 0, 20 | 6, 0 - 7, 6 | 0, 6 | 0, 8 | 26, 0 |
| 3G1 | 32 x 0, 20 | 6, 3 - 8, 0 | 0, 6 | 0, 8 | 19, 5 |
| 3G1, 5 | 30 x 0, 25 | 7, 4 - 9, 4 | 0, 7 | 0, 9 | 13, 3 |
| 3G2, 5 | 50 x 0, 25 | 9, 2 - 11, 4 | 0, 8 | 1, 1 | 7, 98 |
| 3G4 | 56 x 0, 30 | 10, 5 - 13, 1 | 0, 8 | 1, 2 | 4, 95 |
| 4G0, 75 | 24 x 0, 20 | 6, 6 - 8, 3 | 0, 6 | 0, 8 | 26, 0 |
| 4G1 | 32 x 0, 20 | 7, 1 - 9, 0 | 0, 6 | 0, 9 | 19, 5 |
| 4G1, 5 | 30 x 0, 25 | 8, 4 - 10, 5 | 0, 7 | 1, 0 | 13, 3 |
| 4G2, 5 | 50 x 0, 25 | 10, 1 - 12, 5 | 0, 8 | 1, 1 | 7, 98 |
| 4G4 | 56 x 0, 30 | 11, 5 - 14, 3 | 0, 8 | 1, 2 | 4, 95 |
| 4G6 | 84 x 0, 30 | 14, 7 | - | - | 3, 30 |
| 5G0, 75 | 24 x 0, 20 | 7, 4 - 9, 3 | 0, 6 | 0, 9 | 26, 0 |
| 5G1 | 32 x 0, 20 | 7, 8 - 9, 8 | 0, 6 | 0, 9 | 19, 5 |
| 5G1, 5 | 30 x 0, 25 | 9, 3 - 11, 6 | 0, 7 | 1, 1 | 13, 3 |
| 5G2, 5 | 50 x 0, 25 | 11, 2 - 13, 9 | 0, 8 | 1, 2 | 7, 98 |
| 5G4 | 56 x 0, 30 | 13, 0 - 16, 1 | 0, 8 | 1, 4 | 4, 95 |
Jiaxing Zhenhua Wire & Cable Co., Ltd. Was established in 1999, who is a professional cable manufacturer and specializing in various wire & cable. Covering Electrical building wire (Single, Twin, Multi-core), Power Cable(Armoured Cable), Welding Cable(AUTO&Battery Cable), Speaker cable, Audio &Vedeo cable, Telephone Cable, Coaxial Cable(RG59/6), LAN Cable(Cat5e/6),
Alarm Cable, PV Solar cable etc.
We have strict quality control system and pass the ISO9001: 2008 QUALITY MANAGEMENT SYSTEM CERTIFICATE as well as we have CE and SONCAP Certificate
Our cable factory is located in Haiyan county, Zhejiang Province which is very close to Shanghai and Ningbo Port with convenient transportation access, So we can deliver the goods by all kinds of transportation for saving the customer`s cost on inland freight.
Welcome to visit our cable factory and we are expecting to cooperate with all kinds of cable importers, wholesaler &retail trader from all over the world as well as double-win with our partners and build long-time business relationship. Since the establishment, we have implemented the business philosophy"QUALITY FIRST, CUSTOMER FIRST, HONEST FIRST. "That is our presistent persuit to offer you excellent service and quality guarantee.
It`s your best choice to use ZHENHUA CABLE!
