Black Shell Polypropylene P2 Capacitor Cbb61

Name: Black Shell Polypropylene P2 Capacitor Cbb61
Brand: all-electronics-online.com
SKU: 810588475
Availability: InStock
Rating: 4.4 (135 reviews)

Price:	US $ 0.09-2/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB61
Certificate:	UL ,Ce ,RoHS ,ISO9001 ,IEC60252
Color ,:	Black ,Red ,White Color Case and Others
Terminal:	Wire Leading and Pins
Service:	OEM and ODM Service
Delivery Time:	7~10 Days
Warranty Time:	3 Years
Type:	Polypropylene Capacitor
Application:	Fan
Package Type:	Surface Mount
Capacitance:	1-50uf

Product Description

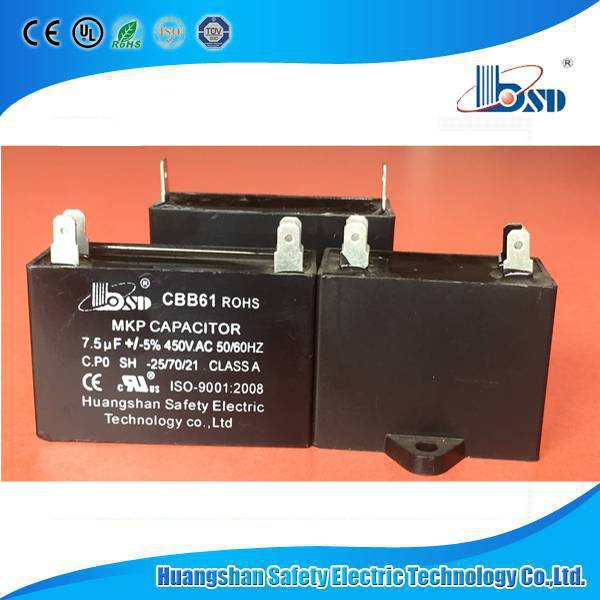

CBB61 speed fan capacitor
Specially design for Fan converter, several cores center structure, 2~4 cores center can be filled into a capacitor case. And with many different installation structure to choose, they use conveniently. Adopt special producecraft, stable electric performance.
They can solve the disadvantage of high cost & large noiseof traditional inductance converter.

Safety approvals		UL,CE ,IEC ,VDE,
Implemented standard		GB/T3667.1 , UL810 , EN60252-1
Environment temperature		-40ºC~+105ºC
Rated voltage		110VAC~600VAC (50/60Hz)
Capacitance range		0.1μF~30μF
Capacitance tolerance		±5%(J),±10%(K)
Tangent of loss angle(20ºC)		≤0.002 (100Hz )
Testing voltage	between terminals	2UN (VAC)/60s(CQC,VDE,TUV), 1.5UN (VAC)/60s (UL)
	between terminals and case	2*UN+1000(VAC)/ 60s(≥2000VAC)
Class of safety protection		CBB61 :P0 class ; CBB61-P2: P2 class
Fault current		CBB61-P2 : 10,000AFC ( UL 810)

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
