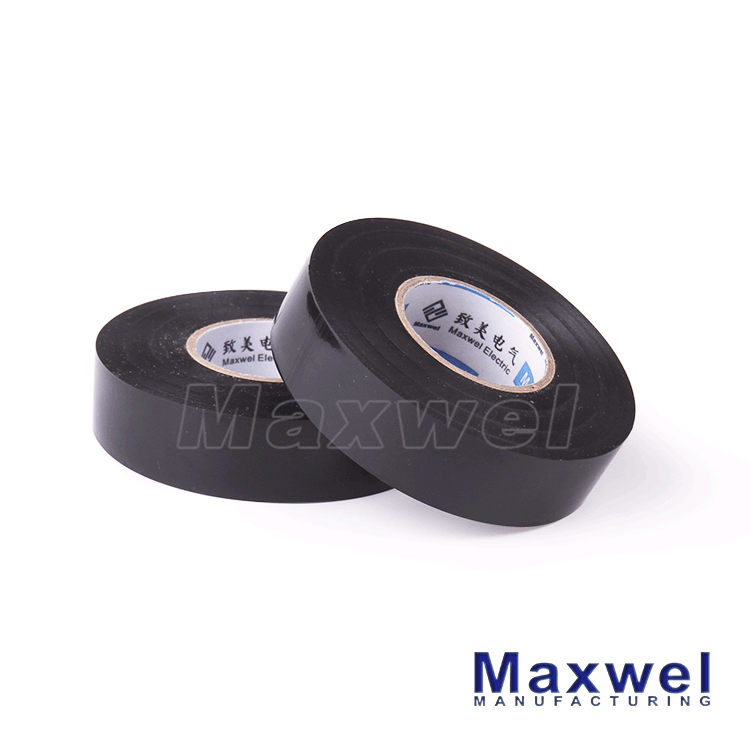

Black Soft Film PVC Insulation Tape

Name: Black Soft Film PVC Insulation Tape
Brand: all-electronics-online.com
SKU: 704397525
Availability: InStock
Rating: 5 (67 reviews)

Price:	US $ 0.098/Roll
Trade Terms:	FOB,CIF,EXW
Min Order:	5000/Roll
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	130D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Adhesive:	Rubber
Thickness:	0.10mm-0.20mm
Elongation:	160%-220%
Certificate:	UL
Temperature:	80 Degree

Product Description

PVC Introduction:

PVC electrical tape composed of soft film and rubber based PSA, its charaterized by excellent insulation, good flame retardant and excellent resistance to voltage and low temperature

Application:

1. It is used for insulation protection of electrical wires and harness in automobile industry.
2. PET tape(polyester tape) composed of PET film and solvent based PSA is charaterized by good tensile strength and resistance to high temperature.
3. It is used for various packing and wrapping of transformer coils

Size:

19mm*0.13mm*9.14m
Other sizes can be made according to customers' requirements

Code	Backing	Adhesive	Thickness (mm)	Adhesion (N/cm)	Tensile (N/cm)	Elongation (%)	Temperature	Voltage Breakdown (KV/mm)	Features & Application
100D	PVC	rubber	0.10	1.5	14	160	80	≥ 40	Used for wrapping electric wires and cables etc.
110D	PVC	rubber	0.11	1.5	15	160	80	≥ 40
130D	PVC	rubber	0.13	1.5	17	160	80	≥ 40
150D	PVC	rubber	0.15	1.5	22	200	80	≥ 40
165D	PVC	rubber	0.165	1.5	25	200	80	≥ 40	Be up to the UL standard, used for wrapping electric wires and cables etc.
180D	PVC	rubber	0.18	1.5	28	200	80	≥ 40
190D	PVC	rubber	0.19	1.5	28	200	80	≥ 40
200D	PVC	rubber	0.20	1.5	30	220	80	≥ 40
100Z	PVC	rubber	0.10	1.5	14	160	80	≥ 40	Flame retardant, used for wrapping electric wires, automotive wire harness and cables ect.
110Z	PVC	rubber	0.11	1.5	15	160	80	≥ 40
130Z	PVC	rubber	0.13	1.5	17	160	80	≥ 40
150Z	PVC	rubber	0.15	1.5	22	200	80	≥ 40
165Z	PVC	rubber	0.165	1.5	25	200	80	≥ 40	Be up to the UL standard, flame retardant, used for wrapping electric wires, automotive wires harness and cables etc.
180Z	PVC	rubber	0.18	1.5	28	200	80	≥ 40
190Z	PVC	rubber	0.19	1.5	28	200	80	≥ 40
200Z	PVC	rubber	0.20	1.5	30	220	80	≥ 40
