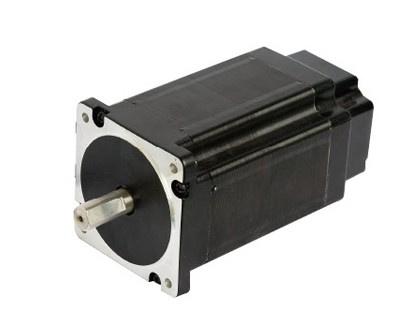

Name: BLDC Servo Motor for Textile Industry
Brand: all-electronics-online.com
SKU: 774251985
Availability: InStock
Rating: 4.5 (29 reviews)

Price:	US $ 16-80/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	57BLF3A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Car
Operating Speed:	Constant Speed
Structure And Working Principle:	Brushless
Excitation Mode:	Electricity
Type:	Electricity
Certification:	CE Rosh
Brand:	Longway

Product Description

Typical applications:
Textile industry, printing industry, advertising lamp box, medical apparatus and instruments.
detail datas can be adjusted according to custom request.
DC Brushless motor can add planety gearbox,surp gearbox,encoder,holl.
We also can supply matched driver,power and so on.

Model	Rated Power	Rated Voltage	Current	Number of Poles	Rated Speed	Rated Torque	Peak Torque	Moment Constant	L	Weight
Model	W	VDC	A	Number of Poles	rpm	N.m	N.m	N.m/A	mm	kg
57BLF3A50-240	62	24	3.4	8	3000	0.2	0.6	0.056	61	0.55
57BLF3A70-240	125	24	4.6	8	3000	0.4	1.2	0.056	82	0.90
57BLF3A90-240	180	24	5.2	8	3000	0.6	1.8	0.056	103	1.25
