Bluetooth Car Alarm System GPS Tracker for Car/Motorcycle/Asset
Price: |
US $ 38-45/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union,Paypal,Money Gram |
Prod Model: |
MT08 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Tracking Platform: |
Web Based and Mobile APP |
Back-up Battery: |
350mAh/3.7V |
Power Consumption: |
65mA Standby Current |
Sensor: |
Motion Sensor |
Sos Panic Button: |
Support |
Over Speed Alarm: |
Support |
Fuel Consumption: |
Support |
Arm / Disarm Vehicle: |
Support |
Driver ID Identify: |
Support |
Two Way Location: |
Support |
Product Description
Bluetooth car alarm system GPS Tracker for Car/Motorcycle/AssetCompany informationMaoming Topshine Electronic Technology Co.,Ltd is specialize in R&D innovation manufacturing superior GPS products in terms of GPS Personal Tracker, GPS Vehicle Tracker, GPS vehicle Tracking System and Integrated GPS Tracking Solutions.
Highlight MT08B = GPS tracker + car alarm + driver ID identify + two way location + anti signal jamming |
1. Don't need to install any APP on phone |
2. When we close to the vehicle around 5 meters and our phone is recognized, the system will be disarmed automatically |
3. When leave the vehicle about 10 meters, the system will be armed automatically |
4. In the armed status, if illegal people open the door / ignition the engine / movement the vehicle, it will trigger alarm |
5. Support cut off the power of fuel pump automatically when illegal people open the door / ignition the engine / movement the vehicle |
6. As driver ID identify - the GPS data will send the phone ID = driver ID to server, so management will know who drive which vehicle. |
7. Two way location ( when lost GPS signal / drive into tunnel / underground etc, it still can be tracked on map ) |
8. Once GPS tracker detect the GSM signal jamming, it will trigger siren alarm and immobile the vehicle. |
All of GPS tracker support TWO-WAY location, From now, we can achieve our trackers are tracking inside the building/ tunnel/ subway etc..... that's mean we can track the car when lost GPS signal or GPS antenna was damaged or GPS was jammed etc.
The other biggest improvement is cool start the device, it can be very fast locate in 15s and traditional cool start will take 30s to 180s to finish the locate on map.

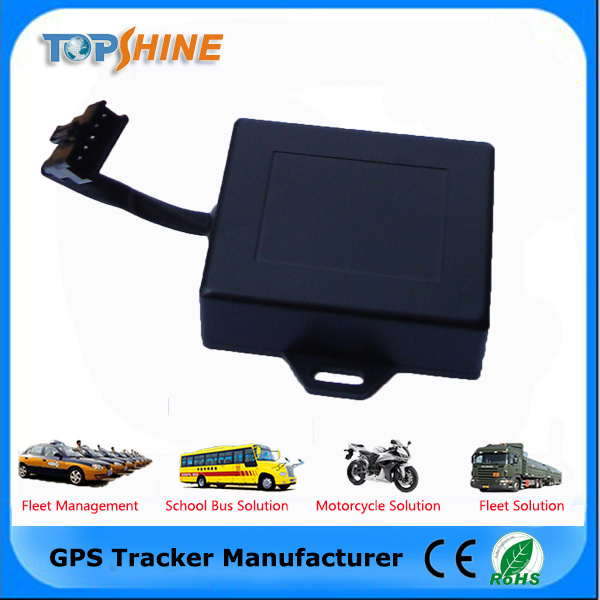

Product descriptionTopshine MT08 is a kind of mini GPS vehicle tracking product can be used for tracking and security of
motorcycle and automobile etc. Mini size, built-in antenna and waterproof designed, easy to be
installed and concealed, with power voltage range from 6V~24V, therefore can satisfy tracking
and security demands for all kinds of vehicles.Applications Vehicle real time tracking |
Motorcycle/ Car security/ Anti-hijack |
Fleet Management |
Features & Functions* Driver ID identify + Smart car alarm
* Two way location
* Anti GSM signal jamming
* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* Compact size with waterproof design
* Real time tracking via the web-platform
* Get position location via call/SMS
* Arm/Disarm by SMS or phone call
* Remote Engine cut off to stop the car in safe condition (optional)
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)Alert and optional function* Over speed alert
* Geo-fence alert
* Movement alert
* Power failure/low power alert
* Doors detection (optional)
* Fuel monitoring (optional)
* Engine on/off detection (optional)
* SOS Panic button, SOS alert (optional)
* Accident alarm (need crash sensor support) (optional)
* Wiretapping/remote listening (optional)SpecificationsItems | Specifications |
Dimension | 62*50* 22mm |
Weight | 65g |
Input voltage | DC 9V~24V/1.5A |
Back-up battery | 350mAh |
Operating Temperature | -20 degree ~ 75 degree |
Humidity | 5%~95% |
GSM Frequency | GSM 850/900/1800/1900MHz |
GPS Chip | U-blox7 |
GPS Sensitivity | -165dBm |
Positioning accuracy | 10 meters, 2D RMS |
Interface | 2 Input and 1 Output |
LED | 2 LED lights to show GPS, GSM status |
Button | 1 SOS(optional) and 1 power on/off |
Sensor | Motion sensor |
Work Time | 18 hours in power-saving mode and 4 hours in normal mode |

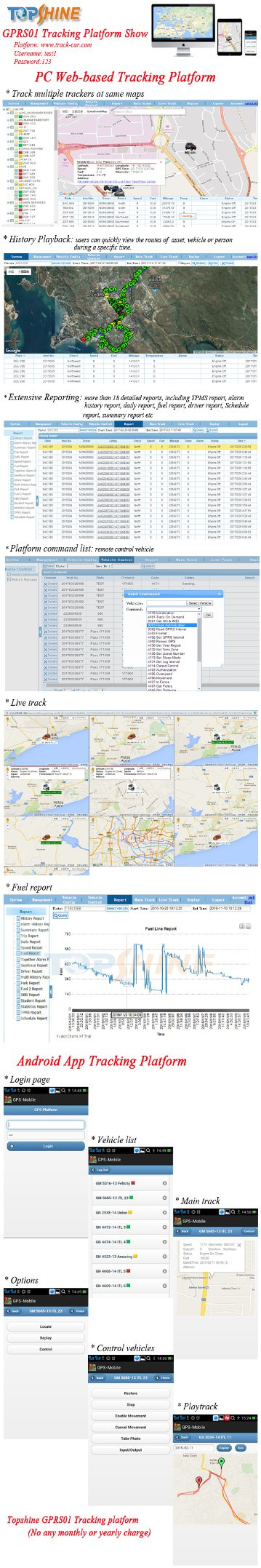

Topshine company provide free online GPRS01 tracking platform (No any monthly or yearly charge) Web: www.track-car.com / www.tstrack.net
Username: test1
Password: 123
Our service- Any inquiries will be replied within 12 hours on work day.
- Professional manuafacurer and wholesaler for 10 years.
- OEM available:
- Customized logo or color box
- We can help you to design and put it into production about your idea.
- High quality, fashion design, reasonable&competitive price, fast lead time
- After-sale service:
- All products will have been strictly Quality checked in workshop before packing
- All products will be well packed before shipping.
- All our products have 24 mouths warranty, and we are sure our products will be free from maintenance
- Fast delivery:
- Sample order in stock; 10~100pcs: 2~3 days; 3~7 days for bulk order
- Payment:
- payment for the order via: T/T , Western Union and Paypal
FAQQ: Why the tracker can't be switched on?
A: 1. Check if wiring is correct or not.
2. Charge the tracker.
Q: No response to SMS command
A: 1. Wrong password. Please check your password.
2. No GSM mobile signal or weak GSM network. Try later.
3. Out of SIM credit. Please pop up.
4. SIM is damaged. Change a sim card.
5. SIM card is without sending function. Change a SIM or enable SMS sending function.
6. SIM card isn't installed properly.
Q: Why there is a "Last" appearing in a positon report SMS?
A: There is no GPS signal. Please take the tracker to somewhere open area.
Q: How to use tracking platform?
A: 1. Set GPRS parameter in Parameter.exe.
2. Set GPRS parameter by SMS.
(1) Set tracker ID: W,010,ID
(2) Set APN: W,011,APN name
(3) Set IP and Port: W,012,210.209.68,9600
(4) Enable GPRS: W,013,1
(5) Set report time interval: W,0.14,00000
(6) Open link www.global-track and create vehicle info in Manage - Vehicle Manage
Q: How to connect Relay to cut off engine?
A: Cut off fuel pump wire, connect green wire of relay with fuel pump line, connect yellow wire with relay yellow wire, connect white wire with 12V power supply line. INQUIRY NOW
