| Prod Model: |
BMA-J-04 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bma: |
1 |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Threaded Connection |
| Interface Type: |
Bma Type |
| Brand: |
Rfconnector |
Product Description

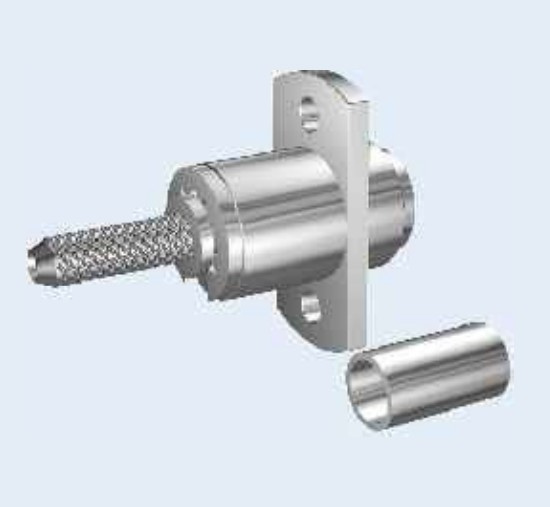

BMA series are blind mating connectors, with 50ohms impedances and used in low-power micro-wave transmission system. With the new spring and floating mechanism, BMA connectors can easily adapt to axial or radial misalignment. The BMA series presents an merit of high reliable connectivity, stable performance and high density installaiton. Offering ecinomical solutions in board connection or module connection etc. BMA are currently used in field of military and civil communicaiton system applications.
Product Description
Impedance: 50 ohms
Frequency Range: DC-18GHz (semi-rigid cable)
DC-12.4GHz (flexible cable)
Mating: . 250-36 threaded coupling
Durability: 500 cycles minimum
Body and outer contacts: Brass, nickel or gold plated
Male Contact: Brass, Gold plated
Female Contact: Beryllium copper or phosphor bronze, gold plated
Crimp ferrule: Copper or brass, nickel plated
Insulator: LCP, PTFE or PFA
Features:
Quality performance with low VSWR, DC TO 18 GHz
Work for 0.085″ and 0.141″ diameter semi-rigid cables and all standard flexible cables include double shielded RG-316
Straight, Right angle plug and jacks
PCB-Printed circuit board connectors, SMD available
Accordance with MIL-C-39013 and CECC 22110/11
Applications:
Base Station
GPS
Telecom
Broadband Communications
Antenna
WIFI&WLAN device
Cable assemblies
Cell phone
Radio Boards.
Product Information |
|
| Packing | Carton, Plastic Tray,tape&reel |
| Standard | CECC 22240(1.6/5.6),ISO9001,MIC-STD-348A,MIL-A-55339(n), MIC-C-39012 ,MIC-C-83517(SMA) |
| Product Range | Cable connector, PCB connector, adaptors |
| Coupling type | Screw-on, Snap-on, slide-on, quick lock |
| Workshop |
|
| Area | 2000 Square meters |
| Employee | 20 persons |
| CNC Machine | 20 PCS |
| Network analyzer | 8PCS |
| X- Ray Thickness tester | 1 PC |
| RoHS Tester | 1 PC |
| Pull&push force tester | 1 PC |
| Punching Machine | 10 PCS |
| Cable stripper | 3 PCS |
| High frequency Soldering Machine | 3 PCS |
| Produnction Ability | 600K connector/month, 300K cable assembly/month
|
