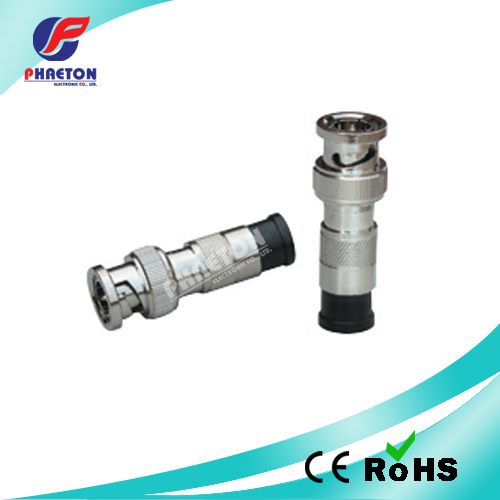

BNC Compression Connector Copper

Prod Model:	955
Cable For:	Rg59
Materials:	Zinc-Alloy or Brass Nickel Plated
Applications:	CATV/Set-Top Box/Cable Assemblies/Cable
Water Proof:	Without O-Ring
Type:	Generally Coaxial Connector
Coupling Mechanism:	Compression
Medium Pressure:	48V

Product Description

BNC Compression Connector copper

RF Connector
1.Accept 0.5~1.0mm Center Conductor
2.Low Cost with High Performance

Features:
1.Excellent insertion/withdrawal characteristics
2.BeCu contact is available from 0.55~1.02mm center conductor sizes
3.Copper body  (Zinc ally body available at your request)

Applications:
1.CATV
2.Set Top Boxes
3.Cable Assemblies
4.Cable Modems

Electronical Specifications
F type catv Connector compressed
Color: Nickel
Materials: New Brass
Size: For RG59 coaxial cable
Sealed permanent
High performance Nickel plated connector f compressed for Cable RG6
Universal so it works with all RG59 Cable (60% thru Quad)
Compression Connector with Dual O-Rings
All Brass Construction

Package : 50 or 100 pieces in one clear bag
Meets SCTE Specifications

Product Specifications
Bandwidth:	0MHz to 3GHz
Impedance:	75Ohms
Return Loss:	Minimum -30 dB to 3GHz
Insertion Loss:	LESS THAN 10db to 3GHz
Shielding Effectiveness:	Ehanced by 25dB
Operating Temperature:	-40° F to +140°F(-40°C to +60°C)
Cable Retention:	45lbs minimum
Meets or exceeds all SCTE Specifications

FAQ:

Q1:Are you a trading company or manufacturer?
We are professional manufacturer for audio&video cable . also we supply of different electrical and electronic items
Q2: why will you choice us :
more than 15 years of professional teams will give you good quality products ,good service ,and reasonable price .
Q3:Can we have our logo or company name to be printed on your products or the package?
   We offer OEM , ODM . our designer can make special design for you .
Q4: Is the MOQ fixed?
The MOQ is flexible and we accept small order as trial order.
Q5:Can I have a visit to you before the order?
Sure,welcome to visit our company ..
our company  is only one hour by train from shanghai
