| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Renhotec |
| Place Of Origin: |
Guangdong.China |
| Model Number: |
Renhotec-610-0067 |
| Connector Type: |
BNC Connector |
| Gender: |
Female |
| Orientation: |
Straight |
| Material: |
Customized |
| Angle: |
Straight |
| Pin Contact: |
Brass |
| Insulator: |
PTFE |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Clamping Type |
Product Description
BNC Connector 75 Ohm Bulkhead Receptacle Crimp for Cabe Rg58 Rg59 Rg316The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. With a classic, dependable design, BNCs are suited to accommodate a large variety of RG and industry standard cables, in a variety of termination styles.| Major Technical Characteristics |
| Temperature Range | -5 degree to +155 degree
(PE cable -40 degree to +85 degree ) |
| Impendance | 50ohm, 75ohm |
| Frenquency Range | DC-4GHZ |
| Working Voltage | 500V r.m.s at sea level |
| Workstandinging Voltage | 1500V r.m.s at sea level |
| Center Contact Resistance | ≤1.5Mohm |
| Outer Contact Resistance | ≤1Mohm |
| Insulation Resistance | ≥5000Mohm |
| Center conductor Retention Force | ≤0.57N |
| Insertion Loss | ≤0.20dB/3GHz |
| Voltagge Standing Wave Ratio : |
| Straight | ≤1.22/3GHz |
| Right Angle | ≤1.30/3GHz |
| Dutability (Mating) | ≤500(cycles) |
| Materials |
| Body | Brass.........................Nickel |
| Insulator | Delrin.........................Natural |
| Contact Pin | Brass.........................Gold |
| Ferrule | Copper......................Nickel |
| Suitable cables |
| RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US) |

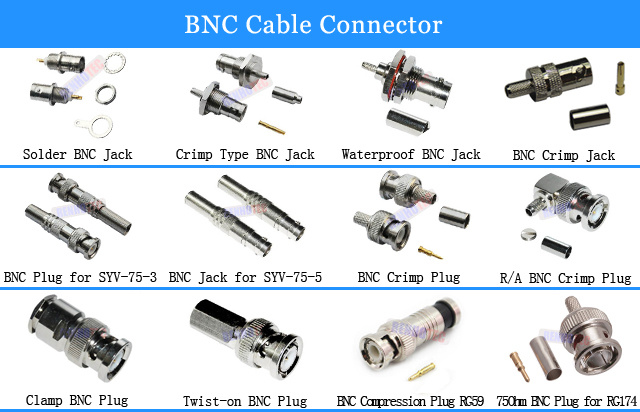

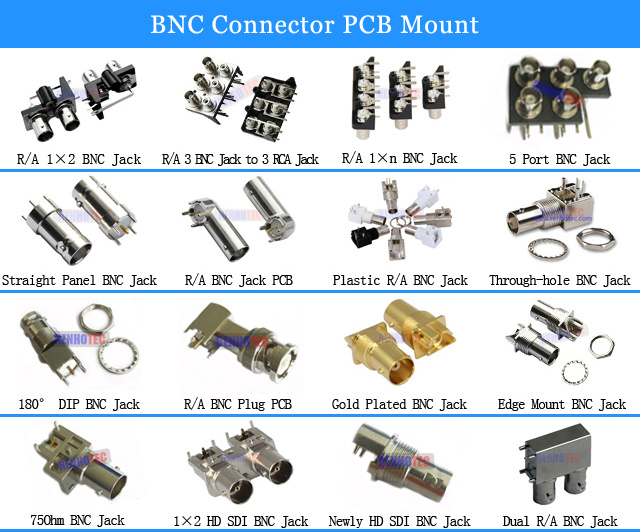

More BNC Connectors

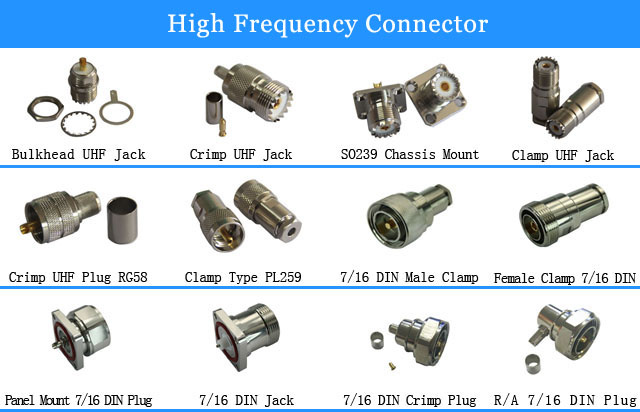

Related RF Coaxial Connectors
As a major enterprise of RF products in China, our company manufactures a full range of products, including:
1) MMCX RF coaxial connectors
2) MCX RF coaxial connectors
3) SMA RF coaxial connectors
4) SMB RF coaxial connectors
5) SMC RF coaxial connectors
6) SSMA RF coaxial connectors
7) SSMB RF coaxial connectors
8) SSMC RF coaxial connectors
9) TNC RF coaxial connectors
10) BNC RF coaxial connectors
11) N RF coaxial connectors
12) 7/16 (L29) RF coaxial connectors
13) 1.6/5.6 (L9) RF coaxial connectors
14) F RF coaxial connectors
15) 1.0/2.3 (CC4) RF coaxial connectors
16) UHF RF coaxial connectors
17) MINI UHF RF coaxial connectors
18) FME RF coaxial connectors
19) TAC RF coaxial connectors
20) Reverse polarity connectors
21) Plug for cell-phones and special purpose connectors
22) Coaxial terminations
23) Lightning arresters

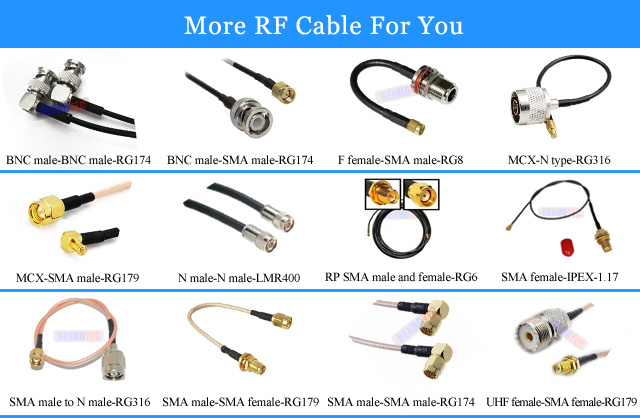

24) Jumper cables
