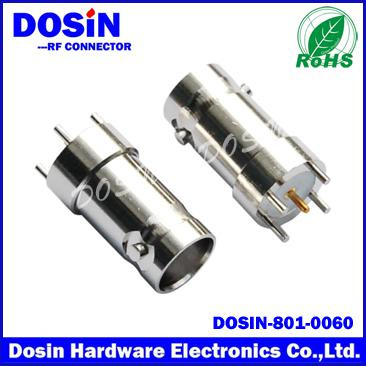

BNC Female Straight Connector for PCB

Name: BNC Female Straight Connector for PCB
Brand: all-electronics-online.com
SKU: 746978665
Availability: InStock
Rating: 4.9 (50 reviews)

Price:	US $ 0.36/Piece
Trade Terms:	FOB,EXW
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DOSIN-801-0060
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Generally Coaxial Connector
Coupling Mechanism:	Double Bayonet Plug-in
Brand:	Renhotec

Product Description

The BNC connectors are for low power, quick connector/disconnector application using a bayonet type coupling mechanism. There are 50ohm and 75 ohm about the Characteristic impedance. They are widely used in electronic instrument, communication equipment, internet system, microwave testing.

TECHNICAL CHARACTERISTICS
Temp. Range: -65~+165° C (PE Cable -40~+85° C)
Vibration: MIL-STD-202, Method 213
Impedance: 50Ω , 75Ω
Frequency Range: DC~4GHz
Working Voltage: 500V max
Withstand Voltage: 1500V rms
Contact resistance
Center Contact ≤ 1.5 mΩ
Outer Contact ≤ 1 mΩ
Insulation resistance ≥ 5000 MΩ
VSWR Straight ≤ 1.22
Right angle ≤ 1.30
Durability(mating) ≥ 500(cycles)

MATERIAL AND PLATING:
Shell: Zinc alloy nickel plated
Contact pin: Brass gold or silver plated
Socket: Beryllium gold or silver plated
Elastic contact: Beryllium gold or silver plated
Insulator: PTFE
Crimping suite: Copper alloy nickel plated
O-ring sealing: 6146 silastic

APPLICABLE STANDARD
MIL-C-39012;
CECC 22120;

1.100% tested before delivery.
2. Guarantee the prompt delivery. The stocked goods will be delivered within 3 days and the customized products will be delivered as arranged date.
3. We are glad to makes samples according to our customers'drawing, specifications and samples.
4. OEM is available.
5. Free to contact us, we can offer you the best service, top-quality goods, competitive price and timely delivery.
6. ISO9001: 2008 certified.

If the product is not what you want, please send enquiry to us, you will get an immediate reply within 1 hour at our working time, thanks.
