| Prod Model: |
DOSIN-801-0092 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Business Type: |
Manufacturer |
| Connectors Type: |
BNC Jack |
| Orientation: |
Right Angle |
| Body Material: |
Brass |
| Plating: |
Nickel/Gold |
| Impedance: |
50/75 Ohm |
| Service: |
OEM/ODM |
| Warranty: |
12 Months |
| Lead Time: |
7-10 Days |
| Type: |
PCB Coaxial Connector |
| Coupling Mechanism: |
Double Bayonet Plug-in |
Product Description

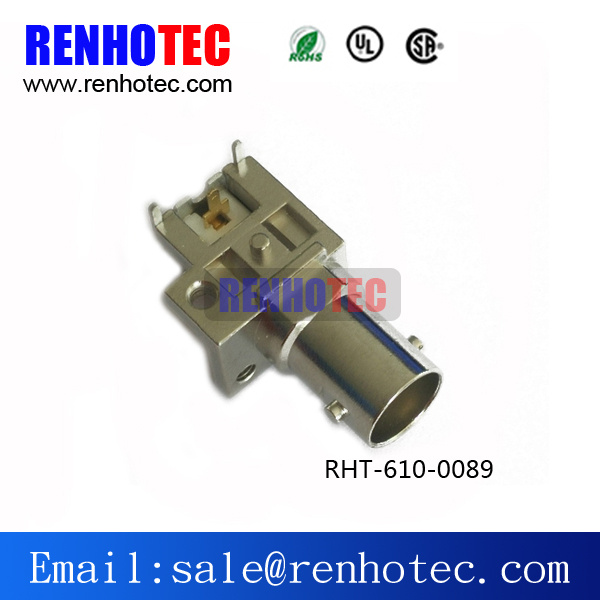

Description: BNC HD-Sdi Female Coaxial for PCB Mount
TECHNICAL CHARACTERISTICS
| Temp. Range | -65~+165° C (PE Cable -40~+85° C) |
| Vibration | MIL-STD-202, Method 213 |
| Impedance | 50Ω , 75Ω |
| Frequency Range | DC~4GHz |
| Working Voltage | 500V max (as sea level) |
| Withstand Voltage | 1500V rms (as sea level) |
| Center Contact resistance | ≤ 1.5 mΩ |
| Outer Contact resistance | ≤ 1 mΩ |
| Insulation resistance | ≥ 5000 MΩ |
| VSWR Straight | ≤ 1.22 |
| VSWR Right angle | ≤ 1.30 |
| Durability(mating) | ≥ 500(cycles) |
Materials and plating:
| Shell | Brass nickel plated |
| Contact pin | Brass gold or silver plated |
| Socket | Beryllium gold or silver plated |
| Elastic contact | Beryllium gold or silver plated |
| Insulator | PTFE |
| Crimping suite | Copper alloy nickel plated |
| O-ring sealing | 6146 silastic |
APPLICABLE STANDARD
MIL-C-39012;
CECC 22120;
