BNC Male Compression Connector for Security System (CT5081/RG6)

Name: BNC Male Compression Connector for Security System (CT5081/RG6)
Brand: all-electronics-online.com
SKU: 801618505
Availability: InStock
Rating: 4.6 (41 reviews)

Price:	US $ 0.19-0.23/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CT5081/RG59
Connector Type:	BNC Connector
Connection:	Compression
Material:	Zinc Alloy + Copper
Net Weight:	13G/Piece
Applications:	CCTV Surveillance System
Type:	Generally Coaxial Connector
Application:	Connectors
Brand:	Chinasky

Product Description

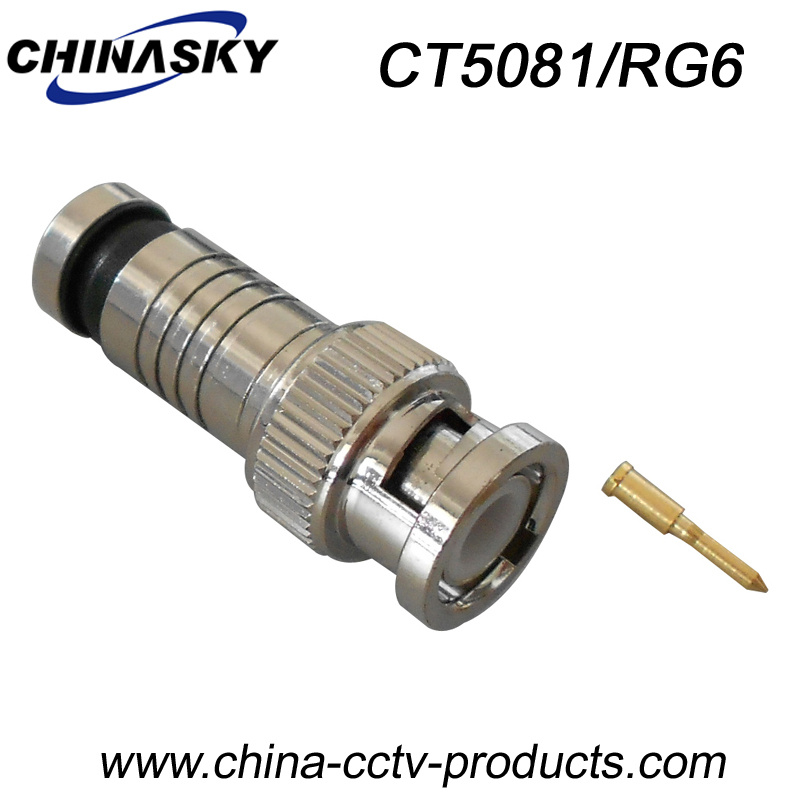

BNC Male Compression Connector for security System(CT5081/RG6)

Description:
BNC Male Compression Connector for RG6 Cable
The BNC RG6 Compression Connector for Coax features 360-degree true radial compression.
Material:
Body-zinc alloy, nickel plated
Center pin-copper, gold plated
Net Weight: 13g/piece

Features:
Temperature range: - 40~ +155
Insulation resistance: ≥5000MΩ
Character impedance: 50Ω
Frequency range: 0~3GHZ
Disengage force: ≥0.6N
Contact resistance: center conductor≤1.5mΩ; outer conductor≤1mΩ
Durability: ≥ 500

Application:
The BNC connector (Bayonet Nut Connector) is a miniature quick connect/disconnect RF connector used for coaxial cable. It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut. BNCs are ideally suited for cable termination for miniature-to-subminiature coaxial cable (e.g., RG-58, 59, to RG-179, RG-316).
We often use BNC cable to transmit audio and video signal in monitors and audio equipments in the up-markets.

Minimum Order Quantity:	Negotiable
Packaging Details:	100pcs/PP bag
Delivery Time:	5-12 working days
Payment Terms:	T/T, Western Union
Nearest Port:	Ningbo or Shanghai

Place of Origin:	China
Brand Name:	Chinasky
Model Number:	CT5081/RG6
