BNC Male Plug Bulkhead Handle Solder Panel Mount Straight Connector

Name: BNC Male Plug Bulkhead Handle Solder Panel Mount Straight Connector
Brand: all-electronics-online.com
SKU: 825174835
Availability: InStock
Rating: 4.5 (22 reviews)

Price:	US $ 0.3-0.6/Piece
Min Order:	5000/Piece
Pay Type:	T/T,D/P,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Materials:	Brass
Plating:	Nickel
Impedance:	50 Ohm
Frequency Range:	DC~1GHz
Temperature Range:	-40~+60
Color:	Silvery
Type:	Generally Coaxial Connector
Coupling Mechanism:	Crimp
Brand:	Yjs

Product Description

BNC CONNECTOR SERIES

The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. With a classic, dependable design, BNCs are suited to accommodate a large variety of RG and industry standard cables, in a variety of termination styles.

Amphenol offers a full line of BNCs in a multitude of options. From 50 Ω to 75 Ω Impedance, Commercial to Military grade, BNC connectors are miniature, lightweight and reliable. A full line of printed circuit board receptacles, bulkhead receptacles, reverse-polarity connectors, resistor terminations, and other accessories complement the product offering.

FEATURES AND BENEFITS

Bayonet coupling mechanism provides positive, quick mating and un-mating
50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements
Connectors are available for military, industrial and commercial applications

APPLICATIONS

Antennas
Broadcast (75 Ω)
Telecom
Automotive
Computers/LANs
Medical Equipment
Satcom
Base Stations
Cable Modems
Instrumentation
Mil-Aero

BNC 50 OHM SPECIFICATIONS

Electrical
Impedance	50 Ohm
Frequency Range	0-4 GHz with low reflection
VSWR
M30912 Straight Connectors 0-4 GHz	1.30 Max
M30912 Right Angle Connectors 0-4 GHz	1.35 Max
Dielectric Withstanding Voltage	1500 VRMS
Voltage Rating	500V rms
Insulation Resistance	5000 MΩ min
Contact Resistance
Center Contact	1.5 mΩ
Outer Contact	0.2 mΩ
Braid to Body	0.1 mΩ
RF Leakage	55 dB min @ 3GHz
Insertion Loss	0.2 dB max @ 3 GHz

Environmental
Temperature Range
TFE Insulation	-65ºC to +165ºC
Copolymer of Styrene	-55ºC to 85ºC
Clamp Gasket Sealing	Clamp-style assembly
Heat Shrink Tubing	Crimp-style assembly
Hermetic Seals	Pass helium leak test of 2 x 10^-8 cc/sec
Shock	Mil-STD-202, Method 202
Vibration	Mil-STD-202, Method 204 (test cond. D)
Moisture Resistance	MIL-STD-202 Method 106
Corrosion	Mil-STD-202, Method 101 ( test cond. B)
Temperature Cycling	Mil-STD-202, Method 102 (test cond. D)
Altitude	MIL-STD-202 Method 105 (test cond. C)

Mechanical
Mating	2-stud bayonet coupling per M39012
Cable Affixment (Braid or Jacket)
All Crimps	Hex braid crimp
Clamps	Screw-thread nut and braid clamp
Cable Affixment (Center Conductor)
Crimps	Crimp or solder
All Others	Solder only
Captivated Contact
All Crimps	Yes
Others	Where specified
Cable Retention
All Crimps	20-100 lbs
Clamps	20-70 lbs

BNC 75 OHM SPECIFICATIONS

Electrical
Impedance	75 Ohms nominal
Frequency Range	0-4 GHz
VSWR
Type 1: DC-4 GHz	1.5 + 0.1 f(GHz)
Type 2: DC-1 GHz	1.00 + 0.25 f(GHz)
Dielectric Withstanding Voltage	1500 VRMS
Voltage Rating	500 VRMS
Insulation Resistance	5000 MΩ min

Environmental
Temperature Range
TFE Insulation	-65ºC to +165ºC
Copolymer of Styrene	-55ºC to 85ºC
Clamp Gaskets	Clamps
Heat Shrink Tubing	Crimps
Hermetic Seals	Pass helium leak test of 2 x 10^-8 cc/sec
Shock	MIL-STD-202, Method 202
Vibration	MIL-STD-202, Method 204 (test cond. D)
Moisture Resistance	MIL-STD-202, Method 106
Corrosion	MIL-STD-202, Method 101 (test cond. B)
Temperature Cycling	MIL-STD-202, Method 102 (test cond. D)
Altitude	MIL-STD-202 Method 105 (test cond. C)

Mechanical
Mating	2-stud bayonet lock
Cable Affixment	Crimp-crimp

These characteristics are typical and may not apply to all connectors.

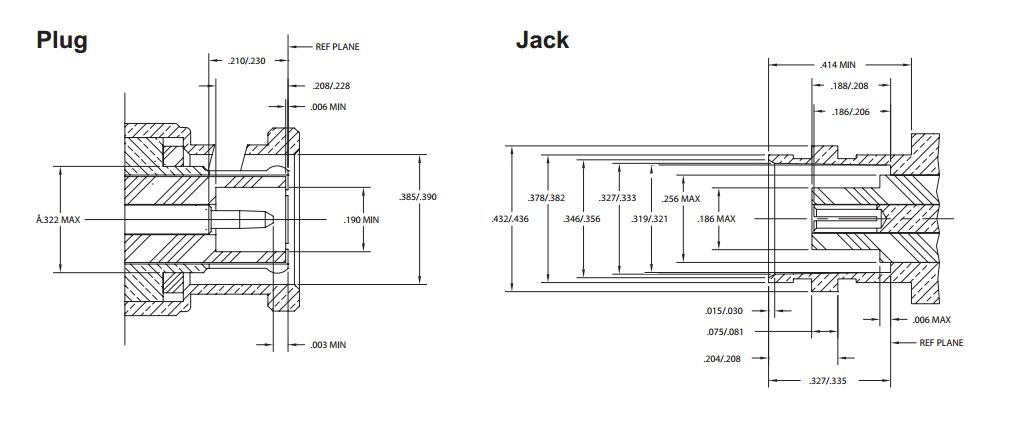

INTERFACE DIMENSIONS
