BNC Right Angle Female Coaxial Connector with Black Housing

Name: BNC Right Angle Female Coaxial Connector with Black Housing
Brand: all-electronics-online.com
SKU: 746909015
Availability: InStock
Rating: 4.3 (149 reviews)

Price:	US $ 0.5/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	dosin-801-0046
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Body Material:	Zinc Alloy
Impedence:	50ohm/75ohm
Orientation:	Right Angle/90 Degree
Plating:	Nickel or Gold
Factory Direct Sale:	Yes
OEM:	Weclome
Type:	PCB Coaxial Connector
Coupling Mechanism:	Double Bayonet Plug-in

Product Description

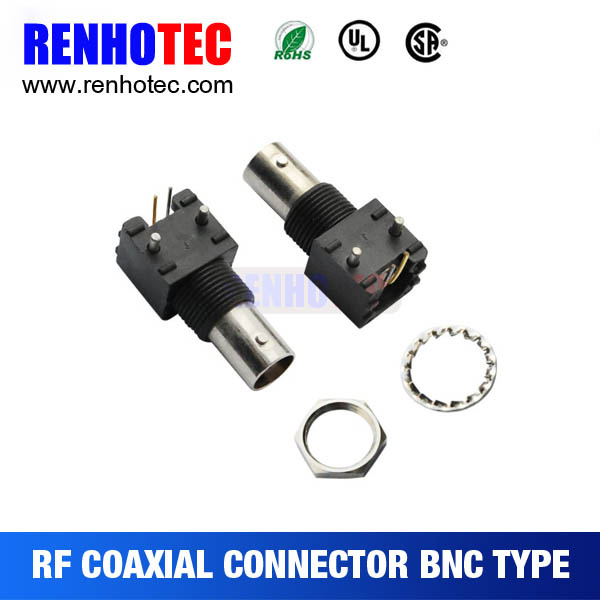

BNC Right Angle Female Coaxial Connector with Black Housing

The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. With a classic, dependable design, BNCs are suited to accommodate a large variety of RG and industry standard cables, in a variety of termination styles.

Major Technical Characteristics
Temperature Range	-5 degree to +155 degree (PE cable -40 degree to +85 degree )
Impendance	50ohm, 75ohm
Frenquency Range	DC-4GHZ
Working Voltage	500V r.m.s at sea level
Workstandinging Voltage	1500V r.m.s at sea level
Center Contact Resistance	≤1.5Mohm
Outer Contact Resistance	≤1Mohm
Insulation Resistance	≥5000Mohm
Center conductor Retention Force	≤0.57N
Insertion Loss	≤0.20dB/3GHz
Voltagge Standing Wave Ratio :
Straight	≤1.22/3GHz
Right Angle	≤1.30/3GHz
Dutability (Mating)	≤500(cycles)
Materials
Body	Brass.........................Nickel
Insulator	Delrin.........................Natural
Contact Pin	Brass.........................Gold
Ferrule	Copper......................Nickel
Suitable cables
RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US)

Renhotec offers many types of SMA connectors. PCB mount SMA female connector/ SMA male cable connector/Flange chassis mountSMA connectors/ Straight right angle SMA plug jack connector/ Crimp type SMA connector,etc. If you can't find the exact model you need, please don't hesitate to contact us!
