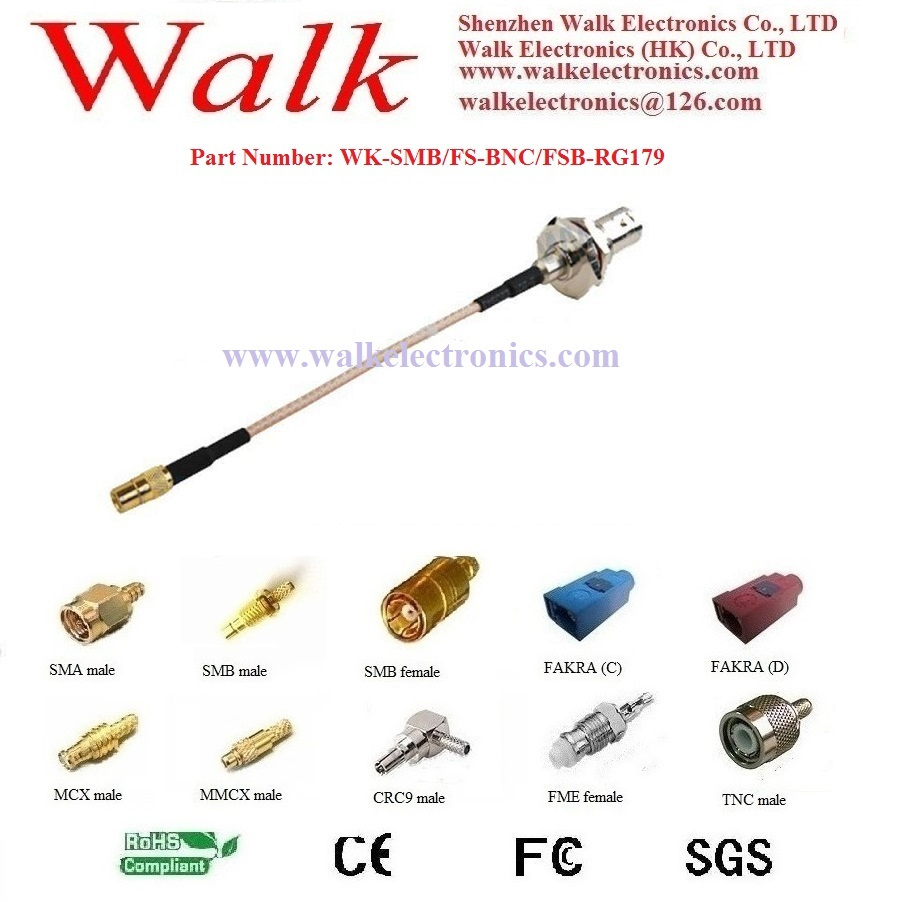

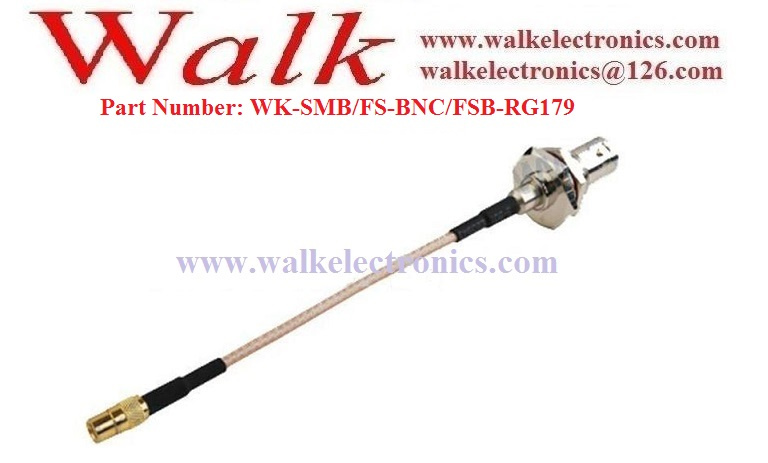

BNC SMB RF Cable Assembly: BNC Female Straight Bulkhead to SMB Female Straight with Rg179 Cable, SMB BNC Connector Cable

Name: BNC SMB RF Cable Assembly: BNC Female Straight Bulkhead to SMB Female Straight with Rg179 Cable, SMB BNC Connector Cable
Brand: all-electronics-online.com
SKU: 730629692
Availability: InStock
Rating: 4.7 (149 reviews)

Price:	US $ 2.8-3.3/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WK-SMB/FS-BNC/FSB-RG179
Connector1:	BNC Female Straight Bulkhead
Connector2:	SMB Female Straight
Application:	RF Cable
Conductor Material:	Copper
Certification:	RoHS
Cover Material:	FEP
Type:	Coxial Cable

Product Description

RF cable assembly/Jumper/Connector cable/Interface Cable Specifications:

Part Number: WK-SMB/FS-BNC/FSB-RG179
Specification
Impedance	75 ohm
Connector 1	BNC female straight bulkhead
Connector 2	SMB female straight
Cable type	RG179
Cable length	250mm
Frequency range	DC/3GHz
Voltage withstand	1000V maximum
Jacket spark voltage	2000Vrms
Other connectors	BNC, SMB, FME, MCX, MMCX, CRC9, TS9, TNC, etc
Other Cable type	RG316, RG174, RG178, LMR100, LMR200, RG58, etc
Other Cable length	200mm, 500mm, 100cm, 200cm or others

GPS antenna, GPS glonass antenna, GSM antenna, GSM 3G antenna, 4G lte antenna, WiFi antenna, combo antenna, RF cable assembly and RF connector manufacturer.
