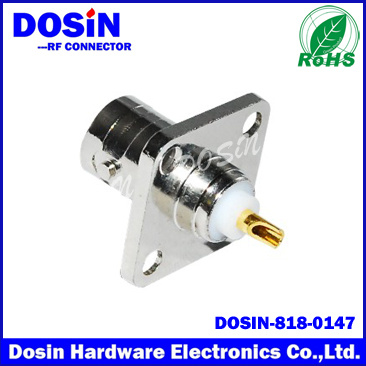

| Prod Model: |
DOSIN-801-0147 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Impedence: |
50ohm/75ohm |
| Orientation: |
Straight |
| Flange: |
4 Hole Square Flange |
| Plating: |
Silver or as Request |
| Factory Direct Sale: |
Yes |
| OEM: |
Weclome |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Double Bayonet Plug-in |
Product Description
BNC series are one kind of cards of thing the mouth join the radio frequency coaxial connection device. It joins rapidly, keeps in touch with the characteristic such as being reliable, applys to the radio equipment and electron tube instrument field and joins the coaxial cable of the radio frequency extensively.
Specifications:
Impedance: 50Ω , 75 Ω
Frequency Range: 0-4 GHz with low reflection
Voltage Rating: 500 volts peak
Dielectric Withstanding Voltage: 1, 500 volts rms
VSWRM39012 straight connectors: 1.3 max 0-4 GHz
M39012 right angle connectors: 1.35 max 0-4 GHz
MIL-C-39012 Contact ResistanceCenter contact: 1.5 mΩ ; Outer contact: 0.2 mΩ
MIL-C-39012 Insulation Resistance5, 000 MΩ
MIL-C 39012 Braid to Body0.1 milliohm
MIL-C-39012 RF Leakage-55 dB min at 3 GHz
MIL-C-39012 Insertion Loss0.2 dB min at 3 GHz
Materials:
Female Contact: Beryllium copper or phosphorous bronze, silver or gold-plated
Other Metal Parts: Brass, nickel finish; M39012 is silver finish
InsulatorTFE, copolymer of styrene, glass-TFE (hermetically sealed)
Crimp Ferrule: Copper/brass
Quality: Quality is the most important thing in our company. We use only the best quality(original) components to ensure the standard of our product range is of the highest caliber. All products we sold out are strictly selected and tested by our QC department.
Warranty: We provide comprehensive after-sales service, including quality service, guidance services, We focus on customer needs in every detail. Please contact us if you need our detail warranty term.
Payment: We accept payment via TT, Western Union, Paypal and so on.
Shipping: We offer as many shipping options as possible. Including DHL, UPS. TNT, Fedex and EMS.
Renhotec offers many types of BNC connectors. PCB mount BNC female connector/ BNC male cable connector/Flange chassis mount BNC connectors/ Straight right angle BNC connector/ Crimp solder compression BNC connector,etc. If you can't find the exact model you need, please don't hesitate to contact us!
