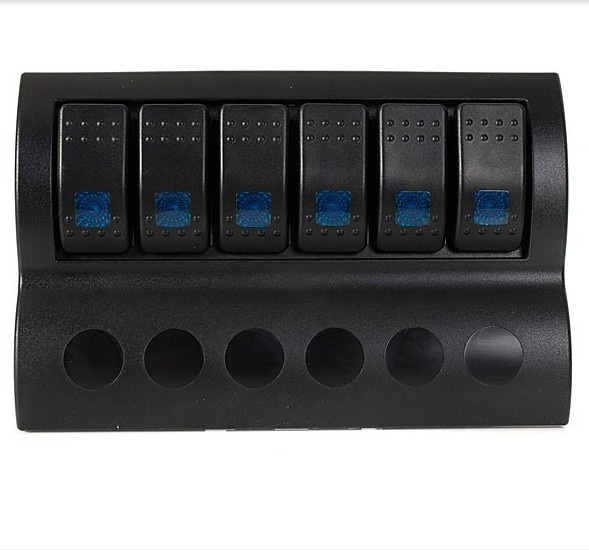

Boat 6 Gang Rocker Circuit Breaker Switch Panel with LED Indicator

Prod Model:	MY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
DC:	12V/20A, 24V/10A
Pin:	3 Pins
Material:	ABS Plastic Panel
Panel Cutout Dimesion:	36.8*21mm
Feature:	Waterproof Switch
Hxwxd:	42X24X40mm
Rating Ampere:	20A
Max. Voltage:	24V
Usage:	Digital Products
Standard:	Standard
Lamp:	With Lamp
Color:	Black
Certification:	CE
Condition:	New

Product Description

Features:

Good design, perfect for your machine
With rubber seal-cap to keep it water-tight,best for marine
Overload protection
Splash-proof,anti-corrosion
Easy to install,can be installed horizontally or vertically

Specification:

Material: ABS
Color: Black
LED color: blue / Red
Quantity: 1 PC
Dimension: 18 x 12 x 8 cm / 7" x 4.7" x 3.1"(LxWxH)
Installation: Pre-wired
Switches Available: 6 Gang
Amp Rating per circuit: 15amp Max
Rocker Switch: 6
Rating: DC 12V 20A,24V  10A
Dielectric Strength: AC 1500V 1minute
Breaker: 6 (5A x 2;10A x 2;15A x 2)
Loop Circuit: ON-OFF
Switch System: Water-resistant enclosed  Rocker switch
Operating Temperature: -25degree to 80degree
Electrical Life: 10000 make and break cycles  at full load
IP Rating: IP68

Package Included:

1 X 6 Gang LED Rocker Switch Panel
1 X pre-printed labels
6 X screws
