Ocean Controls Limited >> Boiler Controller Basic Room Thermostat (S2301)

Boiler Controller Basic Room Thermostat (S2301)

Boiler Controller Basic Room Thermostat (S2301)
Price: US $ 12/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: S2301
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

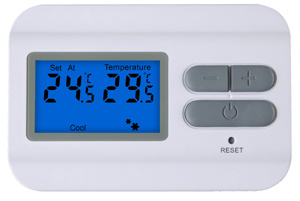

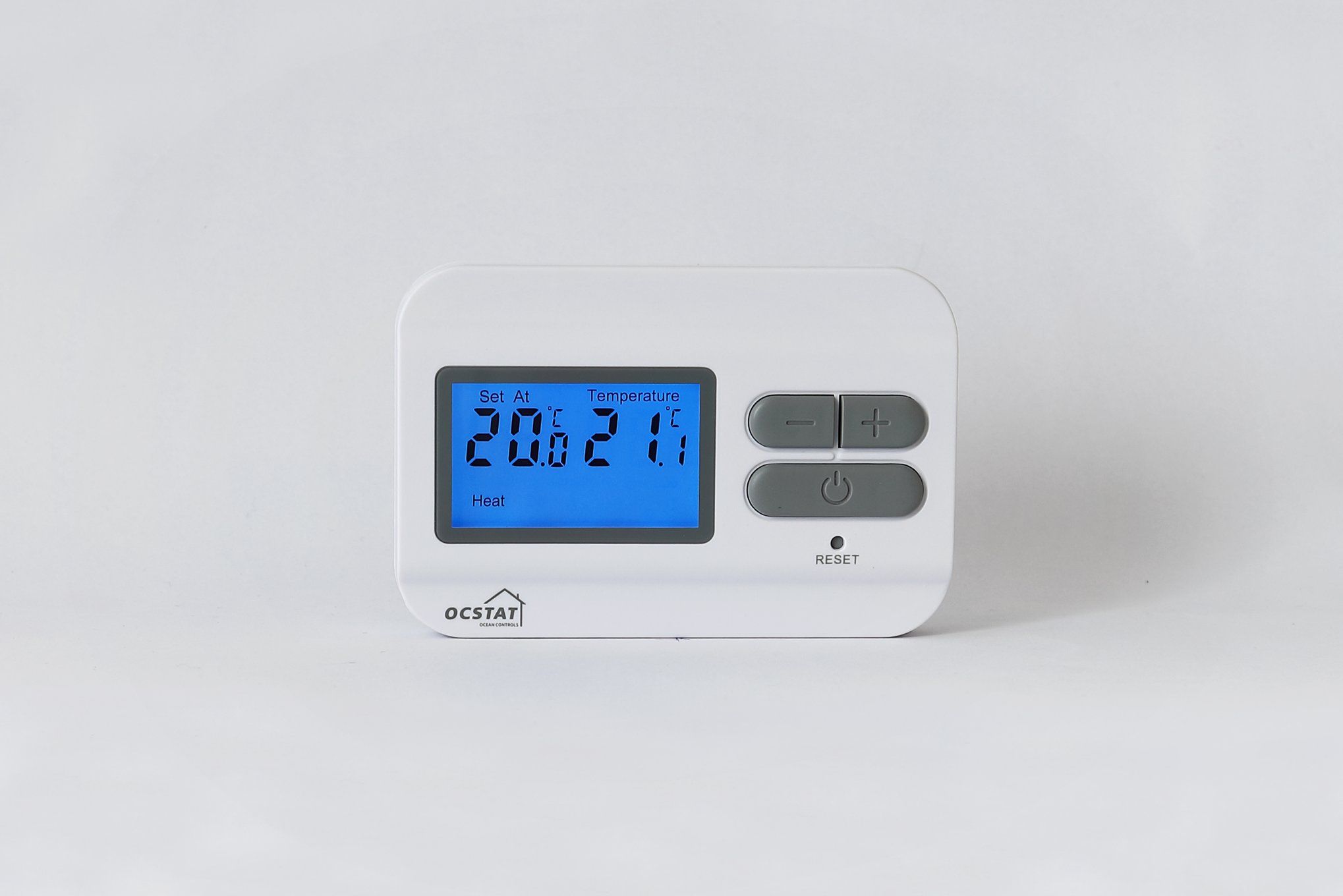

Non-programmable Basic Room Thermostat S2301

Company Advantages:

1. Powerful engineering team with 10 years experience in thermostat field
2. OEM / ODM service provided with short lead time
3. Dust-free & anti-static assembling plant
4. Up to global standard quality management system
5. Competitive price based on global famous brand components used


Features:
Large LCD display
Blue backlight
HEAT (Heating) / COOL (Cooling) / OFF (Frost Protection)
Wall mount
ON/OFF switch
Room Temperature Calibration adjustment (in -3~+3)
Bat-low indicator
Battery power supply

Specification:

Model No.:

S2301

Switchable Voltage:

24 V AC / DC,250 V AC; 50 Hz

Switchable Current:

6 A (2 A inductive load)

Programmability:

Non-Programmable

Temperature Range (°C):

0°C-40°C in 0.1°C

Control Temp.Range (°C):

5°C-35°C in 0.5°C

Temp.Meas.Accuracy:

±1°C (at 20°C)

Defrosting Temperature:

+7°C

Power Method:

2 x AAA 1.5V Lithium batteries

Dimensions:

118 x 80 x 26 mm








Ocean Controls Limited was founded by an industrial engineer with 10 years experience in the design and manufacturer of top-end electronic room thermostats.

We provide OEM/ODM services to worldwide customers, including manufacturing, design, engineering and tooling.

With many years of experience, our products feature unrivalled quality, reliability and durability. We export our products all over the world, especially to European and American markets. Currently our main products includ: Non-programmable/programmable thermostats, dial/push button/touchscreen thermostats, wired and wireless thermostats, we can also make timer, immersion/capillary thermostat and other related heating system control parts as per the customer's request. The products meet CE, R&TTE, FCC, UL and CSA approved quality standards.

Our factory has three sets of SMT, 10 sets of injection molding machine and advanced moulding equipments, Monthly capacity is more than 50, 000 PCS, and this can be expanded according to customer requirement.

We have a strong R&D team with more than 10 years experience in the thermostat field, They are seasoned in the design, develop and testing of electronic thermostats, HVAC controller and accessories. In addition, we have broad experience in RF remote control products like remote wireless thermostats. Based on the above, we can design/develop new models for you upon your technical specifications or samples.

As a company, we strive to excel in the quality of products we sell, the service we provide and the support we give. We are committed to continuous improvement and on building win-win relationships with our partners.
