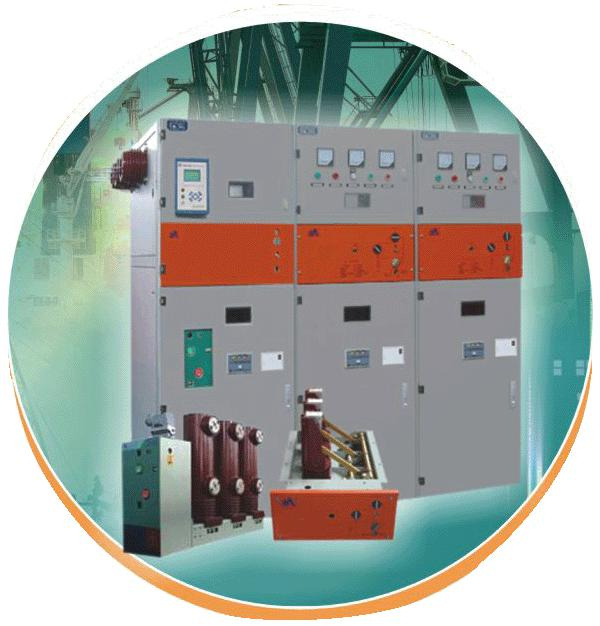

Box Fix Type Metal-Clad AC Ring Main Unit Switchgear
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
HXGT8-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Distribution Metering Box |
| Structure: |
Fixed Board |
Product Description
HXGT8 series RMU are new product in order to satisfy construction and transformation needs of city net and rural net, use the good qualities of other RMU and counteract its own weaknesses, among them the bus room joined in FT8-12 vacuum load switch or FT8-12 ( FR ) vacuum load switch + fuse combination electrical equipment and the load switch room is separated by metal partition board, and the fixed box joined in VT2Atype vacuum breaker is used as circuit protection, it is a replenishment of RMU once wiring scheme.
HXGT8 series RMU is suitable in indoor distributed system of three-phase AC system 10kV rated voltage, 50Hz rated frequency, as the use of accepting and distributing electric energy.
The RMU bus room is separated into two rooms from cable room with the metal chassis of load switch, and need not insert one
Insulating barrier in isolating distance.
The vacuum distinguish arc room is putted in the insulation sleeve to prevent the dust from of surface of arc room going
Together and prevent to go out that the arc room receives the damage of unexpected outside force.
Each electrification parts of load switch is supported by equal insulation sleeve, therefore the structure is simple and compact.
The interlock is reliable and it is convenient to operate.
Possessing the hand moves and motor-driven operating function, and little operates energetically.
The RMU frame is distributed by applying aluminum zinc board, and the volume is wide 600 (700) and high 1750 and deep 900.
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
