Box Type Cl21X Meb Metallized Polyester Film Capacitor for Lighting

Name: Box Type Cl21X Meb Metallized Polyester Film Capacitor for Lighting
Brand: all-electronics-online.com
SKU: 805573395
Availability: InStock
Rating: 4.4 (72 reviews)

Price:	US $ 0.0157-0.0211/Piece
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CL21X MEB
Reference Standard:	GB/T 7332 (IEC 60384-2)
Climatic Category:	40/105/56
Rated Voltage:	63V 100V 160V 250V 400V 630V 1000V
Capacitance Tollerance:	±5% ±10% ±20%
Type:	Polyester Film Capacitor
Application:	General Purpose
Package Type:	Through Hole
Capacitance:	0.001UF~10.0UF
Tuning:	Polyester

Product Description

Product Description

Features

1. High reliability
2. Metallized polyester film, non-inductive wound construction
3. Plastic case(UL94 V-0) , Epoxy resin sealing

Typical Applications

1. By-passing, blocking, coupling, decoupling

2. Pulse, logic, timing, oscillator, circuits

3. Interference suppression in low voltage application

Specifications

Reference Standard: GB/T 7332(IEC 60384-2)

Climatic Category: 40/105/21

Rated Voltage : 100V,160V,250V,400V,630V

Capacitance Range: 0.001uf~10.0uf

Capacitance Tolerance: ±5%(J) , ±10%(K) , ±20%(M)

Voltage Proof : 1.6Ur(5s)

Dissipation Factor: ≤1.0% (at 1KHz) ≤1.5% (at 10KHz) ≤3.0% (at 100KHz)

Insulation Resistance: ≥90 000MΩ, Cr≤0.33uf

≥3 000s Cr>0.33uf (20ºC,100V,1 min)

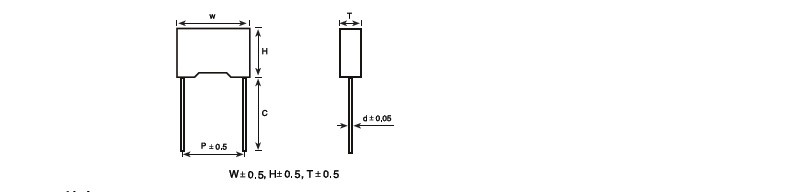

Outline Drawing

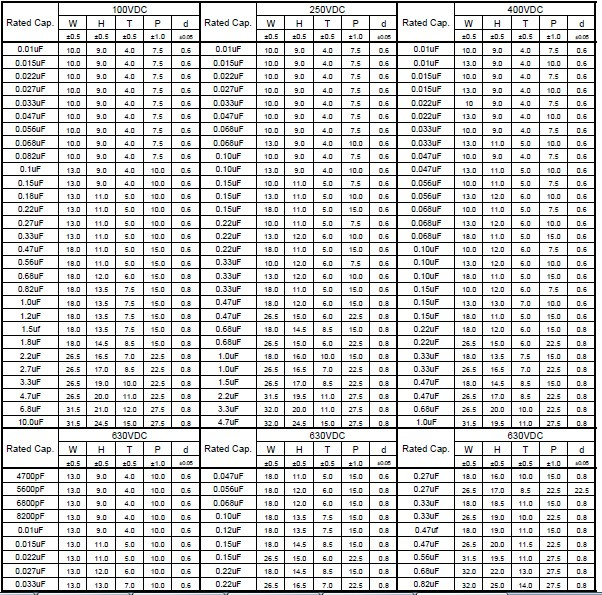

Dimension(mm)

Why do you choose Hongfarad capacitor?

High quality commitment

Competitive prices

Professional factory with more than 10 years experience

Fast lead time and best after service

Strong research center & strong sales

Quick response from sales representatives

One stop solution for all kind of customers

Company Information

Welcome to visit our factory!

Our Laboratory

FAQ

Question 1 : Are you a manufacturer or a trading company ?

Answer : We are a manufactuer specialized in metalized film capacitor with over 10 years experience.

Question 2 : How can I get some samples ?

Answer : We are honored to offer you samples for free, but the new clients are expected to pay the express cost, and the charge will be deducted from the payment for formal order.

Question 3 : Can your factory print my logo on the goods ?

Answer : Yes, we can print your own logo on the goods or the packing box.

Question 4 : What's your MOQ of this product?
Answer : MOQ is 3000 pcs, if less, please check with us firstly.

Question 5 : What's your delivery time?
Answer : It is about 2-3 weeks, if your goods are required urgently, please contact us firstly.

Our Capacitors can take 110C Heat

Hongfarad' capacitors can safely reach operating temperatures of up to 110C, which is 30C higher than the industry average. We ensure this durability by incorporating top-notch components from Germany, Japan and South Korea. These factors have attracted the repeat business of multinationals like Samsung, LG, GE, etc.

Offering Halogen-free and RoHS-compliant Products

All of our products are both halogen-free and compliant with the RoHS Directive, giving them added value in the eyes of environmentally conscious consumers. Our 30 QC staff members, each with over seven years of experience, ensure our defect rate remains close to zero percent. Our R&D team develops one to three new products every quarter to keep you up to speed with the latest industry innovations.

We Keep 2 Million Units In-stock

We deliver your finished orders in less than two weeks, ensuring you meet your time-to-market objectives. This speed is assured by the fact that we keep two million units in-stock at all times. It also results in sample delivery lead times as short as 24 hours. Contact us today.
