Box Type Fix Type AC Rmu Switchgear
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
XGT2(XGN)-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
Product Description

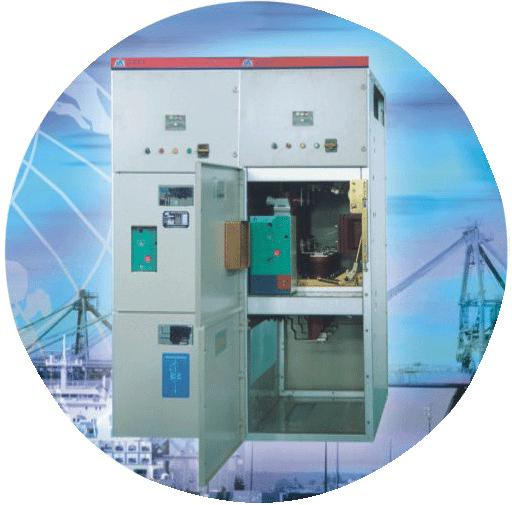

XGT2(XGN)-12 Box Type Fix Type AC RMU Switchgear (side install type) (following abbreviation switch ) is used in 10kV three-phase AC 50Hz indoor system as accepting and distributing electric energy, especially suitable in the occasion of frequently operates. The bus system is one bus. This switch fits the requirement of national standard GB39063~35kV's AC metal closed switch and IEC298, and possesses tightly the shutting meritability of "five guards "This switch apparatus has been surmounted old type fixed switchgear's defects such as the switch volume is huge and the maintenance is not convenience, etc. And has surmounted moving out type switchgear's defects of complicated handcart organization, once connection the protection operation organization is unreliable, etc. It is a new small model fix type seitchgearof researching and developing by self.
The main switch that this switchgear adopting is VT2A-12's mould side loading type vacuum circuit breaker developed and designed by self.
GT7(GN)-12 series designed by self is selected as upper and down disconnecting switch.
The switch process the merits of list:
Reliable electrically connection.
Convenient examined and repaired.
Installation of once cable can be accomplished before the cupboard.
Product can be installed by the wall.
Use the isolation switch and ground connection switch operation organization and interlock device of integrationization design, the operates and interlock is convenient and reliable.
Once component is vertial range.
The breaker room, bus room and cable room have leak pressure channel.
The frame is combined by applying aluminium zinc board,
It is the smallest volume in the fixed switch of double disconnection switch in the internal: Wide X deep X height = 750 X1100 X2100
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
